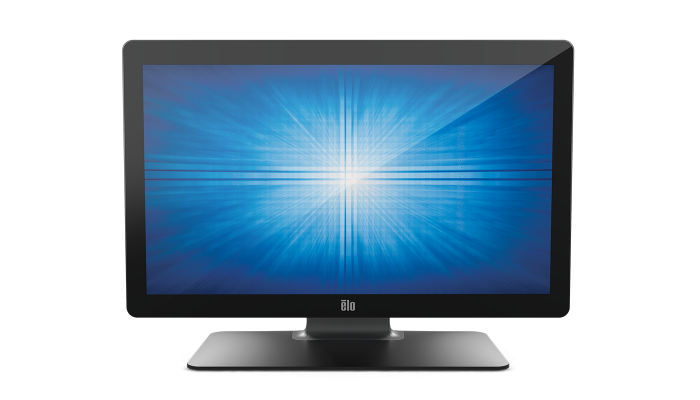

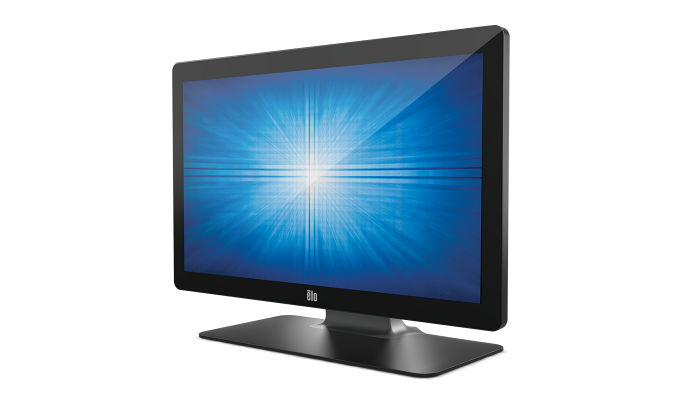

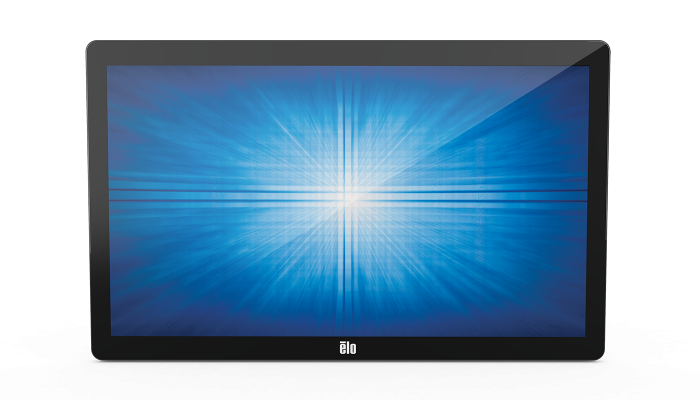

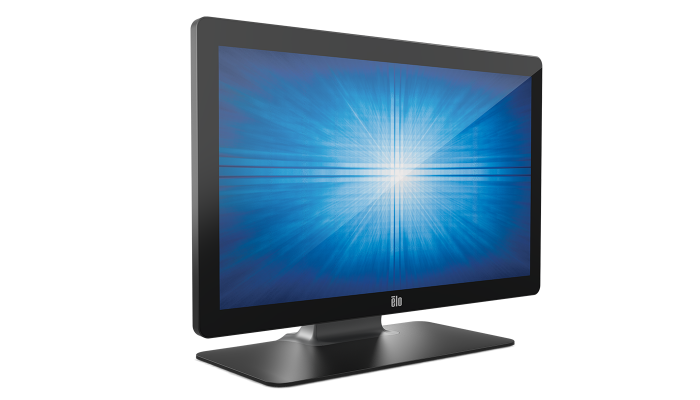

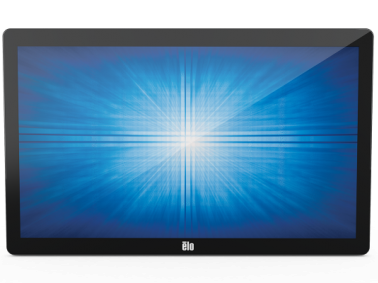

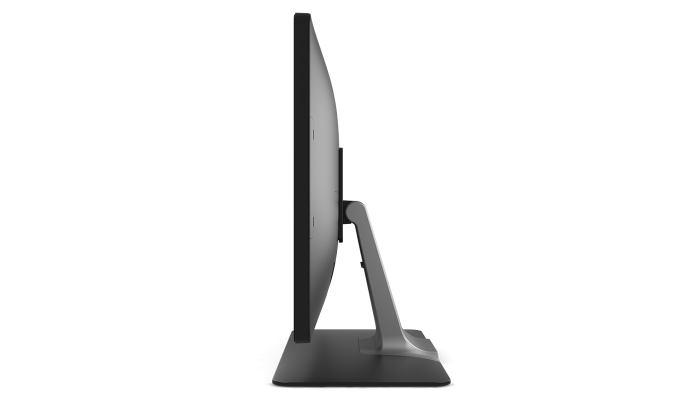

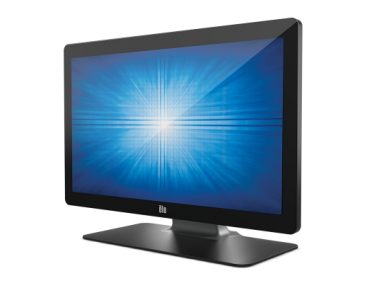

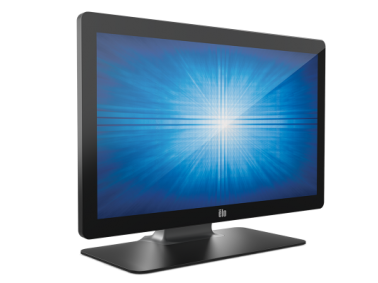

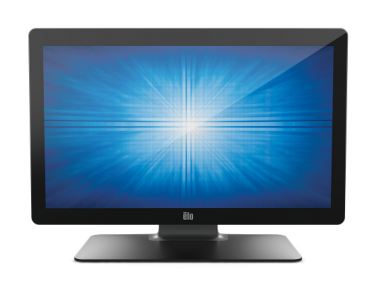

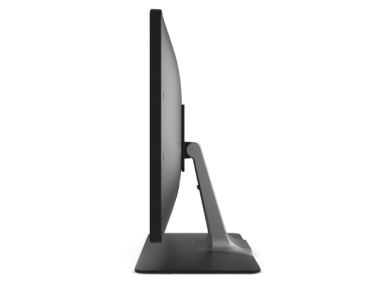

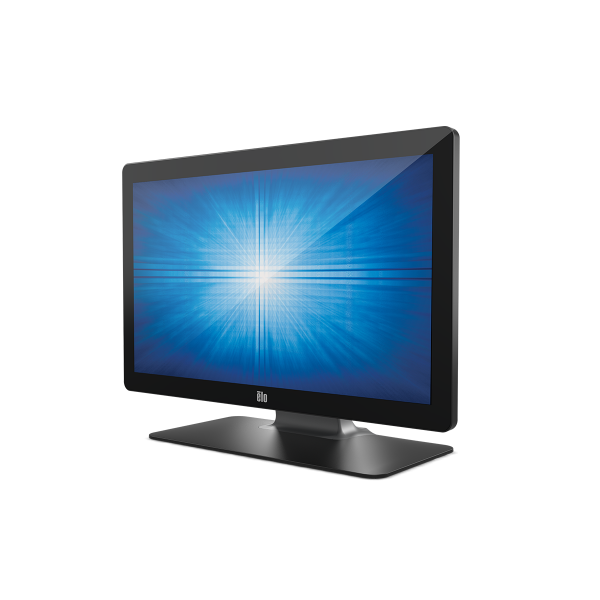

ELO 2202L

One of four Elo 02-series touchscreen monitors (1902L/2202L/2402L/2702L).

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link

Colour option
ELO 2202L
Recommended devices
ELO 1517L – rev. B
ELO 1517L – rev. B
ELO 1717L – rev. B
ELO 1717L – rev. B
HISENSE MD15VC
HISENSE MD15VC
Device type
Touchscreen monitor
Model
Elo Touch Solutions 2202L
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
21.5
Aspect ratio
16:9
Active area (mm)
467.06 x 267.78
Width (mm)
526.9
Height (mm)
383.8
Depth (mm)
193.4
Net weight
6.8 kg
Gross weight
10.8 kg
Resolution
1920 x 1080
Other supported resolutions
640 x 480, 640 x 400, 720 x 576, 720 x 400, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 960, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050, 1920 x 1080
Brightness (sole LCD panel)
250 cd/m2
Brightness (Pro. Cap)
240 cd/m2
Response time
25 ms
Viewing angle
horizontal: ±89°, vertical: ±89°
Contrast ratio
3000:1
Input video format
  • Analog
  • Digital
Video input - connector
VGA, HDMI
Touchscreen interface
USB
Power consumption (typical)
22.5W
Power supply - type
External
Power supply - voltage
12V
MTBF
50 000 hours (demonstrated)
OSD - OSD control type
Digital
OSD - buttons
Menu, Up, Down, Select
OSD - functions
Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
OSD - OSD public functions
Lockouts: OSD, Power
Assembly options - Assembly with the base
Mounting holes in the stand
Assembly options - Assembly without the base
VESA 100mm
Assembly options - available accessories
Tabletop stand, wall mount kit
Other features
Peripherals: magnetic stripe reader, NFC reader, 1D/2D barcode scanner, VFD display (2x20)
Warranty
36 months
Regulatory approvals and declarations
Canada CUL, IC, China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States FCC, UL, Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC
Multimedia functions
2 x 2W internal speakers
Sealability
  • Touchscreen sealed to bezel
  • Touchscreen sealed to LCD
