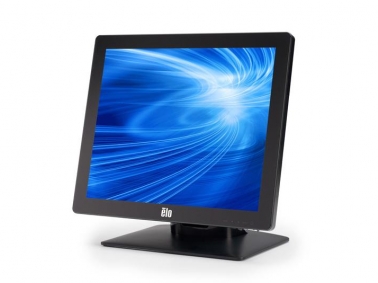

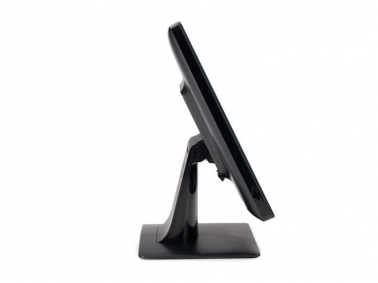

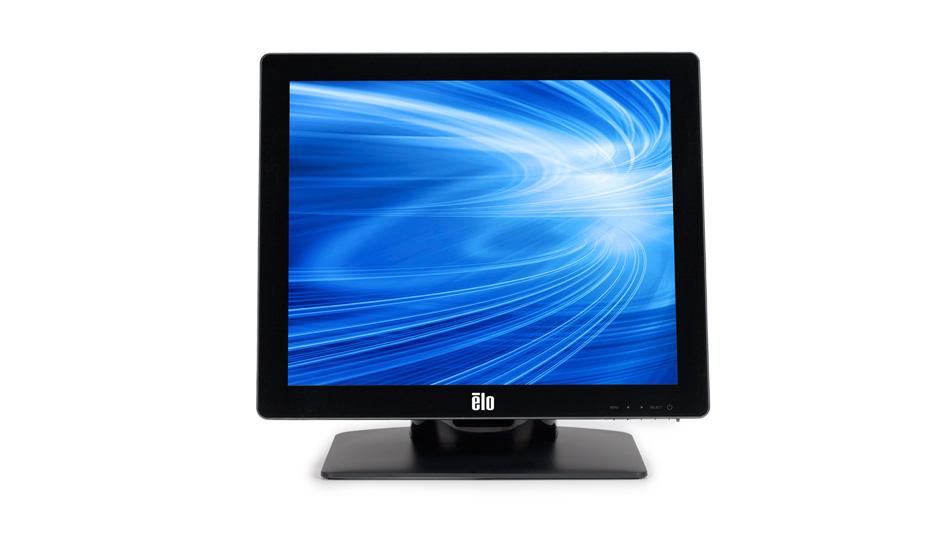

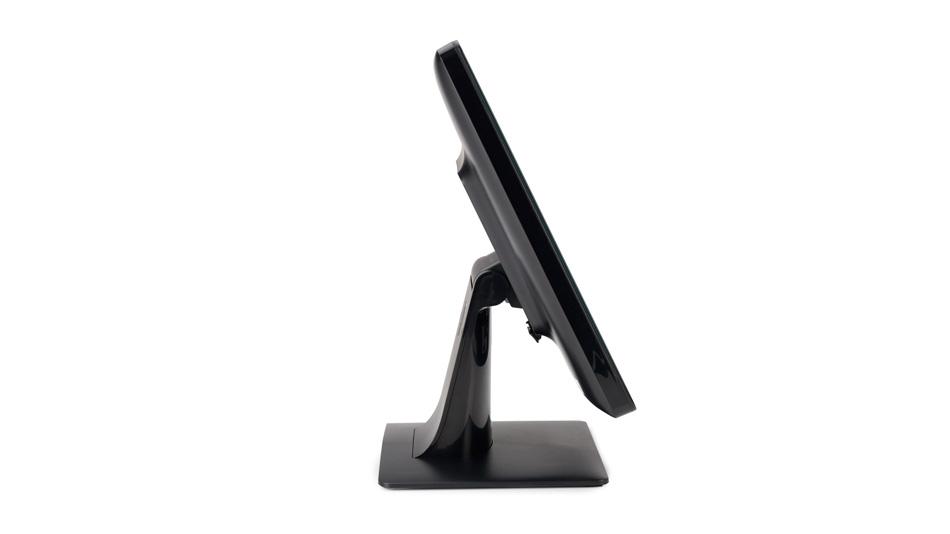

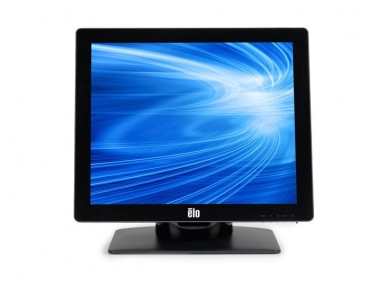

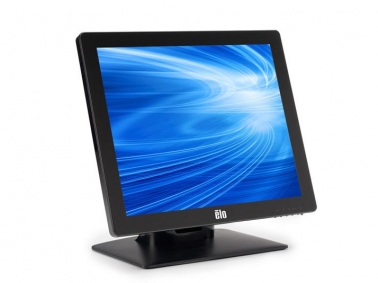

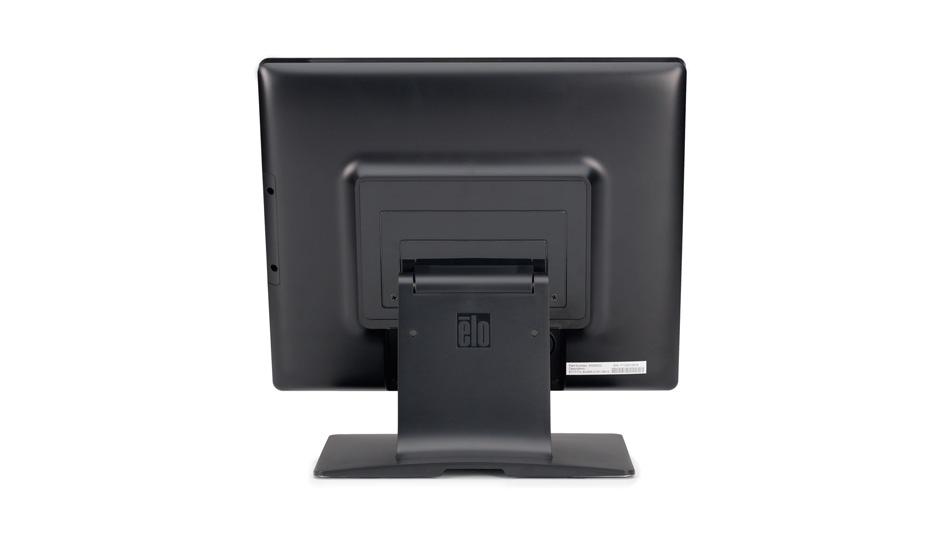

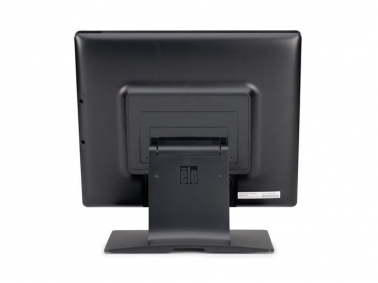

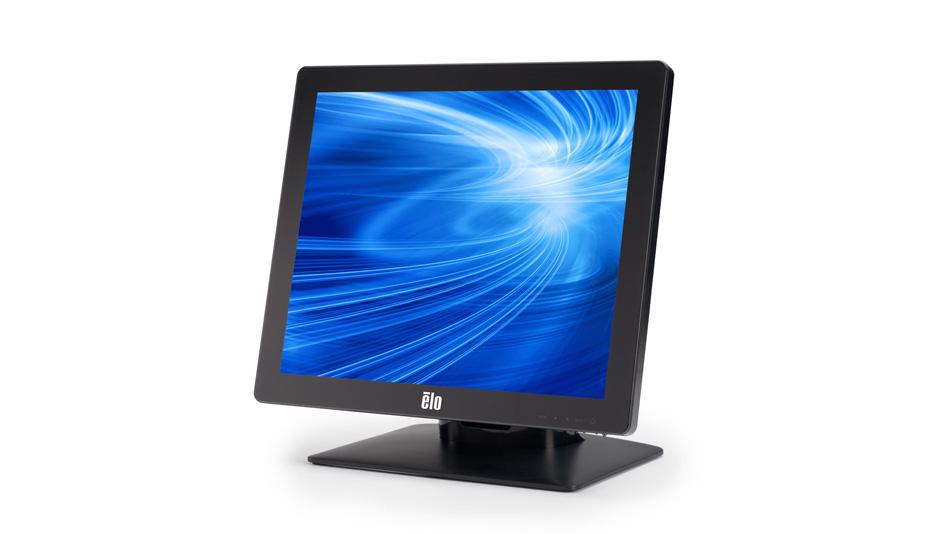

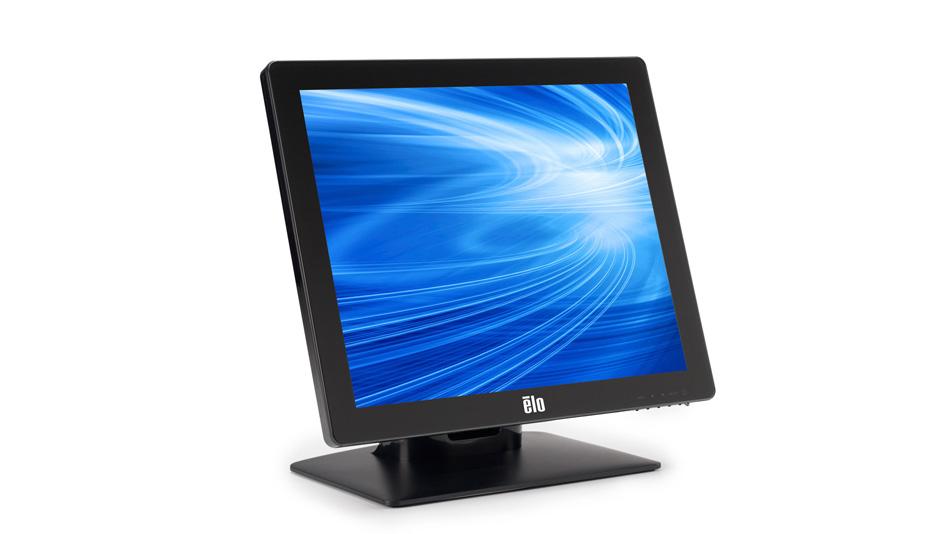

ELO 1717L – rev. B

One of two similar models of Elo touch monitors (1517L/1717L). It is equipped in 17-inch display with standard aspect ratio (5:4). The 1717L is well suited for 24/7 work in harsh environmental conditions.

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link

Colour option
ELO 1717L – rev. B
Recommended devices
ELO 1517L – rev. B
ELO 1517L – rev. B
HISENSE MD15VC
HISENSE MD15VC
HISENSE MD15V
HISENSE MD15V
Device type
Touchscreen monitor
Model
Elo Touch Solutions 1717L - rev. B

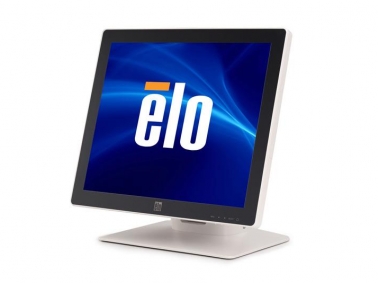

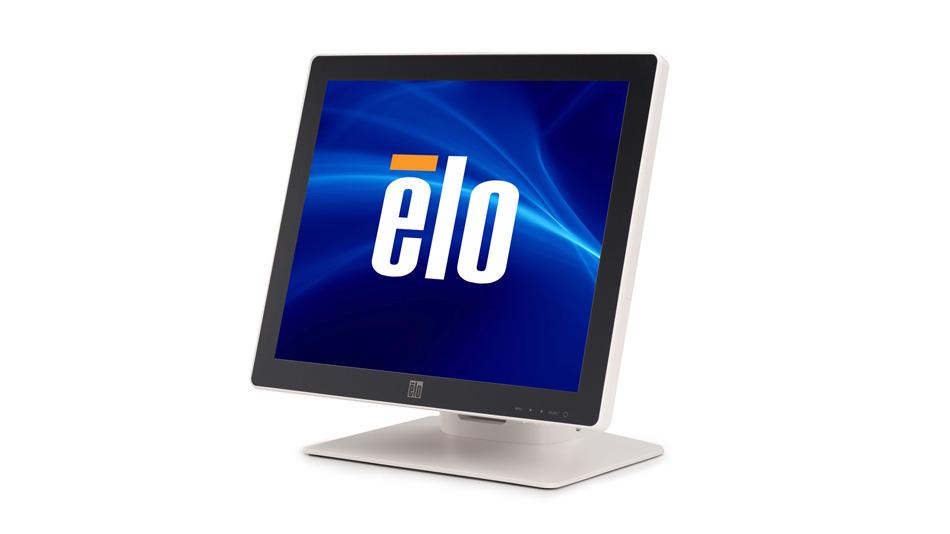

Colours
  • Black
  • White
Touch technologies
  • IntelliTouch
  • iTouch
  • AccuTouch
  • AccuTouch zero-bezel
  • Projected Capacitive
Diagonal size
17
Aspect ratio
5:4
Active area (mm)
337.92 x 270.34
Width (mm)
391.9
Height (mm)
361.6
Depth (mm)
215.4
Net weight
5.4 kg
Gross weight
8.3 kg
Resolution
1280 x 1024
Other supported resolutions
640 x 480; 720 x 400; 800 x 600; 1024 x 768
Brightness (sole LCD panel)
250 cd/m2
Brightness (IntelliTouch / iTouch)
225 cd/m2
Brightness (AccuTouch)
200 cd/m2
Brightness (Pro. Cap)
225 cd/m2
Response time
5 ms
Viewing angle
horizontal: ±85°, vertical: ±80°
Contrast ratio
1000:1
Input video format
Analog
Video input - connector
Mini D-Sub 15 Pin VGA
Touchscreen interface
USB, RS232
Power consumption (typical)
16W
Power supply - type
Internal
Power supply - voltage
240V
MTBF
50 000 hours (demonstrated)
OSD - OSD control type
Digital
OSD - buttons
Menu, Up, Down, Select
OSD - functions
Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
OSD - OSD public functions
Lockouts: OSD, Power
Assembly options - Assembly with the base
Mounting holes in the stand
Assembly options - Assembly without the base
VESA 75mm
Other features
Peripherals: magnetic stripe reader
Warranty
36 months
Regulatory approvals and declarations
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE, IMERC
Sealability
  • Touchscreen sealed to bezel
  • Touchscreen sealed to LCD
