Datalogic Gryphon GM4100-HC

The Datalogic Gryphon GM4100-HC is the wireless version of the Gryphon GD4100-HC scanner. 1D handheld linear imager barcode scanner is dedicated to work in healthcare undustry. It has a special plastic-rubber housing that facilitates disinfection, resistant to aggressive cleaning agents. The anti-bacterial surface used contains compounds that inhibit the growth of microorganisms.

Colour option
Datalogic Gryphon GM4100-HC

Gryphon GD4100-HC scanner has a wide scanning angle that allows you to read wider codes. An important advantage is also the way of notifying about the correct reading of the code. Through the green reading indicator (Green Spot technology), the user receives information about the correctly read code. This functionality is especially important in an environment where we cannot use sound signals. In addition, the scanner allows you to read codes from LCD screens and displays of mobile devices.

Thanks to the Datalogic's patented technology, Radio Star, Gryphon provides wireless communication within a range of up to 30 m from the base, increasing the user's work comfort and eliminating the restrictions associated with the use of cables.

The Batch Mode function allows you to save about 1200 codes in the RAM memory. The long-lasting lithium-ion battery allows for 33,000 scans when fully charged.

Gryphon GM4100-HC is the perfect solution for work in medical facilities, laboratories and pharmacy.

  • plastic-rubber housing for easy disinfection
  • antimicrobial surface containing compounds that inhibit the growth of microorganisms rozwój drobnoustrojów
  • 1D code reading
  • large reading range: 3 cm - 60 cm for typical 13 mil (0.33 mm) codes
  • wide codes reading
  • operating mode: manual, automatic
  • correct reading confirmation: sound, light ("Green Spot")
  • wireless radio communication - Star - with an operating range of up to 30m
  • point-to-point or point-to-multi point data transmission
  • Batch Mode function (storing approx. 1200 codes in the memory)
  • 50 000 scans on a full battery charge
  • multi-interface: (possibility of interchangeable use of USB, KBW, RS 232 interfaces by changing the cable)

Available options:

  • light grey-green housing

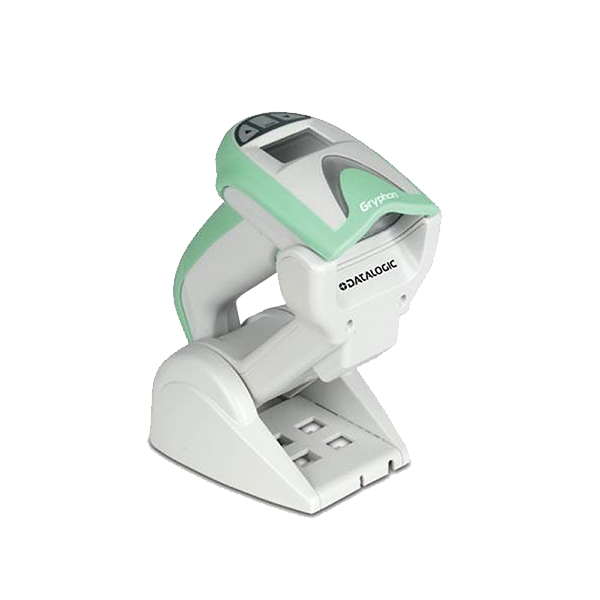

  • Optionally, the device is available in a version with a display and 3 buttons
  • interfaces: KBW/PS2, RS232, USB

Additional info:

  • configurable via Aladdin
  • available drivers: OPOS, USB-COM Driver, JavaPOS Driver
Reader type
  • cordless
  • line imager
Scanning template / number of scanning lines or area
1
Reading speed (number of scans / per second)
325 scans/s.
Minimum code's contrast
15%
Reading
Code read / other options
  • 1D
  • codes from LCD monitors, mobile device displays, etc.
Reading range for typical 13 mil UPC (0.33 mm) codes
3 – 60 cm
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple option
Signalling readout
  • sound
  • light
Aimer, green spot, frame aimer
Green Spot, crosshair + 4 dots
Use (motion increase)
low
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • pharmacies (+)
  • health care (medical facilities, laboratories) (+)
Physical features
Tightness class / industrial standard
IP52
Resistance / falls on concrete
1,5 m
Operational temperature (℃)
0℃ to +50℃
Dimensions (mm)
  • 181 x 71 x 100 mm (scanner)
  • 186 x 99 x 56 mm (base)
Weight (g)
  • 225 g (scanner)
  • 246 g (base)
Interfaces
USB, KBW/PS2, RS232
Multi-interface
yes
Wireless connection
Wireless range
Radio Star (30m)
Number of scans at full charge
50000
Memory - number of data stored
1200
Automatic Batch Mode option
yes
Inventory Batch Mode option
yes
Options available
Colour options
grey-green
Possible base / base option
base
Essential / unique features
  • fast reading of very wide codes
  • housing that is antibacterial and suitable for cleaning with chemicals used in healthcare
  • available version with a display (32x96 pixels) and a 3-key keyboard
  • possibility of connecting up to 16 scanners with one base
