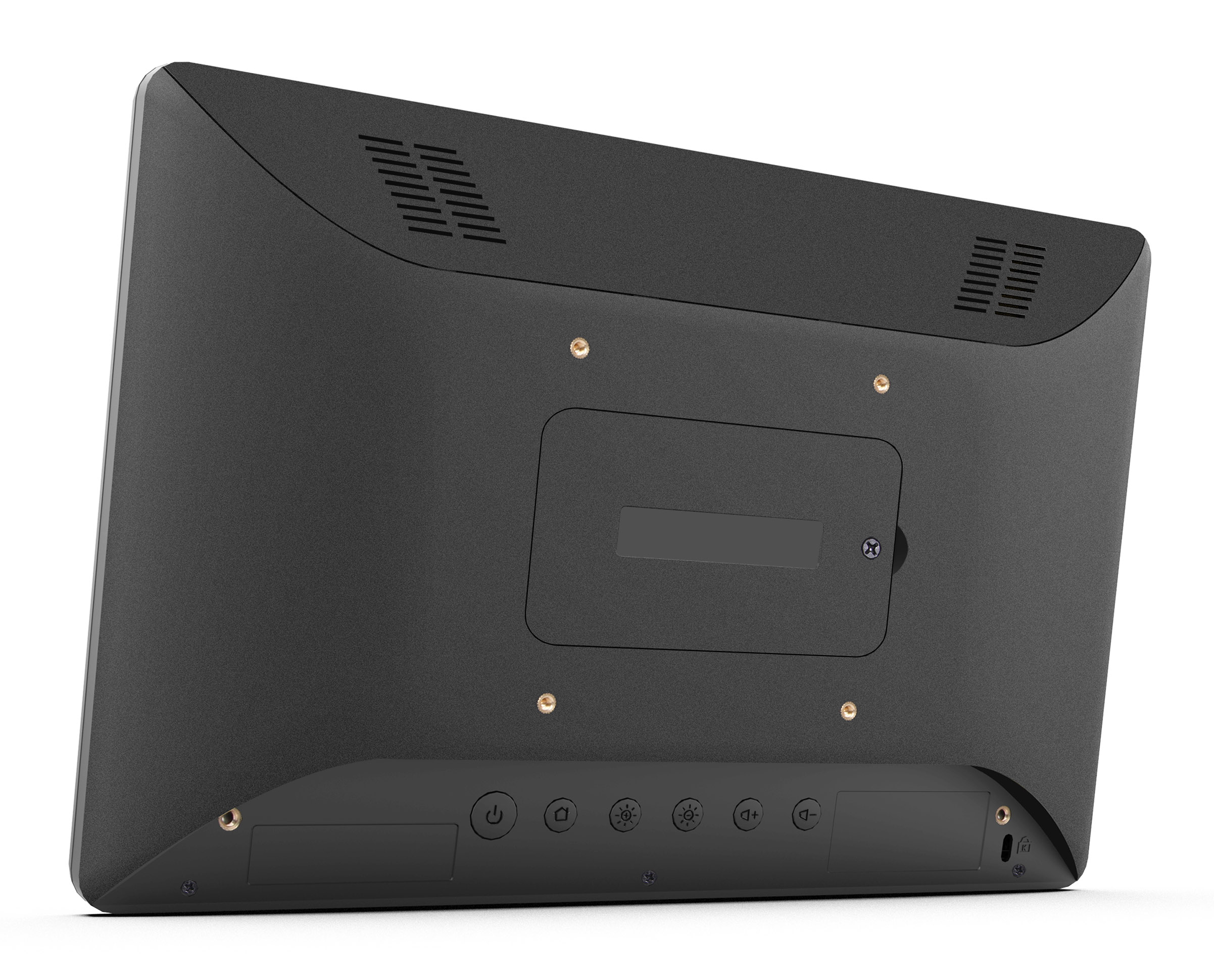

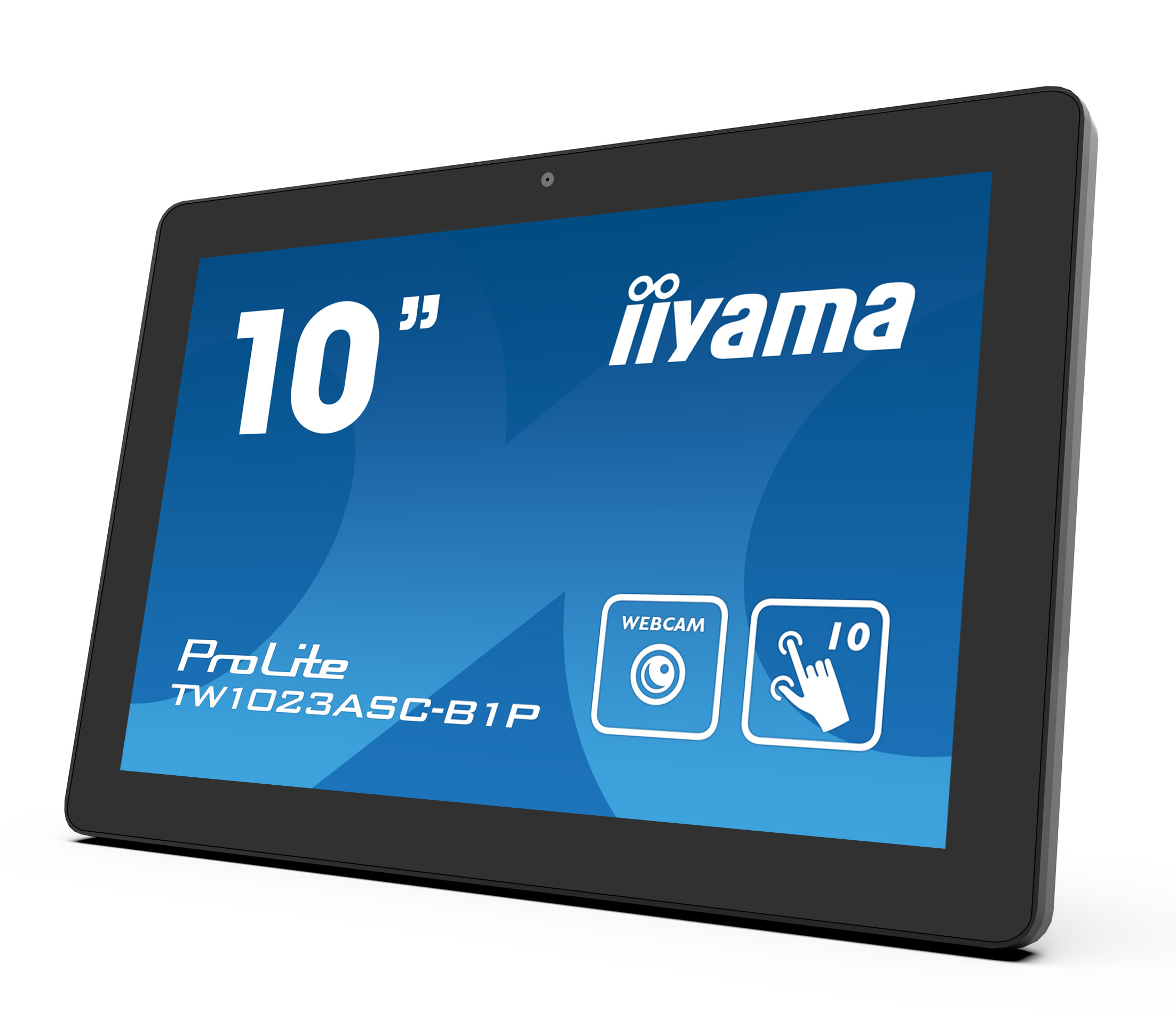

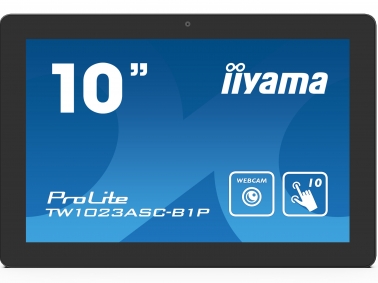

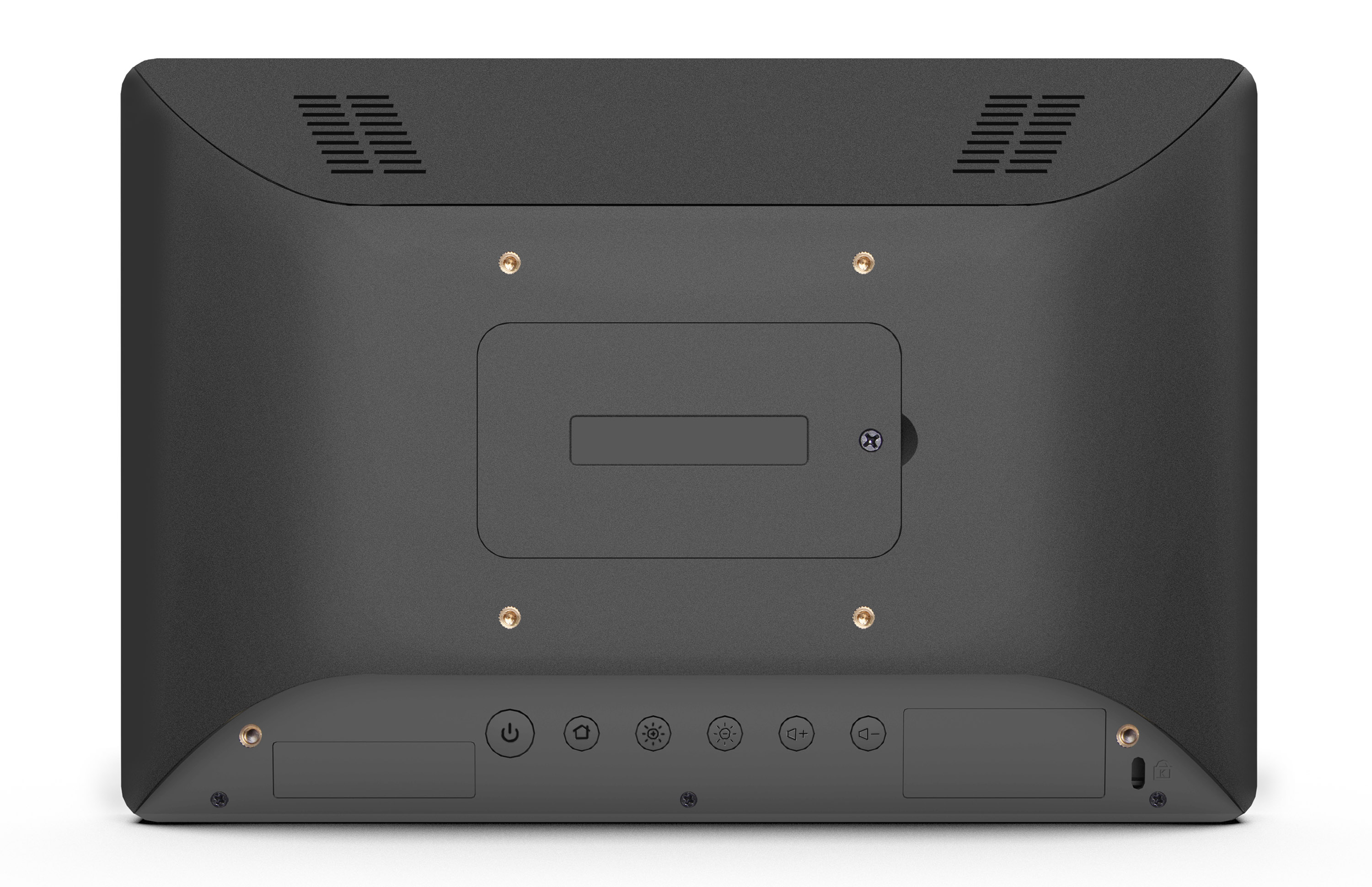

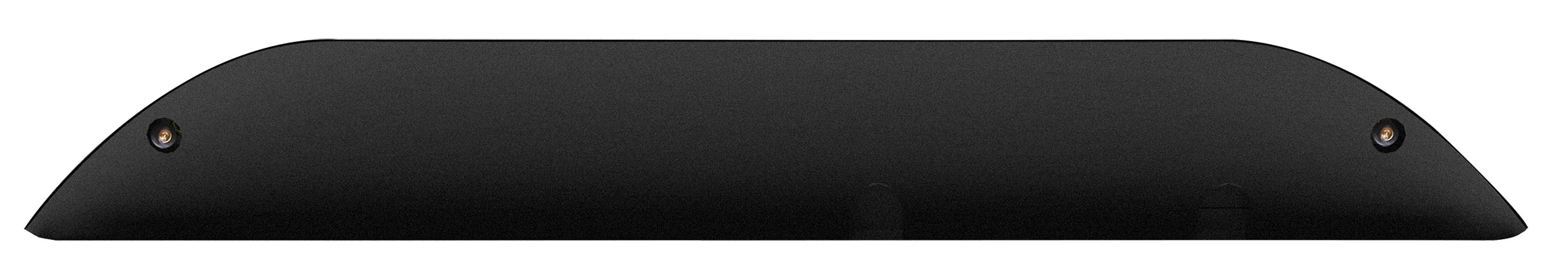

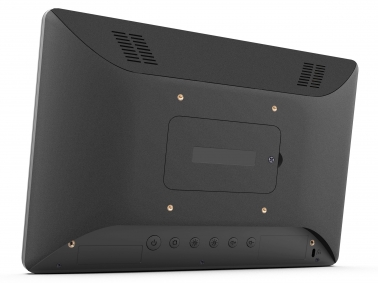

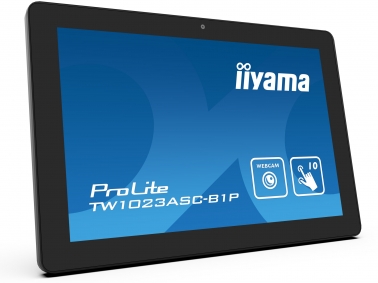

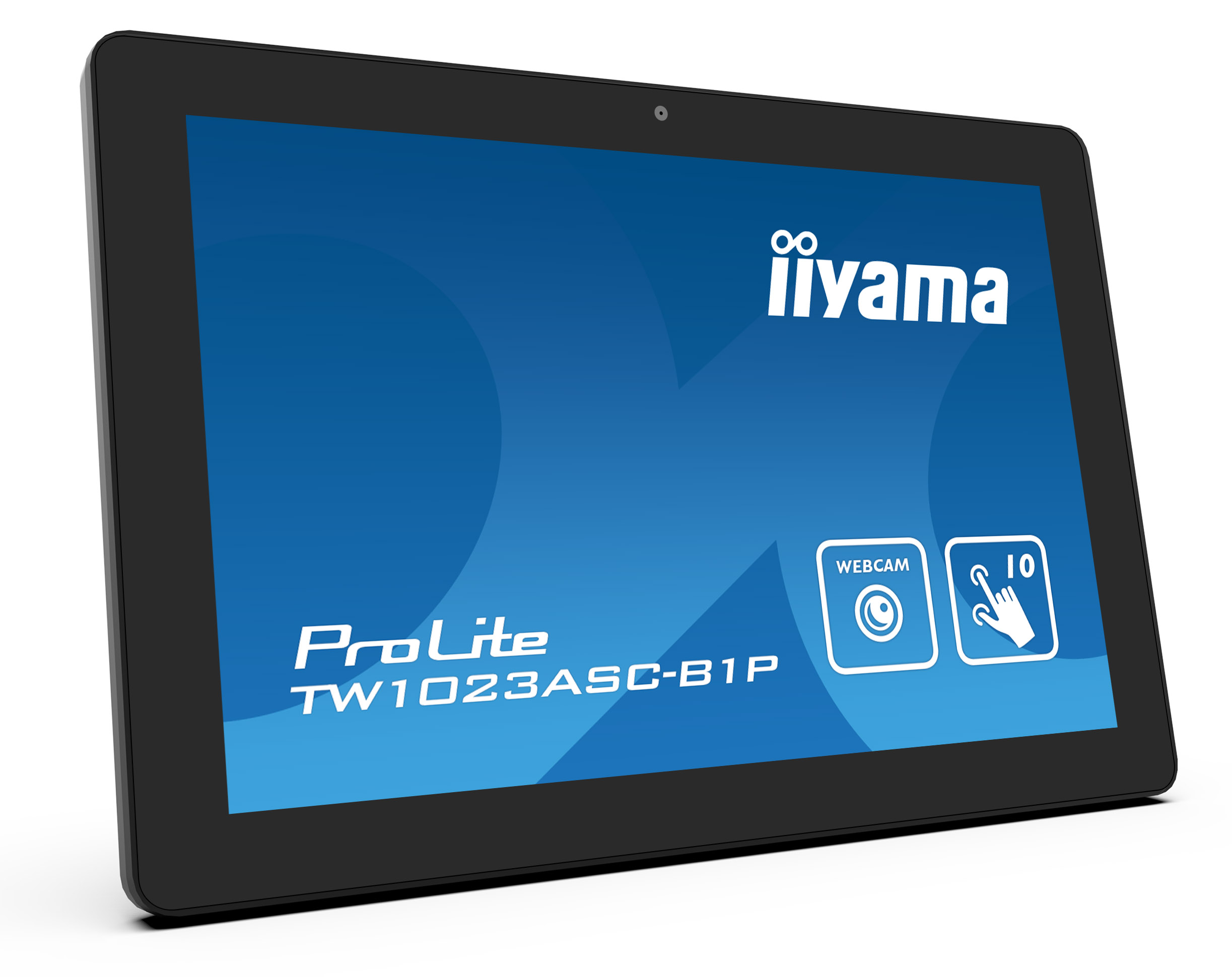

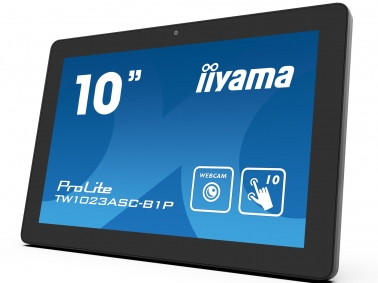

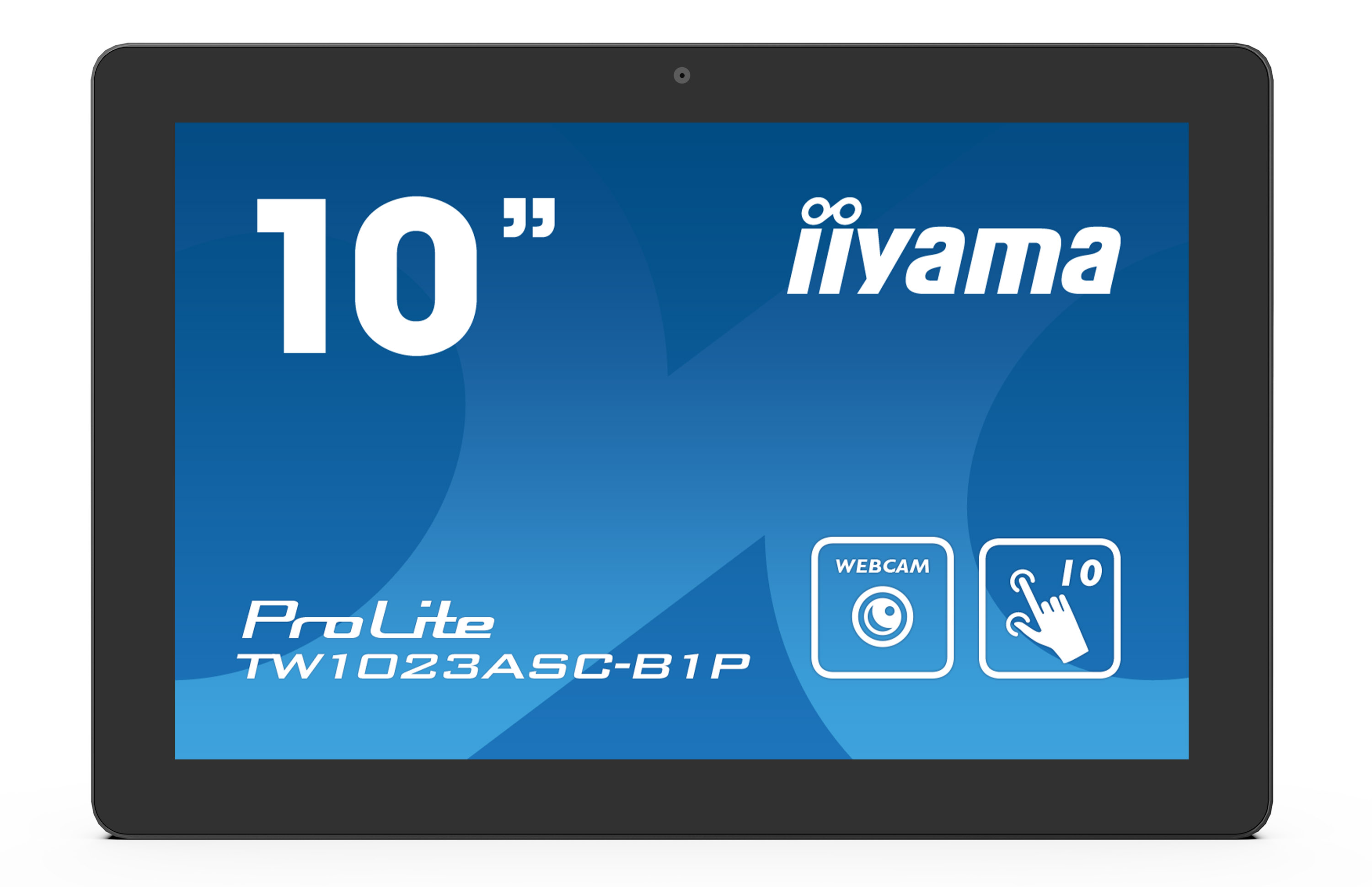

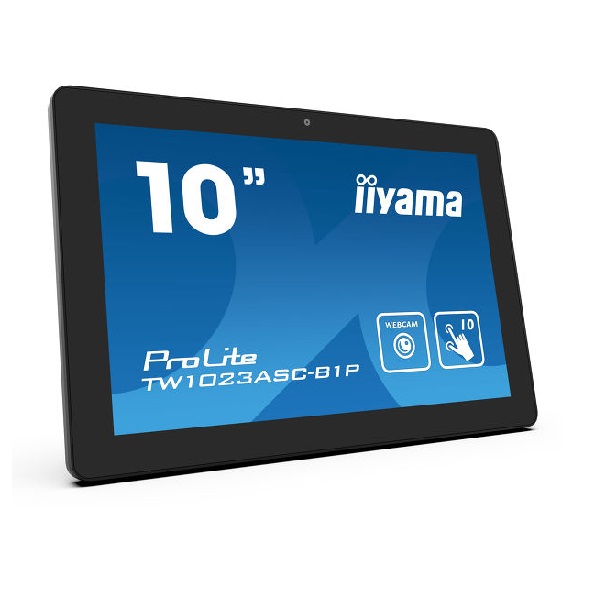

iiyama ProLite TW1023ASC-B1P

10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology

The ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.

The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless, interactive installation possibilities.

Colour option
iiyama ProLite TW1023ASC-B1P
Recommended devices
HISENSE HK560
HISENSE HK560
ELO 15E2 – rewizja D
ELO 15E2 – rewizja D
HISENSE HK950
HISENSE HK950
Device type
Touchscreen computer
Model
iiyama ProLite TW1023ASC-B1P
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
10.1"
Aspect ratio
16:10
Active area (mm)
216.6 x 135.
Width (mm)
255
Height (mm)
172
Depth (mm)
30.5
Net weight
0.8 kg
Gross weight
1.36 kg
Resolution
1280 x 800
Brightness (sole LCD panel)
450 cd/m²
Brightness (Pro. Cap)
385 cd/m²
Response time
25 ms
Viewing angle
horizontal: 80°, vertical: 80°
Contrast ratio
1000:1
Power consumption (typical)
7W
Power supply - type
External
Power supply - voltage
12V
Assembly options - Assembly without the base
VESA 75mm
Warranty
36 months
Regulatory approvals and declarations
CE, RoHS support, ErP, WEEE, REACH
Calculation platform
Processor
Rockchip RK3288, quad-core Cortex-A17
RAM
2GB DDR3
Storage
16GB eMMC

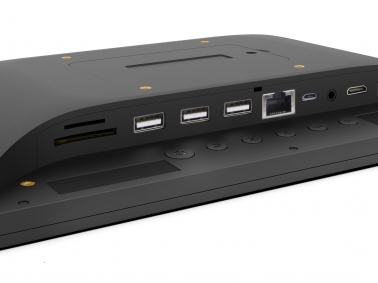

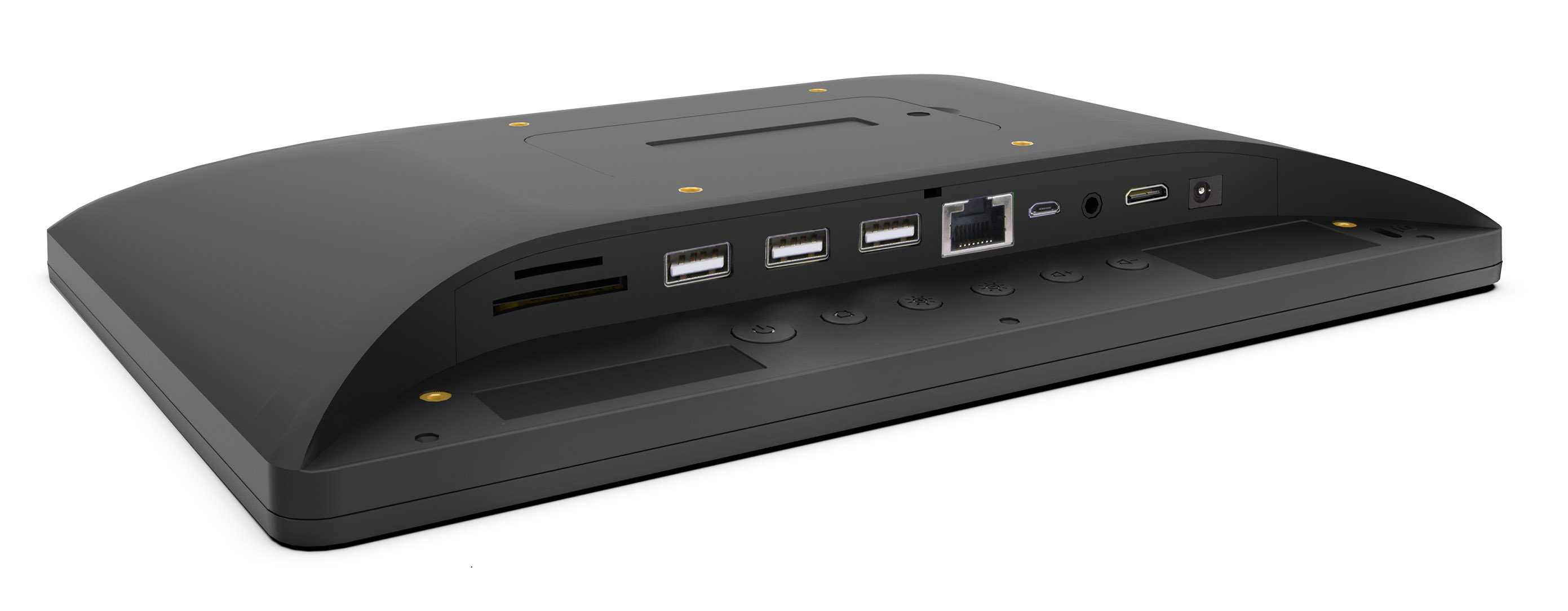

Communication interfaces
USB ports
1x 2.0, 1x microUSB OTG
Video output
HDMI
Other interfaces
1 x RJ-45 (PoE), WiFi, Bluetooth 4.0
Operating system
Available systems (preinstalled)
Android 8.1 (non-GMS)
