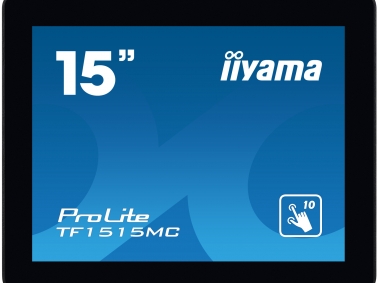

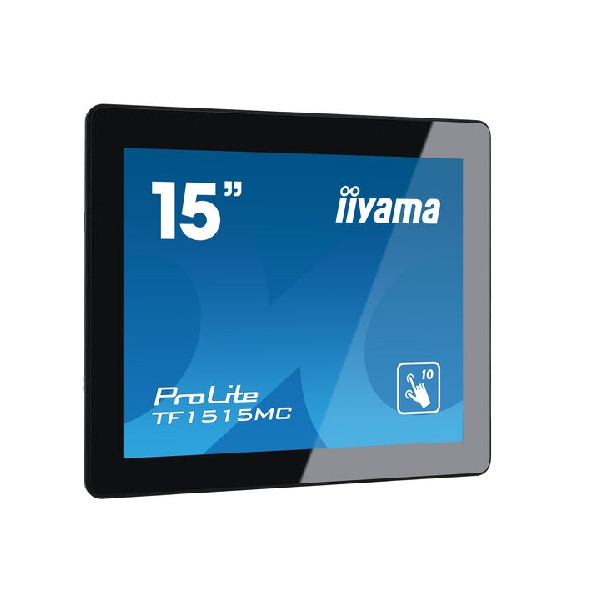

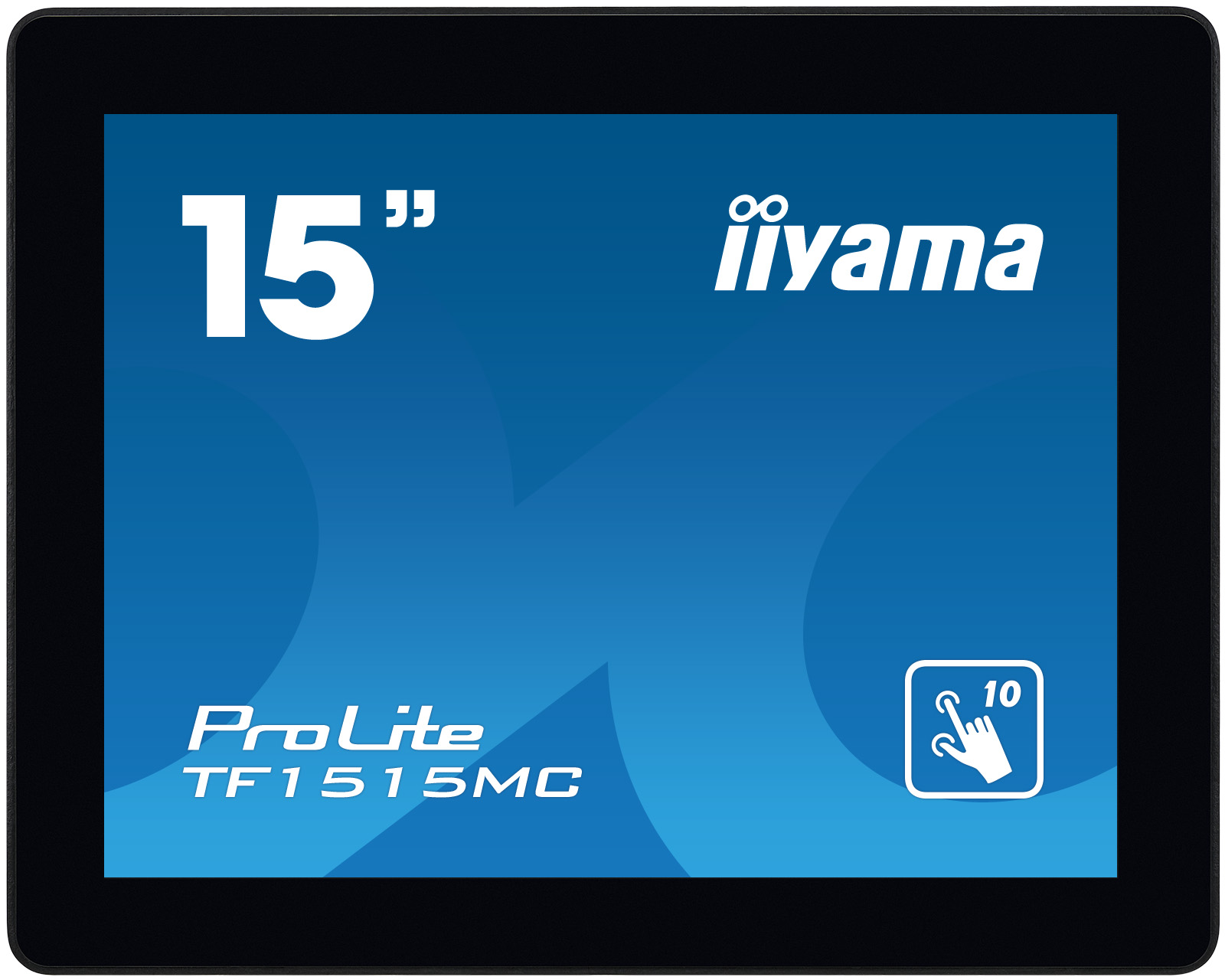

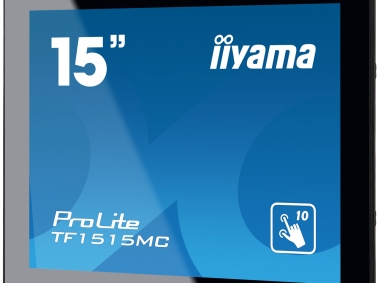

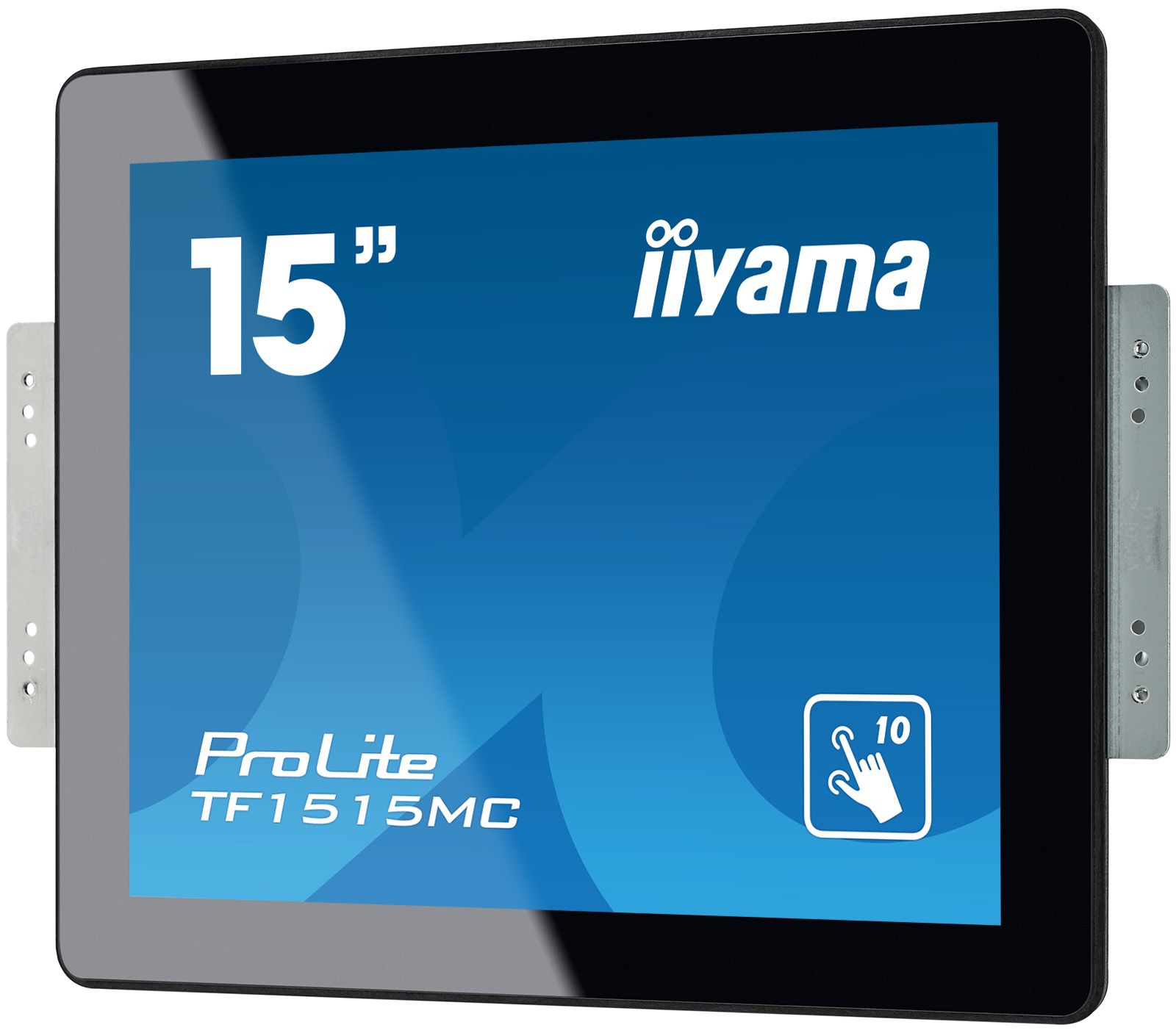

iiyama ProLite TF1515MC-B2

Open Frame PCAP 10 point touch screen equipped with touch through glass function

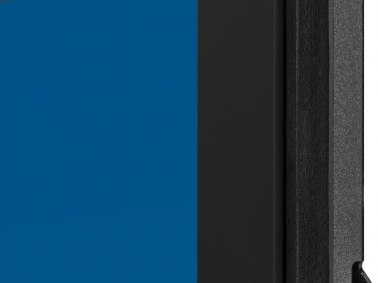

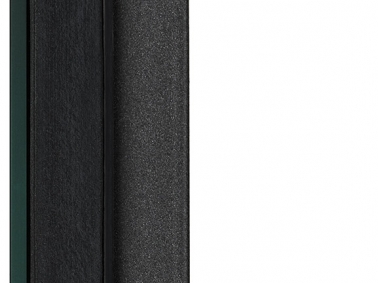

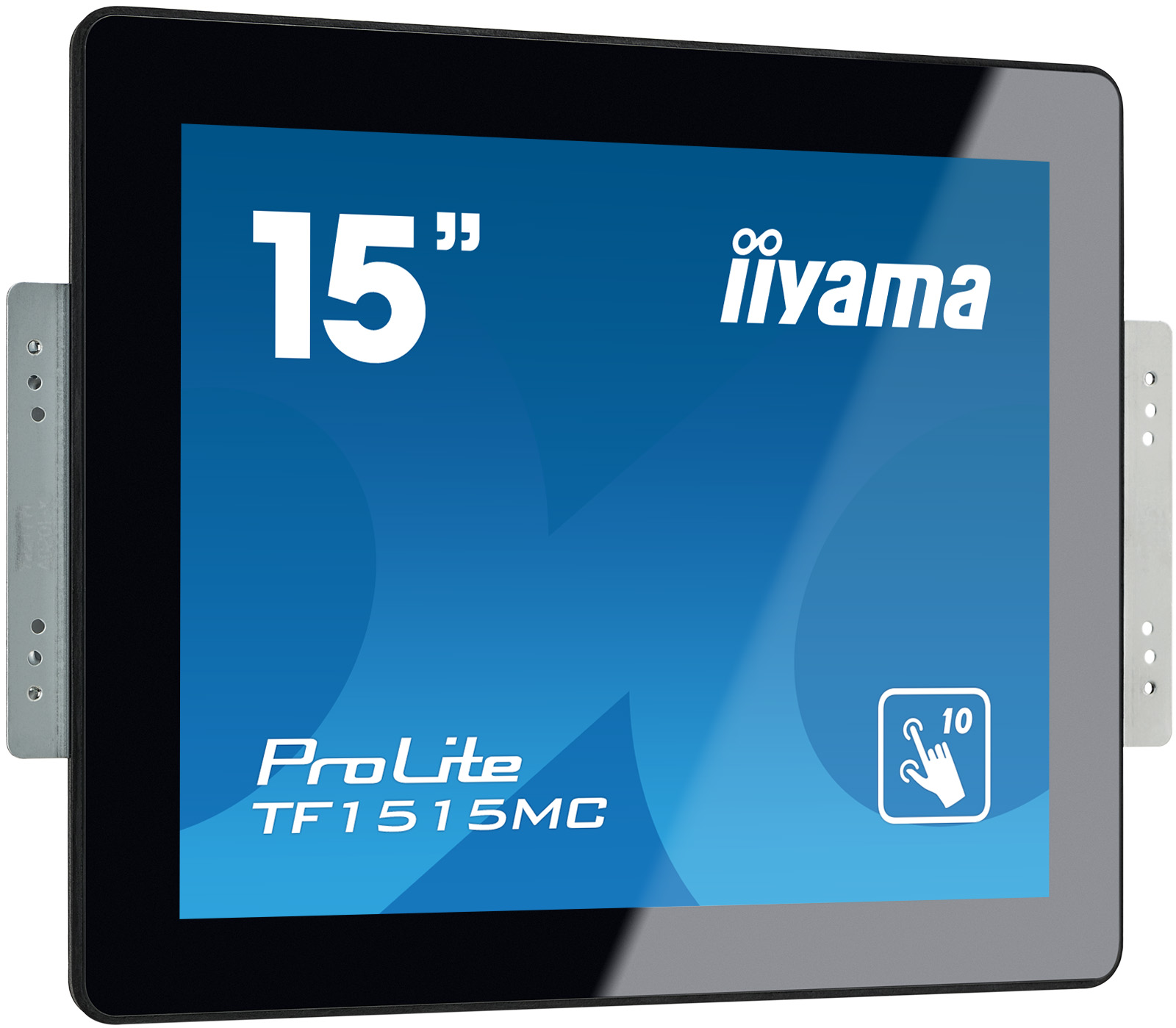

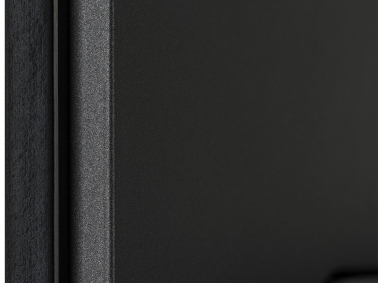

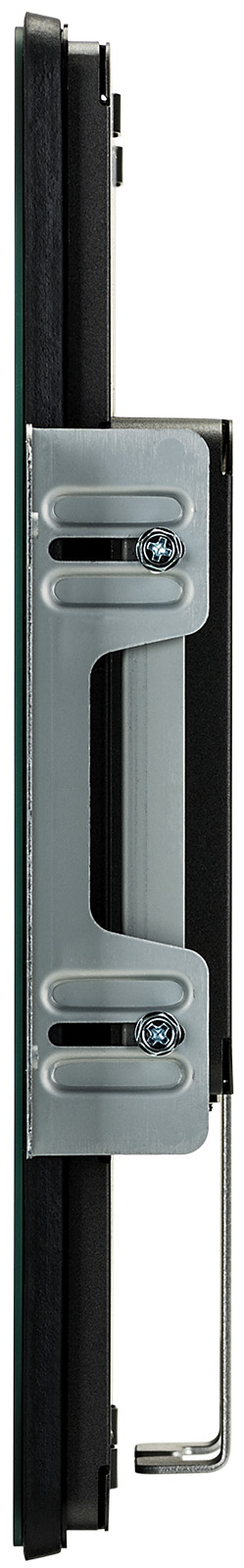

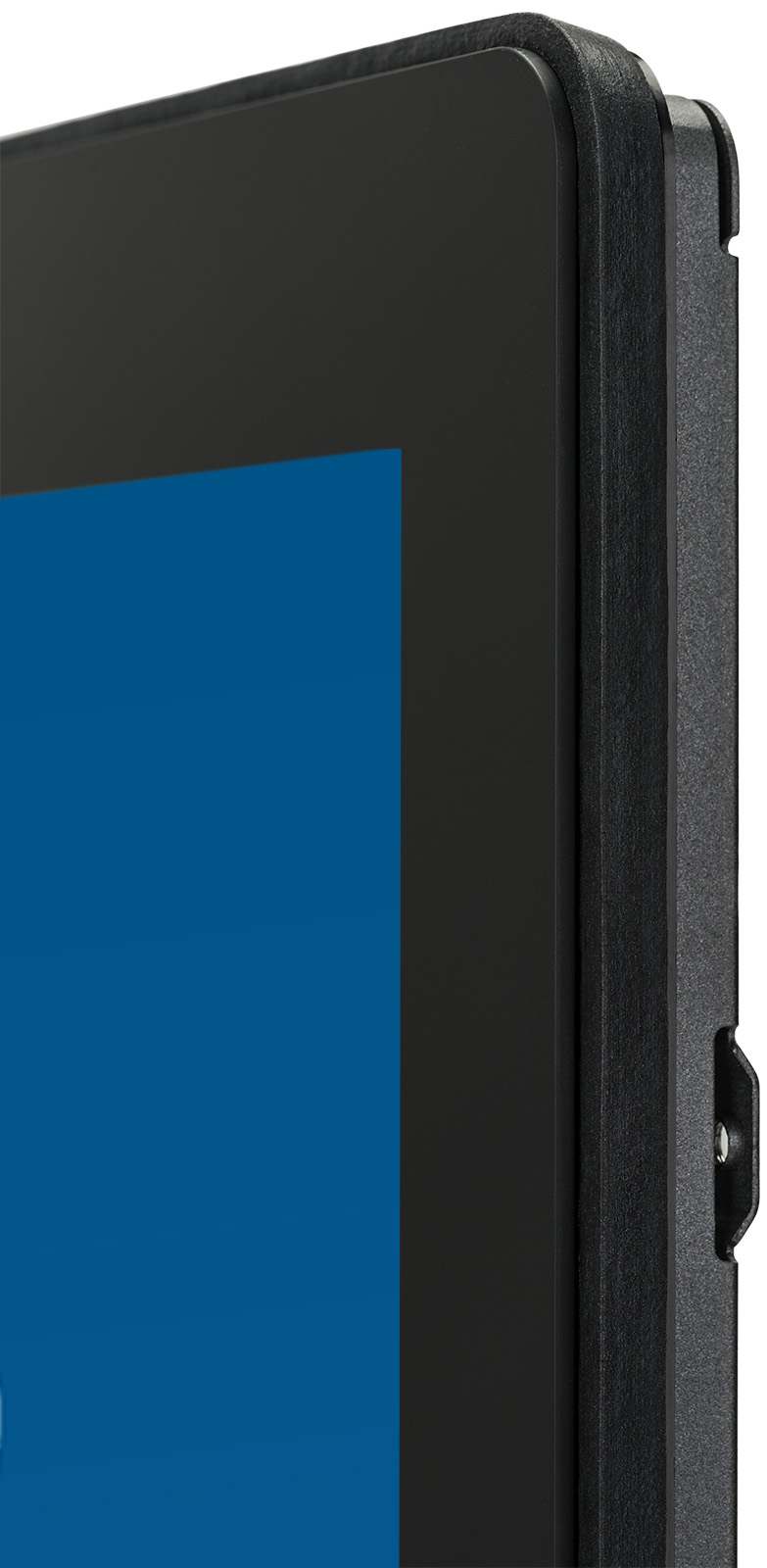

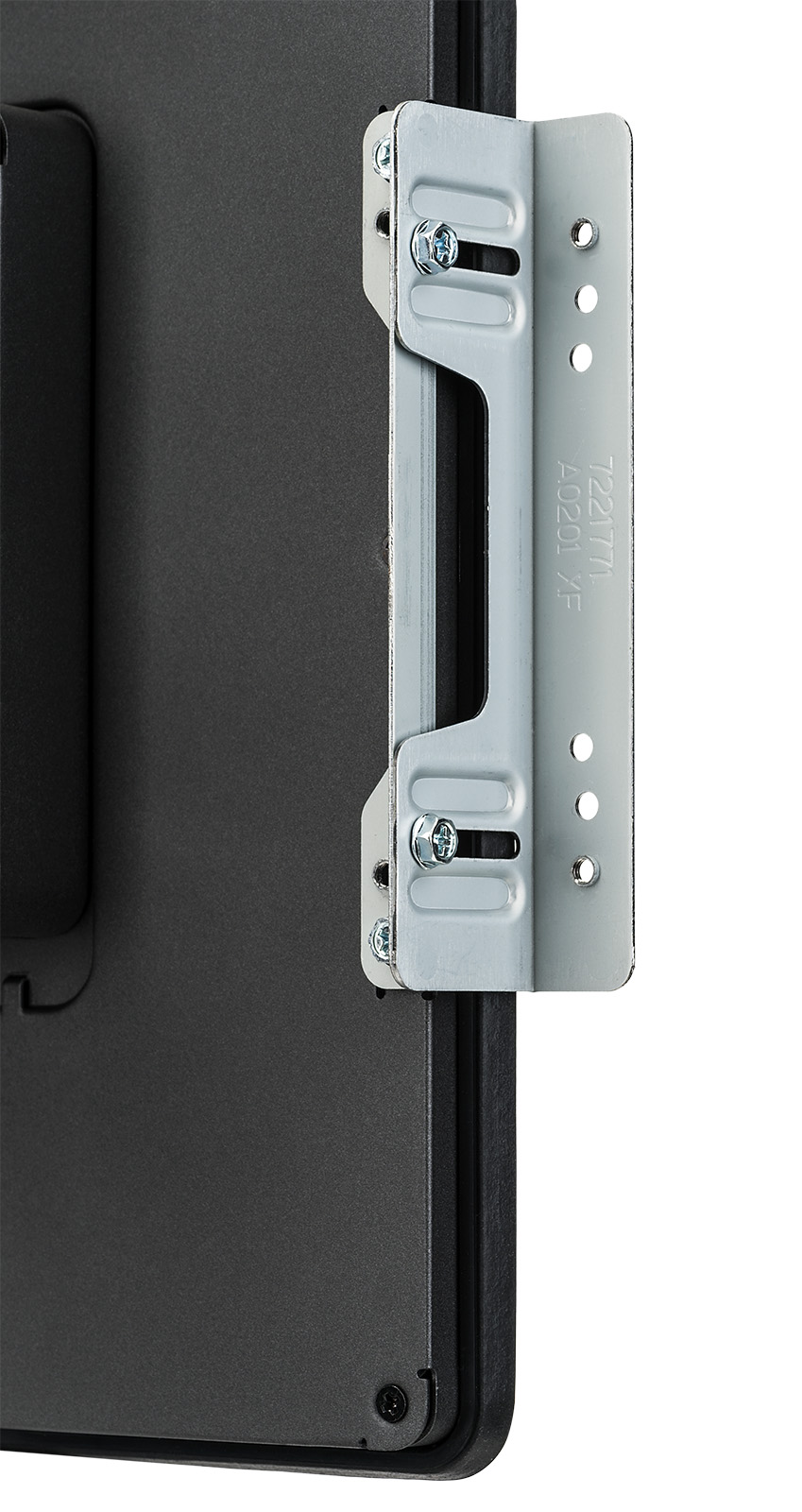

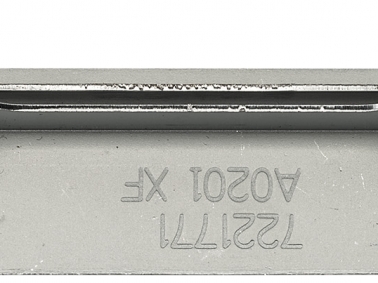

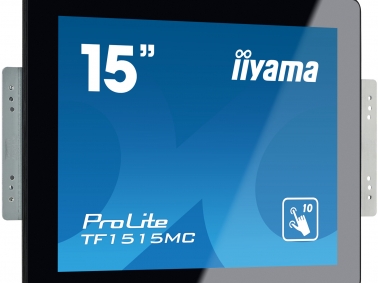

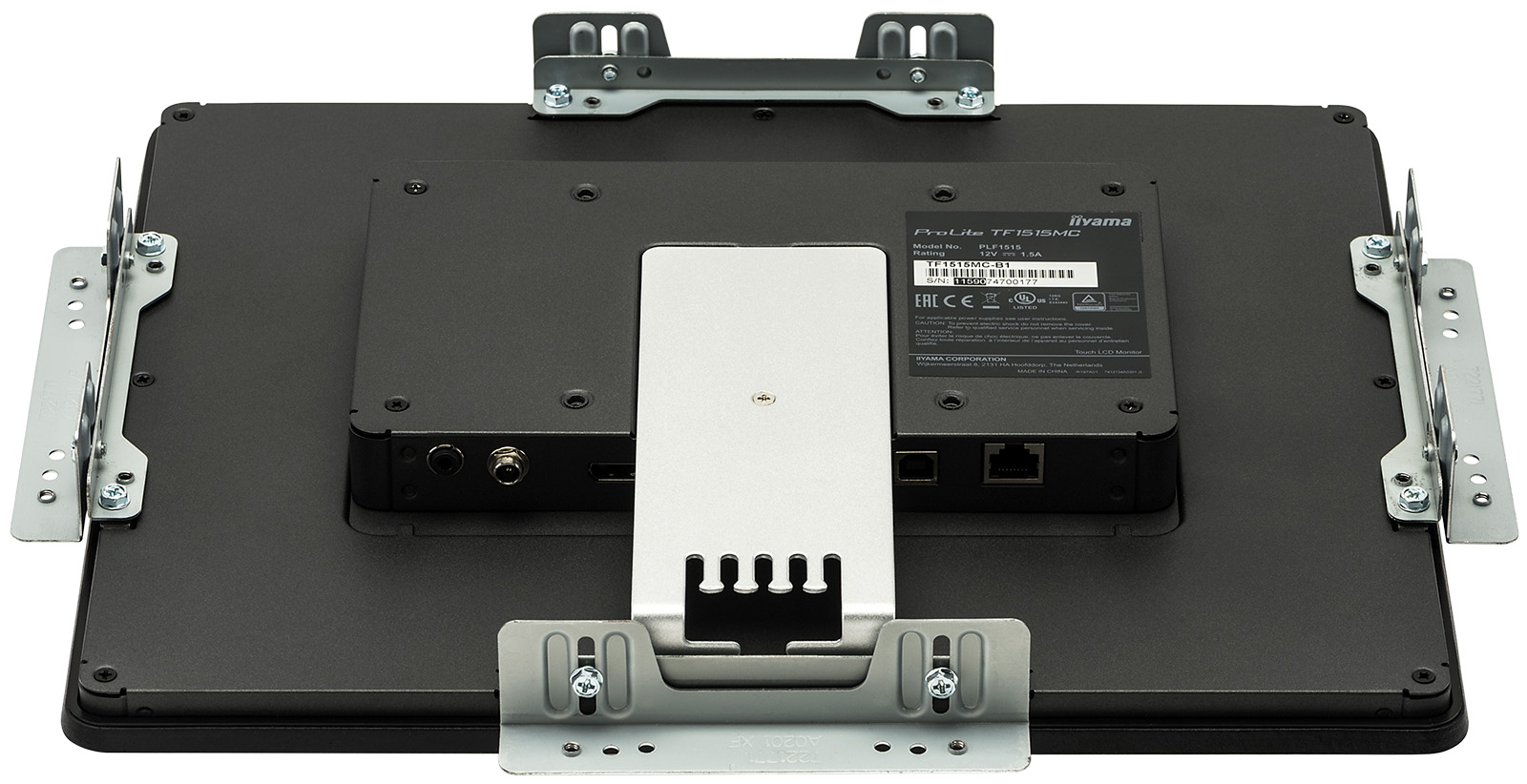

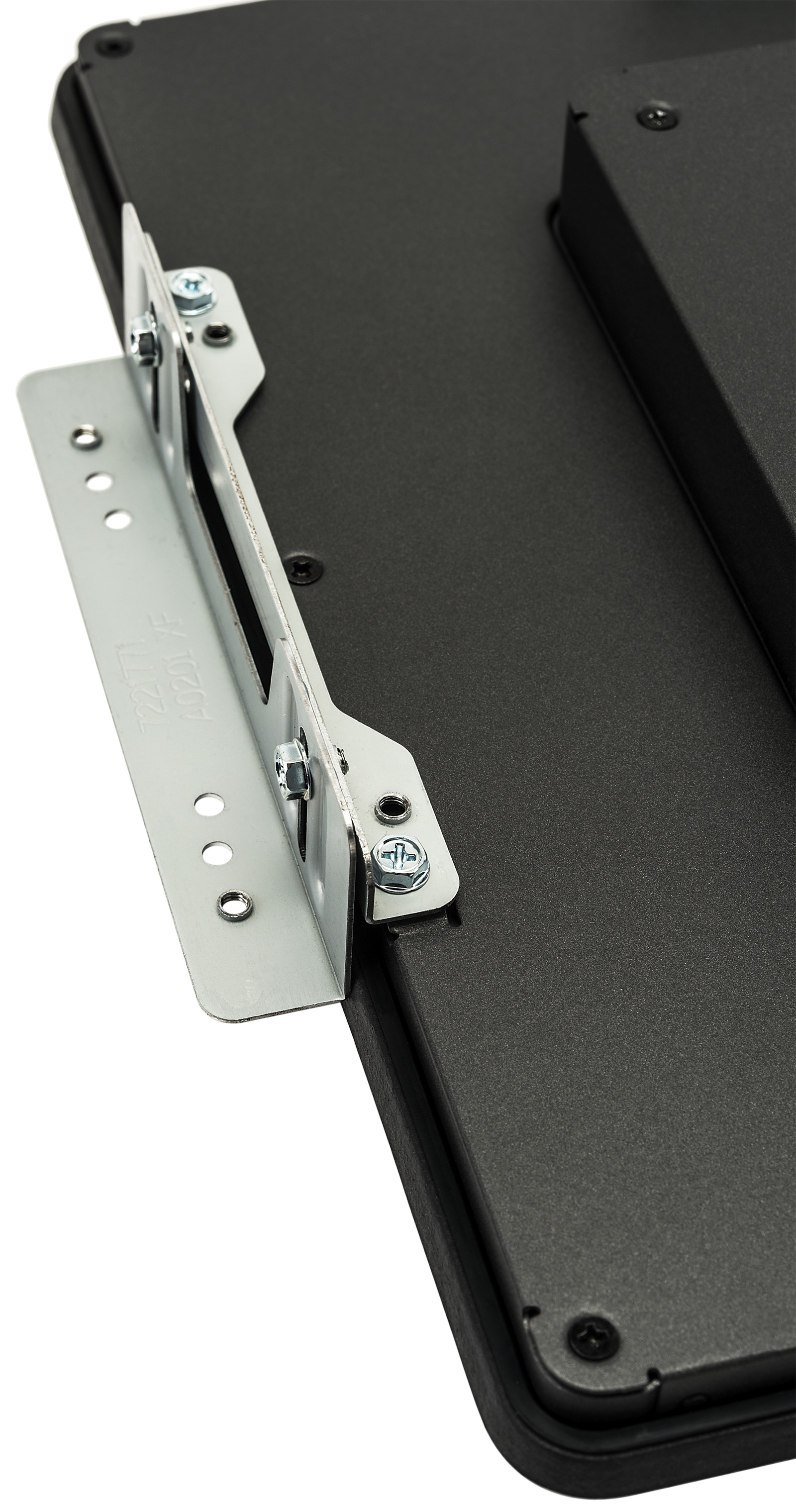

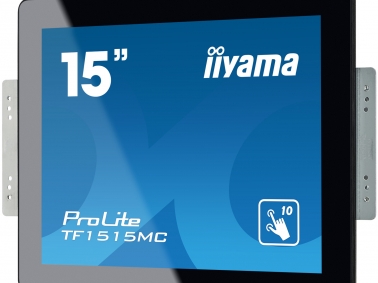

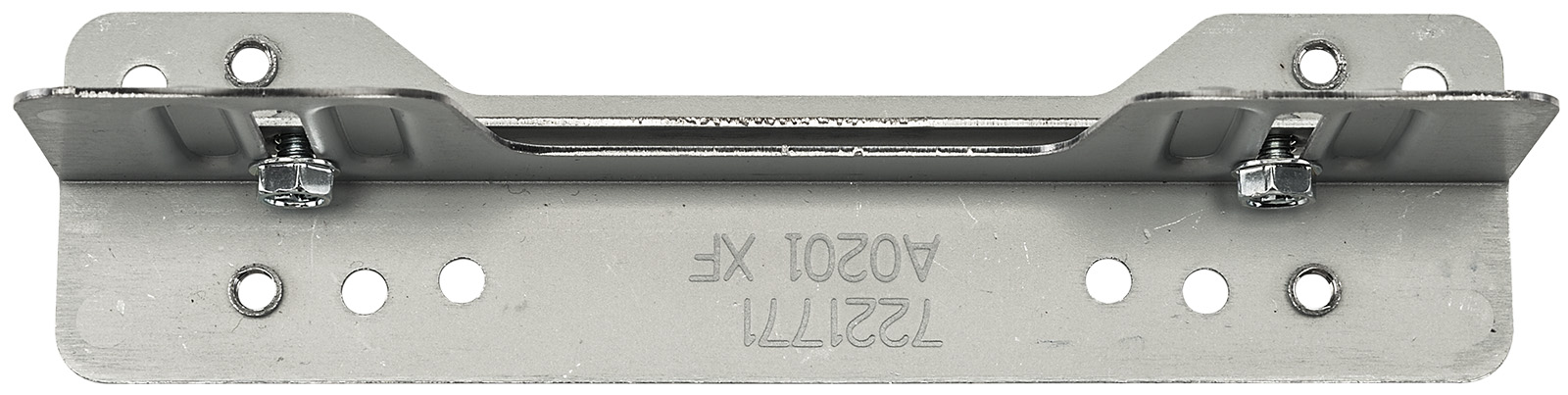

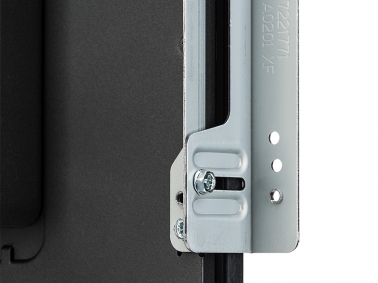

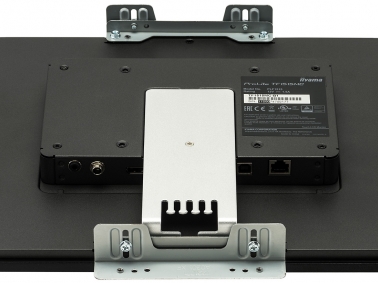

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Colour option
iiyama ProLite TF1515MC-B2
Device type
Open frame touchscreen monitor
Model
iiyama ProLite TF1515MC-B2
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
15"
Aspect ratio
4:3
Active area (mm)
304.1 x 228.1
Width (mm)
364
Height (mm)
291
Depth (mm)
41.5
Net weight
2.9 kg
Gross weight
4.6 kg
Resolution
1024 x 768
Brightness (sole LCD panel)
350 cd/m²
Brightness (Pro. Cap)
315 cd/m²
Response time
8 ms
Viewing angle
horizontal/vertical: 160°/150°
Contrast ratio
800:1

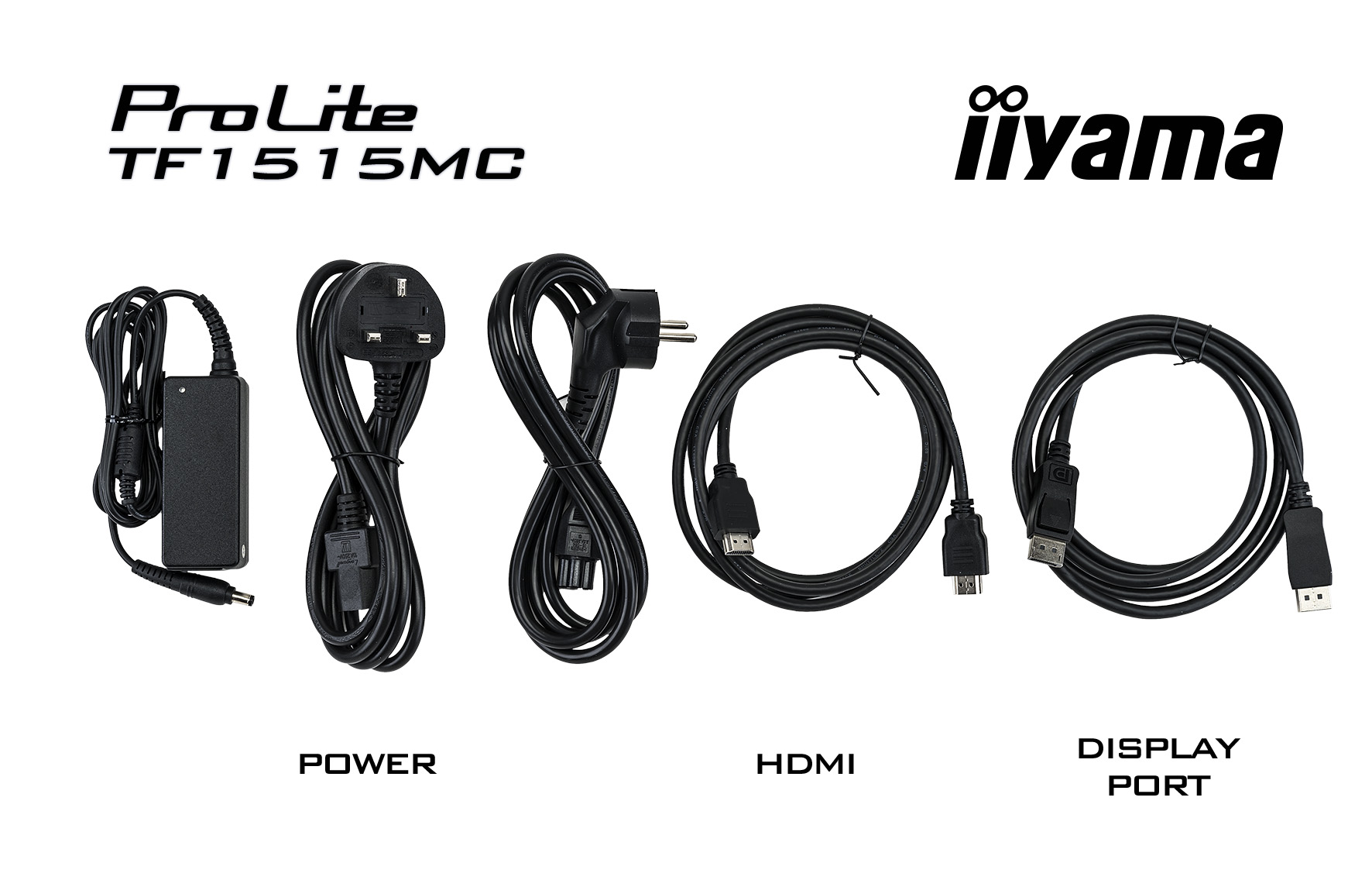

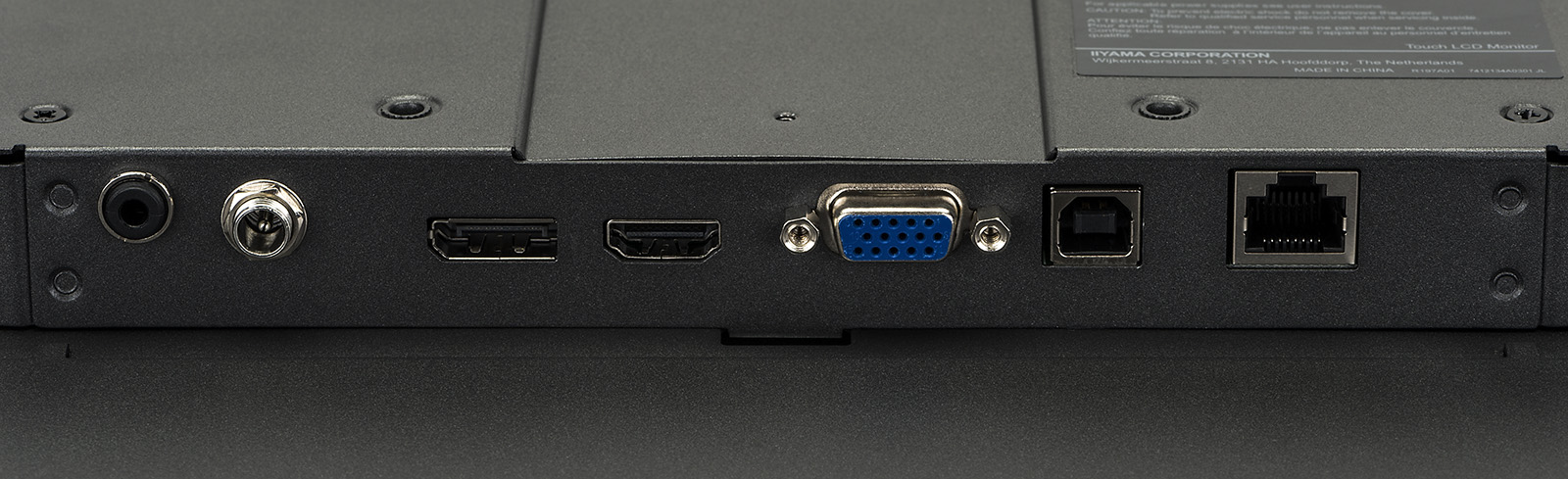

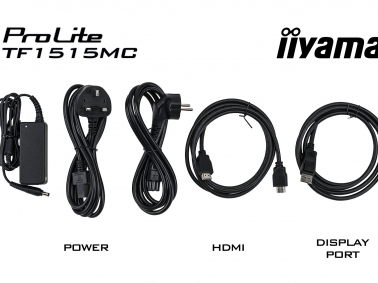

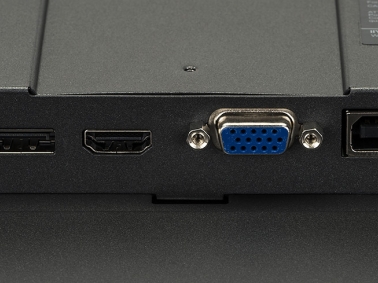

Video input - connector
VGA, HDMI, DisplayPort
Touchscreen interface
USB
Power consumption (typical)
16W
Power supply - type
external
Power supply - voltage
12V

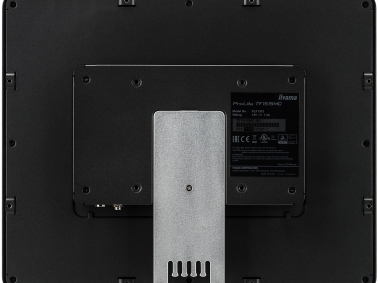

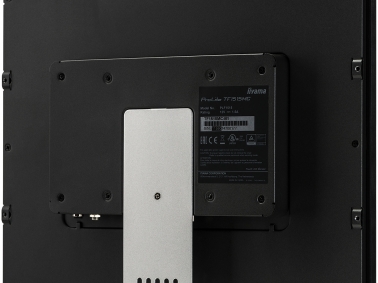

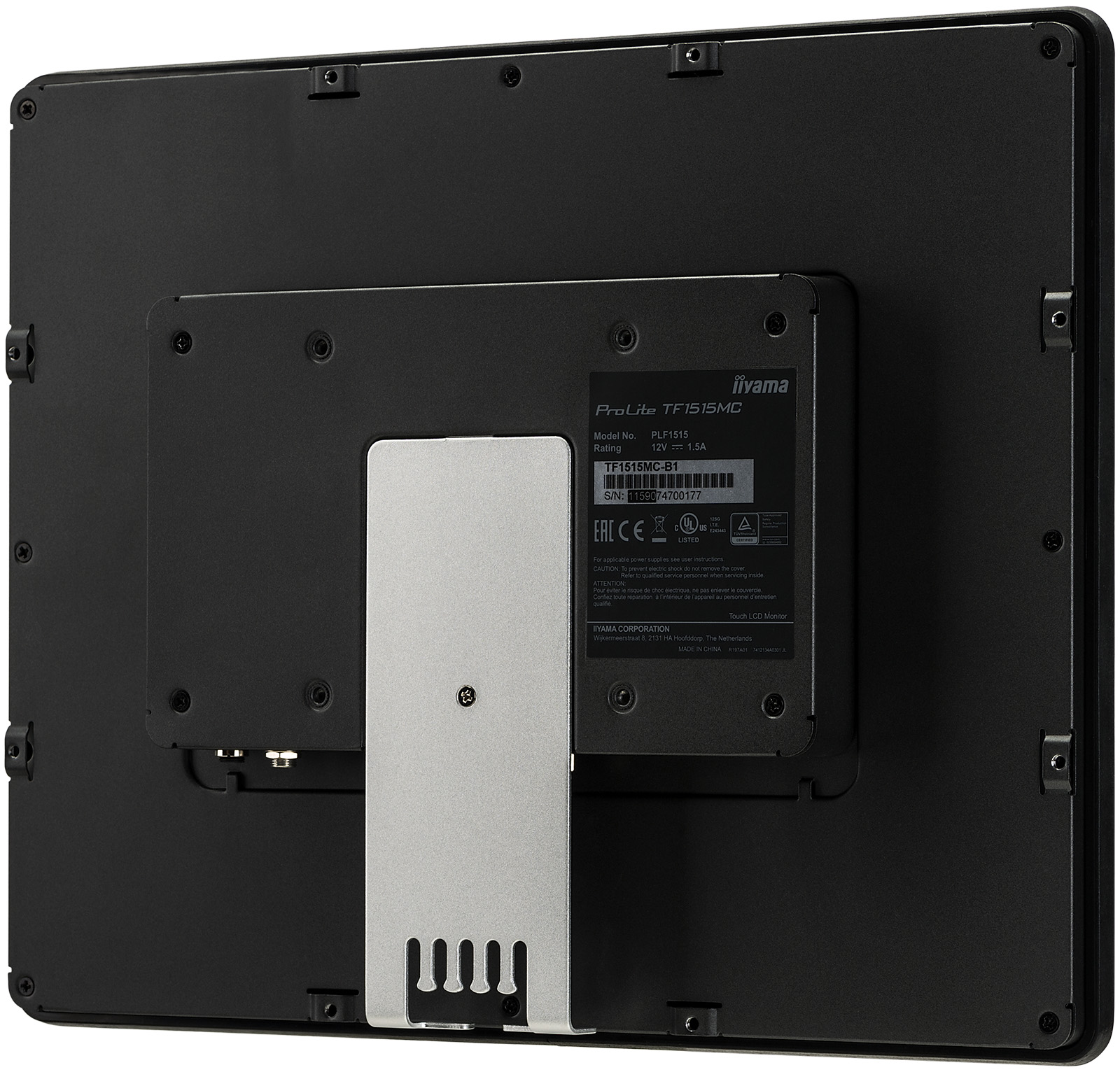

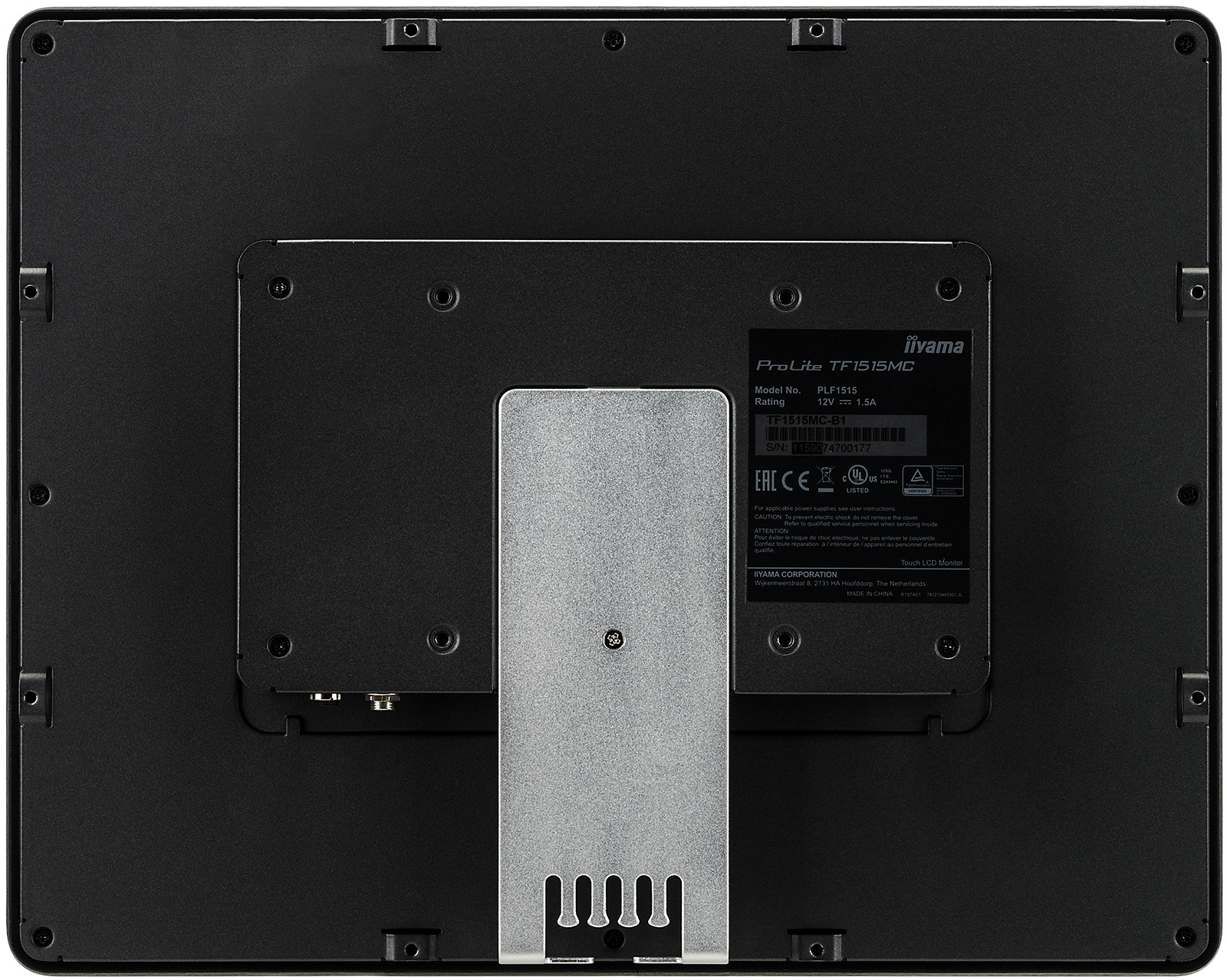

Assembly options - Assembly without the base
VESA 100 mm

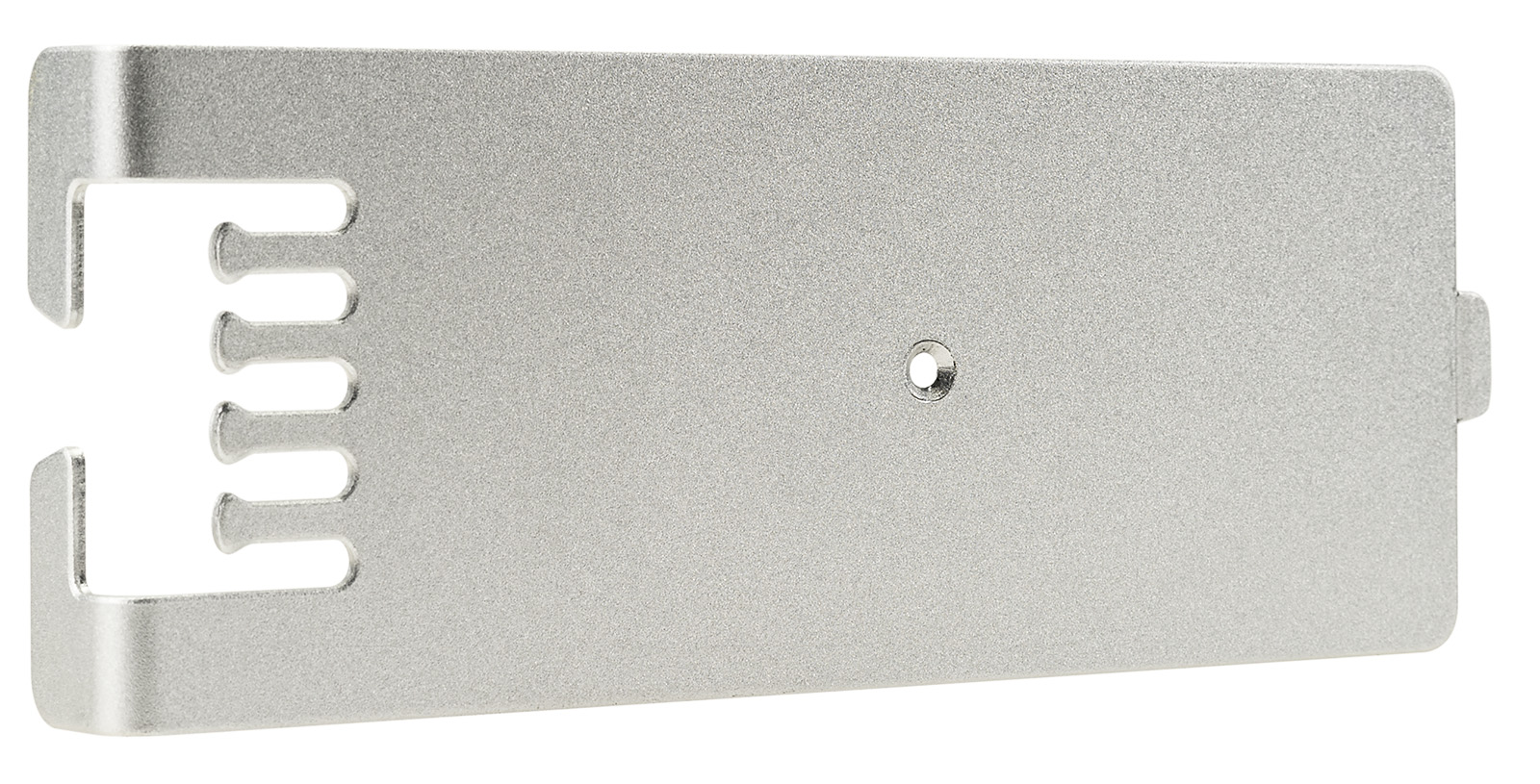

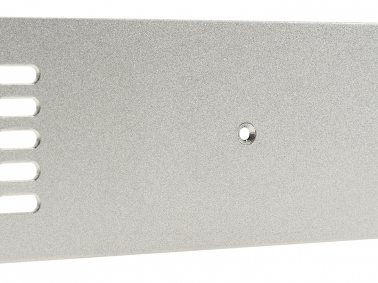

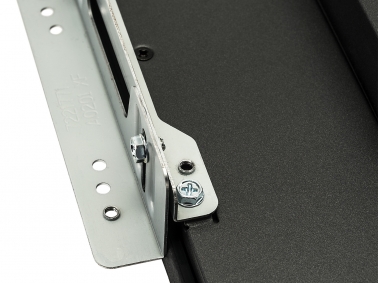

Assembly options - available accessories
Mounting brackets (not included)
Warranty
36 months
