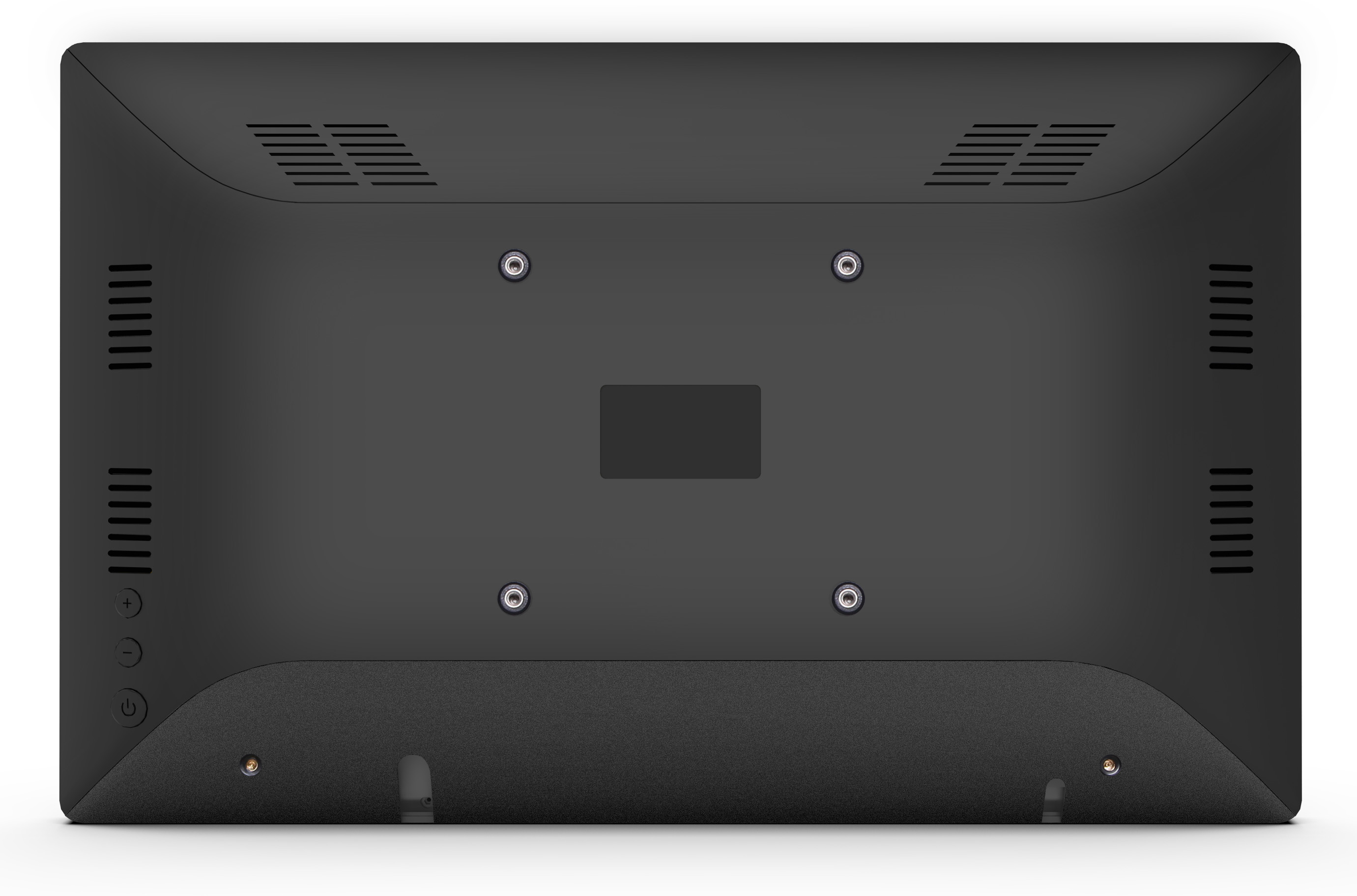

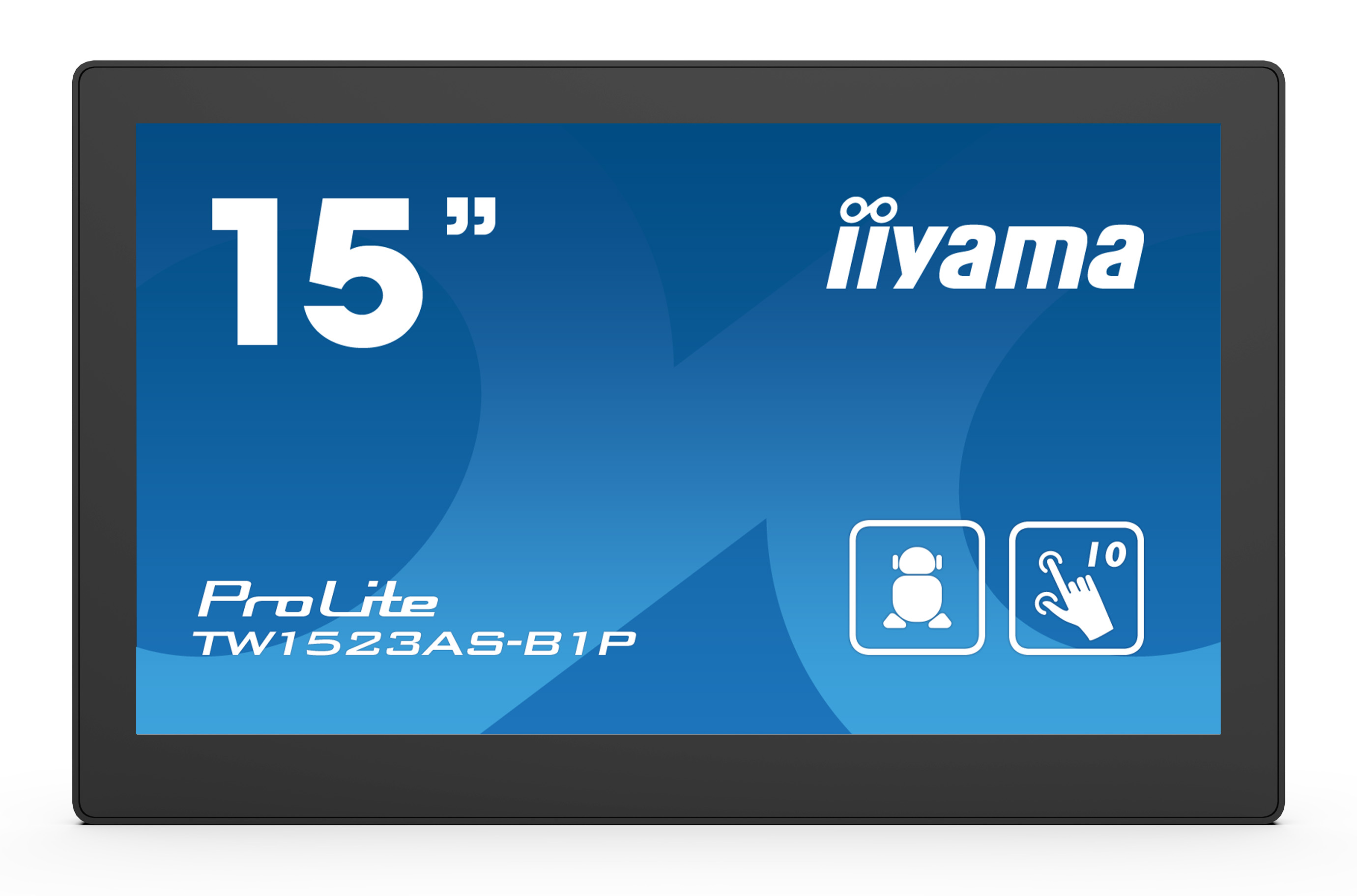

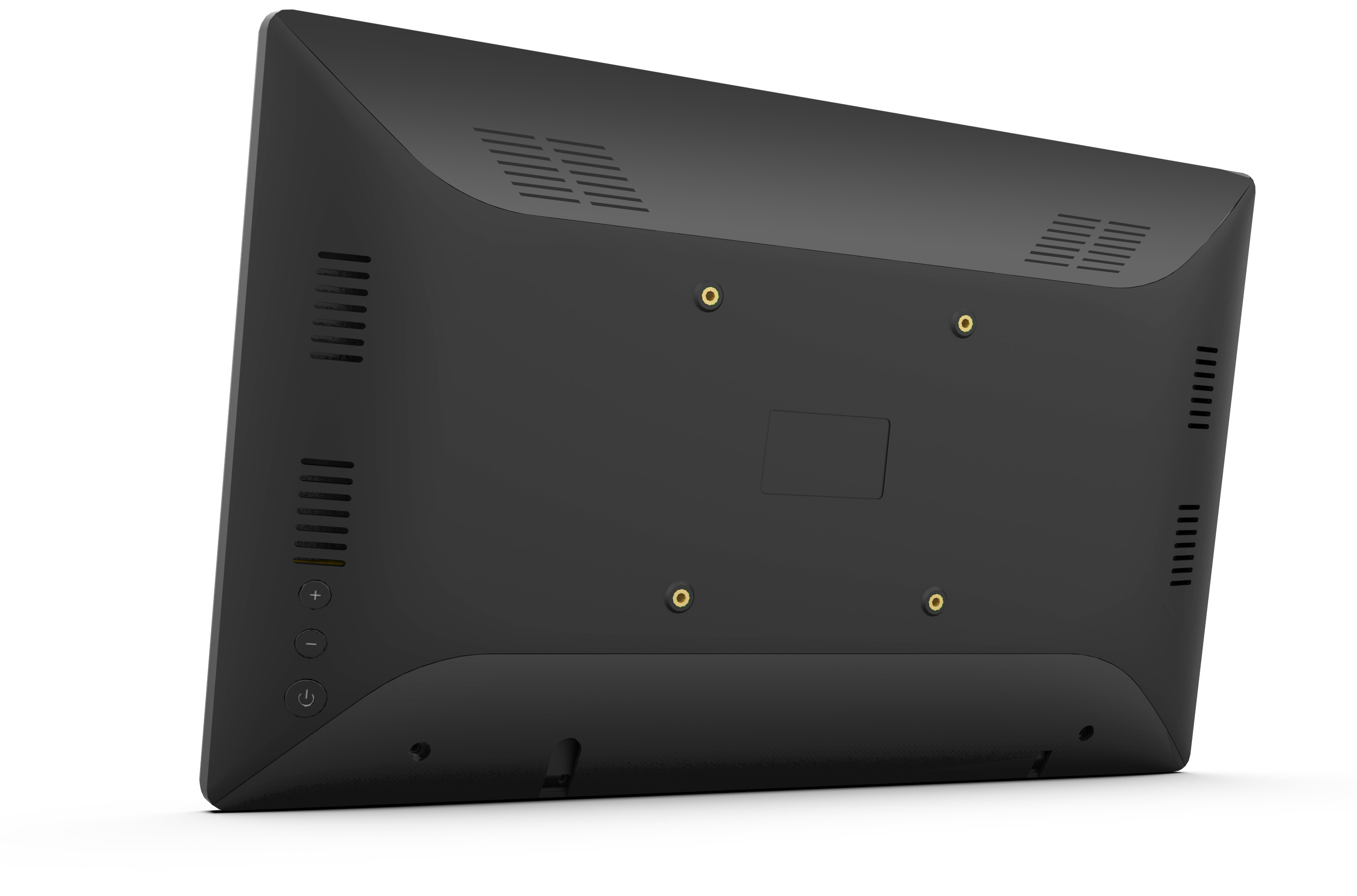

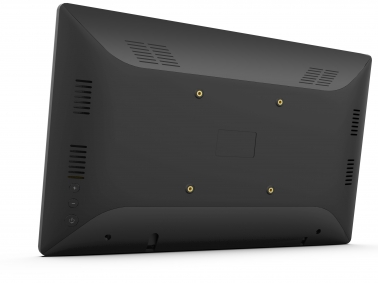

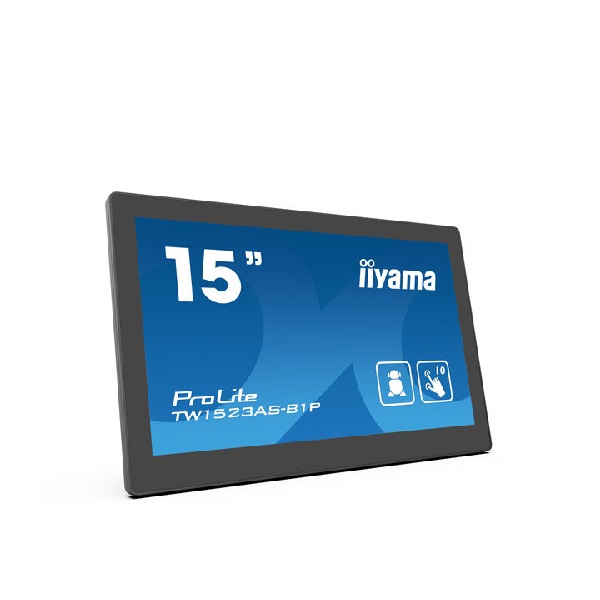

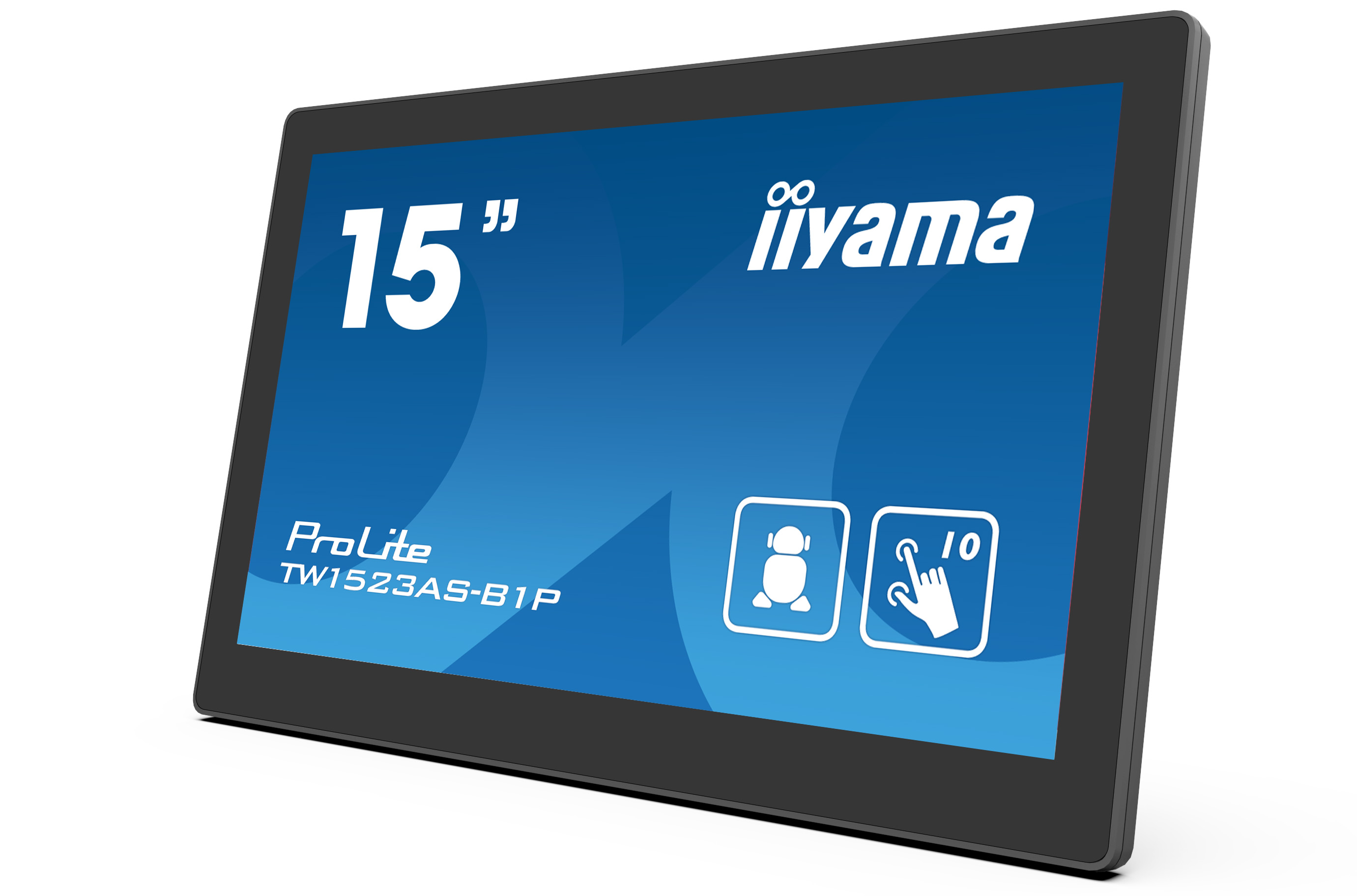

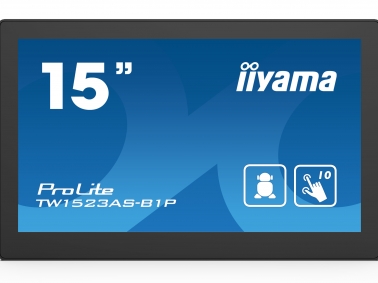

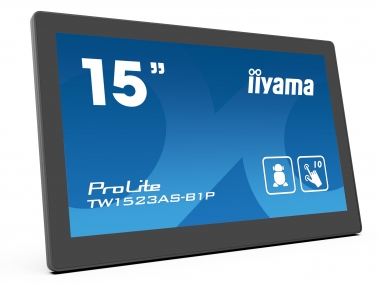

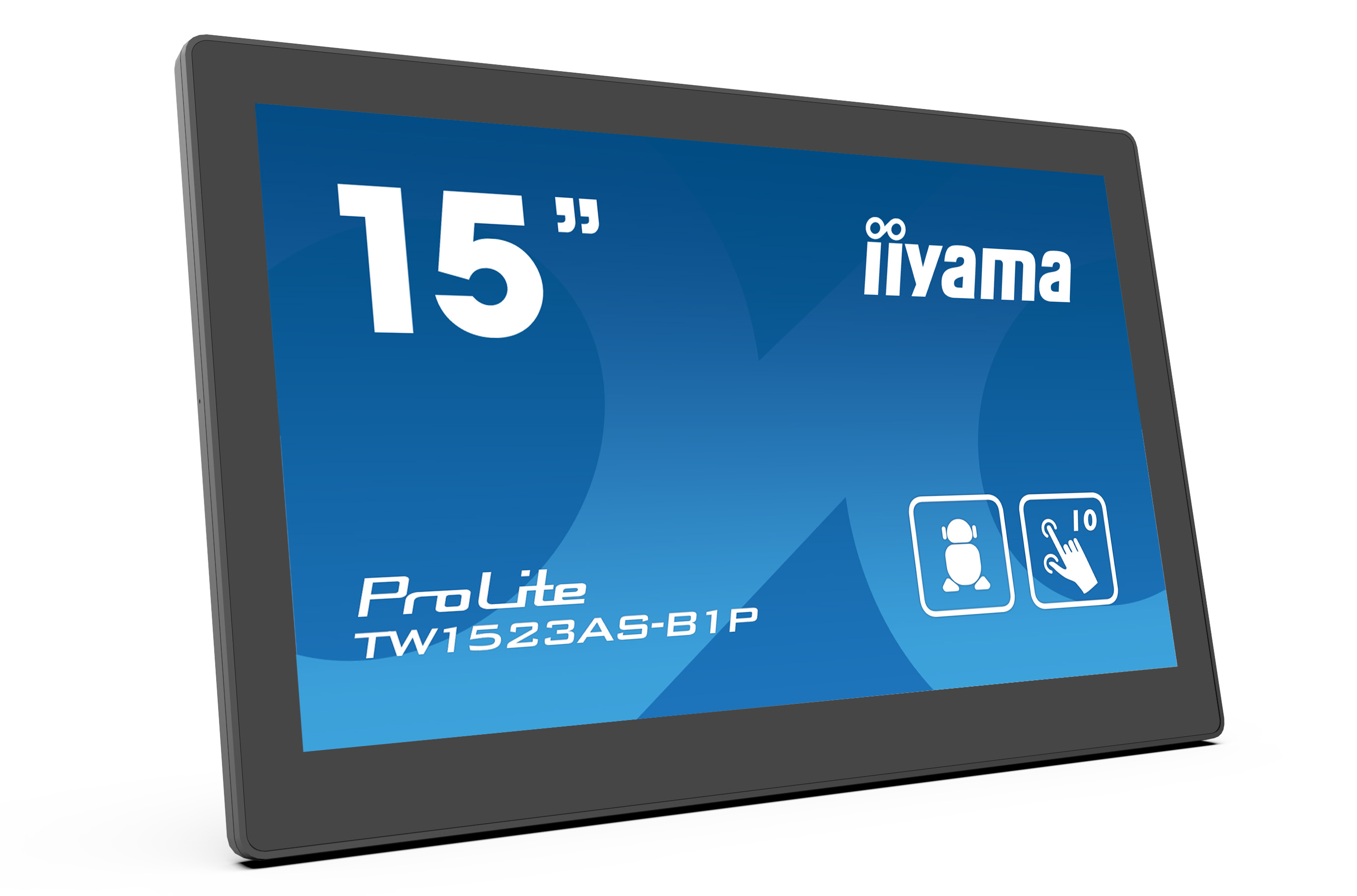

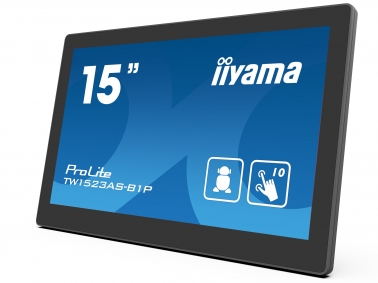

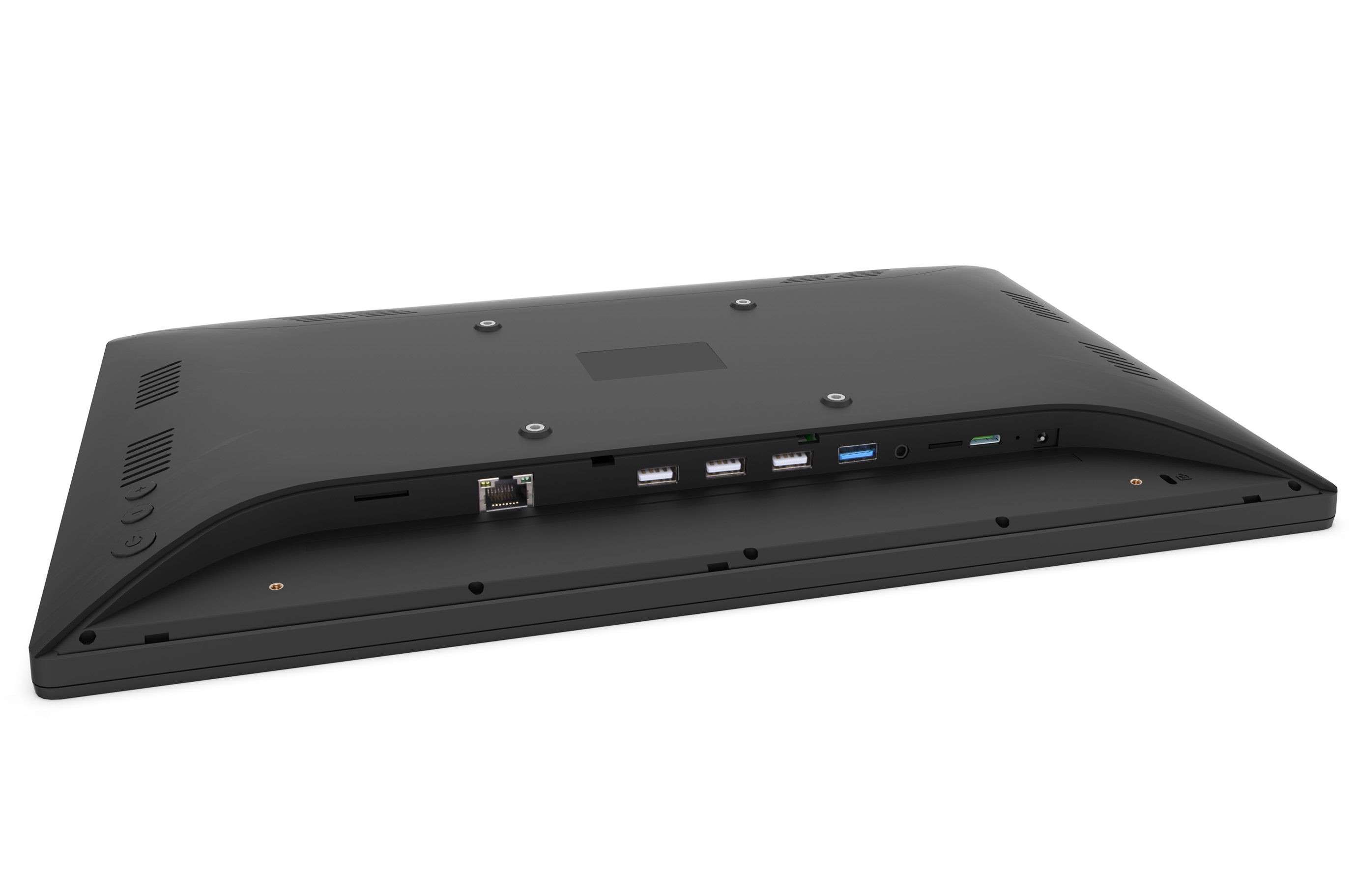

iiyama ProLite TW1523AS-B1P

15.6” Full HD PCAP 10pt touch screen with Android and POE Technology

The ProLite TW1523AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.

The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.



Colour option
iiyama ProLite TW1523AS-B1P
Recommended devices
HISENSE HK560
HISENSE HK560
ELO 15E2 – rewizja D
ELO 15E2 – rewizja D
HISENSE HK570E - rev. B
HISENSE HK570E - rev. B
HISENSE HK950
HISENSE HK950
Device type
Touchscreen computer
Model
iiyama ProLite TW1523AS-B1P
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
15.6"
Aspect ratio
16:9
Active area (mm)
344.16 x 193.59
Width (mm)
387
Height (mm)
244
Depth (mm)
30.5
Net weight
1.5 kg
Resolution
1920 x 1080
Brightness (sole LCD panel)
450 cd/m²
Brightness (Pro. Cap)
385 cd/m²
Response time
30 ms
Viewing angle
horizontal/vertical: 170°/170°
Contrast ratio
1000:1
Power consumption (typical)
12W
Power supply - type
External
Power supply - voltage
12V

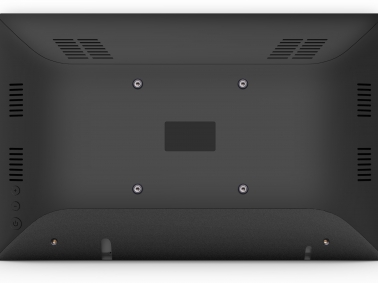

Assembly options - Assembly without the base
VESA 100mm
Regulatory approvals and declarations
CE, RoHS support, ErP, WEEE, REACH
Multimedia functions
2 x 2W speakers
Calculation platform
Processor
Rockchip RK3288, quad-core Cortex-A17 up to 1.8GHz
RAM
2GB DDR3
Storage
16GB eMMC

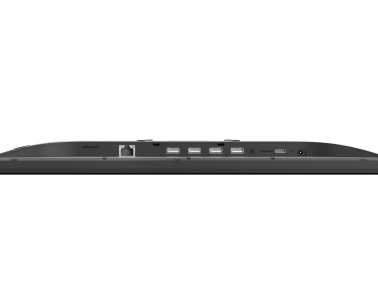

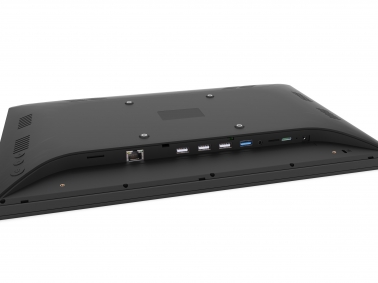

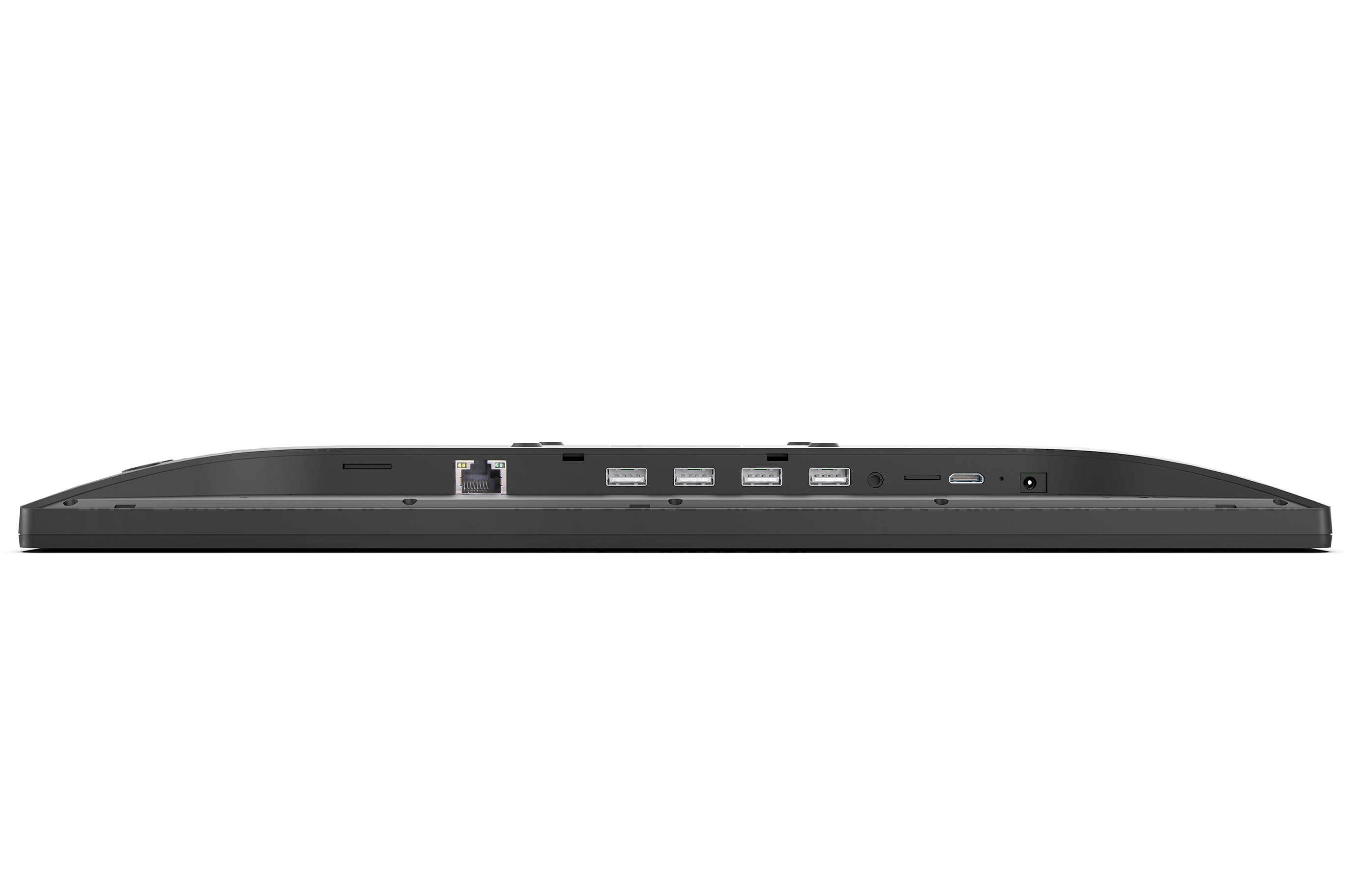

Communication interfaces
USB ports
2x 2.0
Video output
miniHDMI
Other interfaces
RJ-45 (PoE), WiFi, Bluetooth 4.0
Operating system
Available systems (preinstalled)
Android 8.1 (non-GMS)
