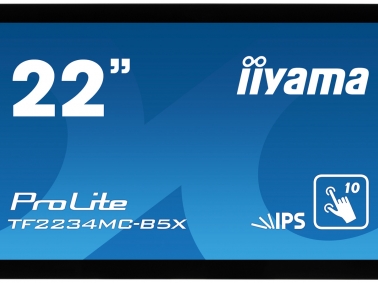

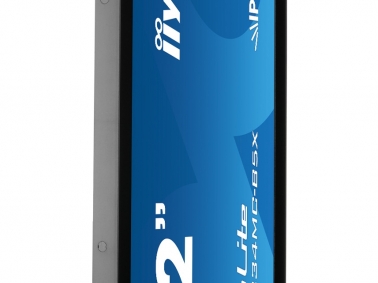

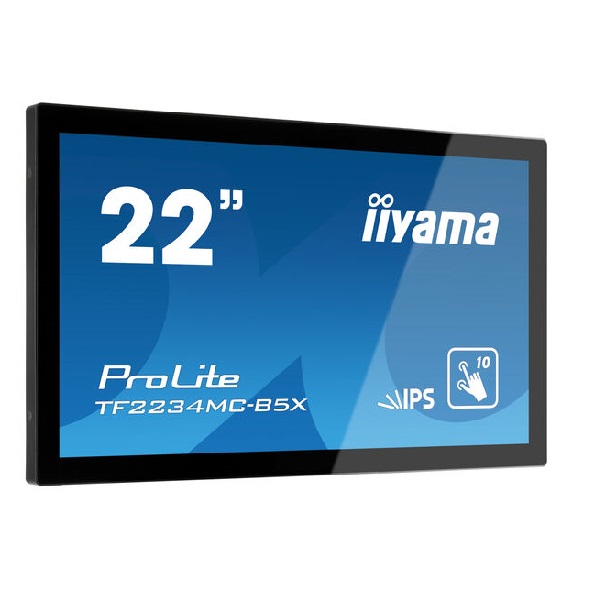

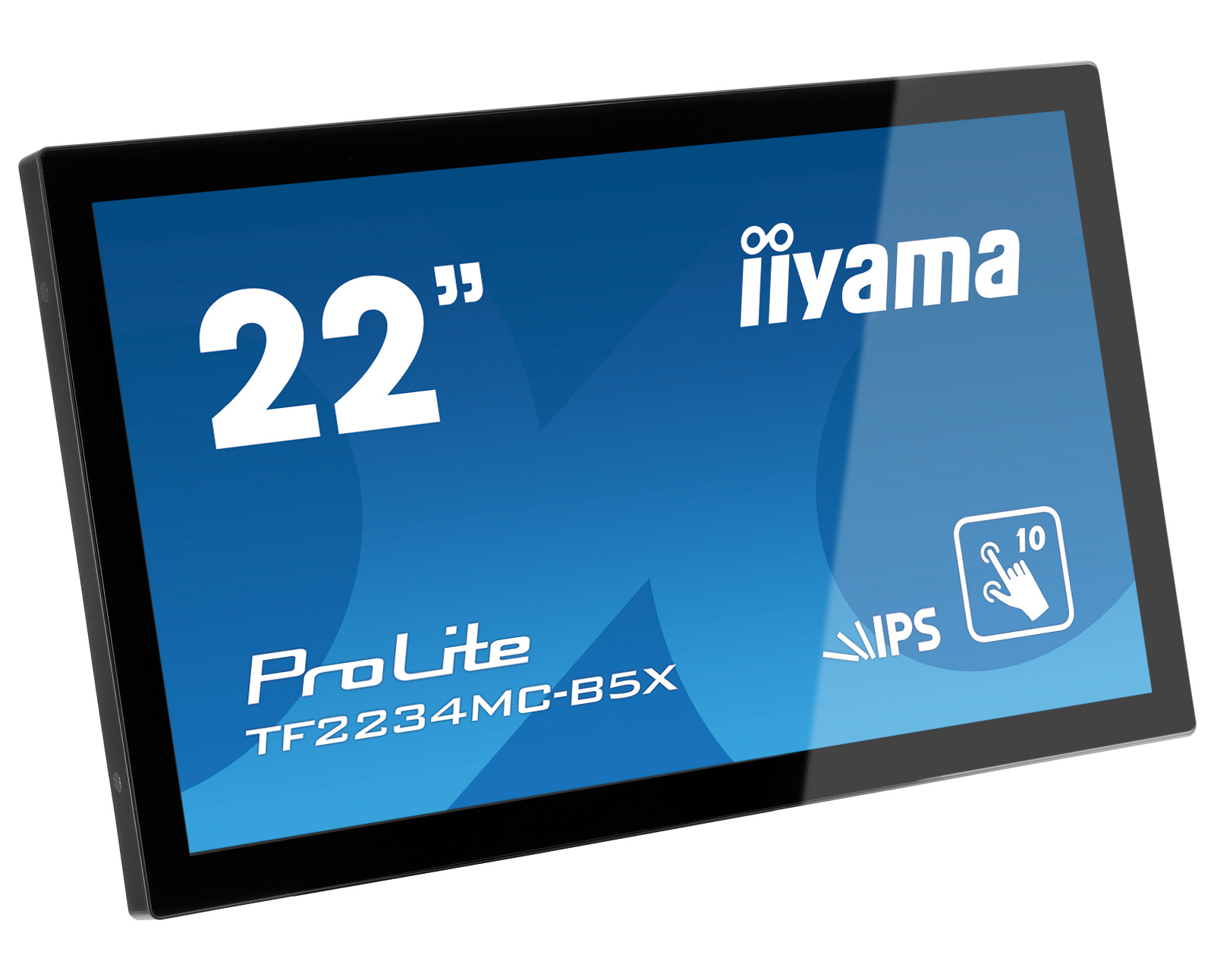

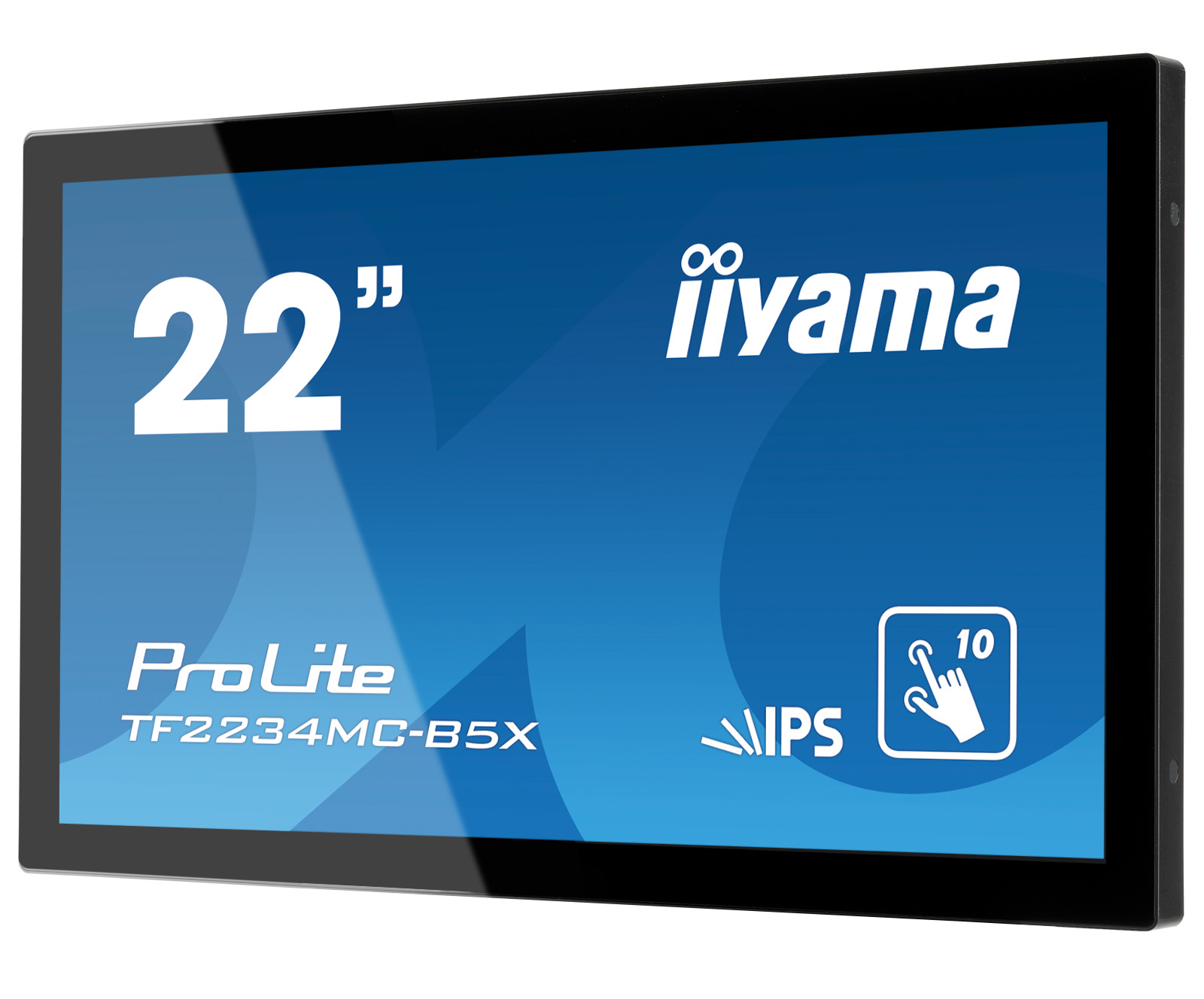

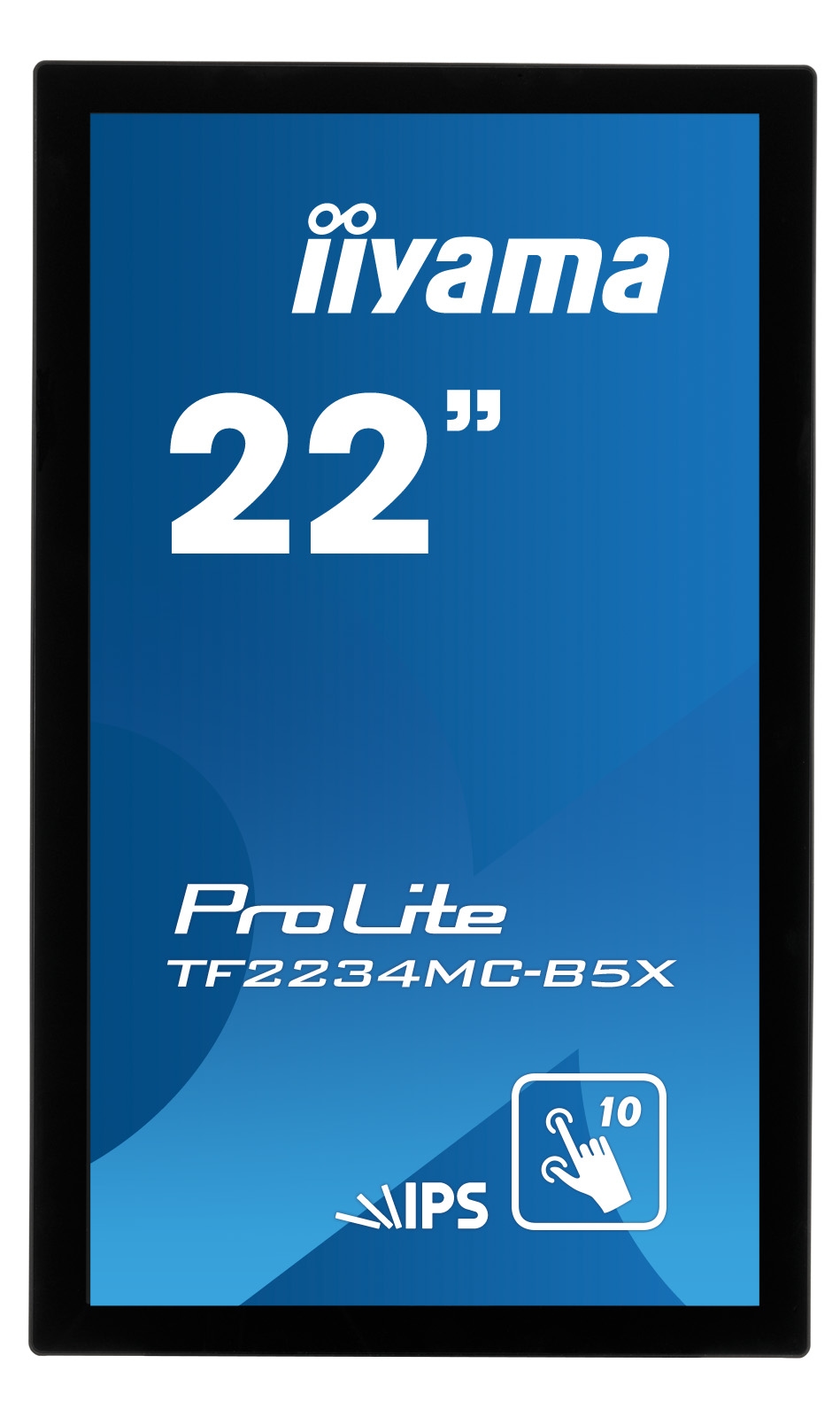

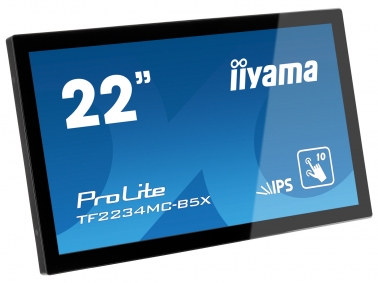

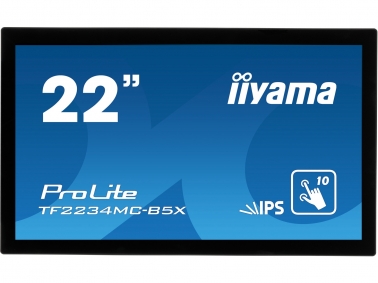

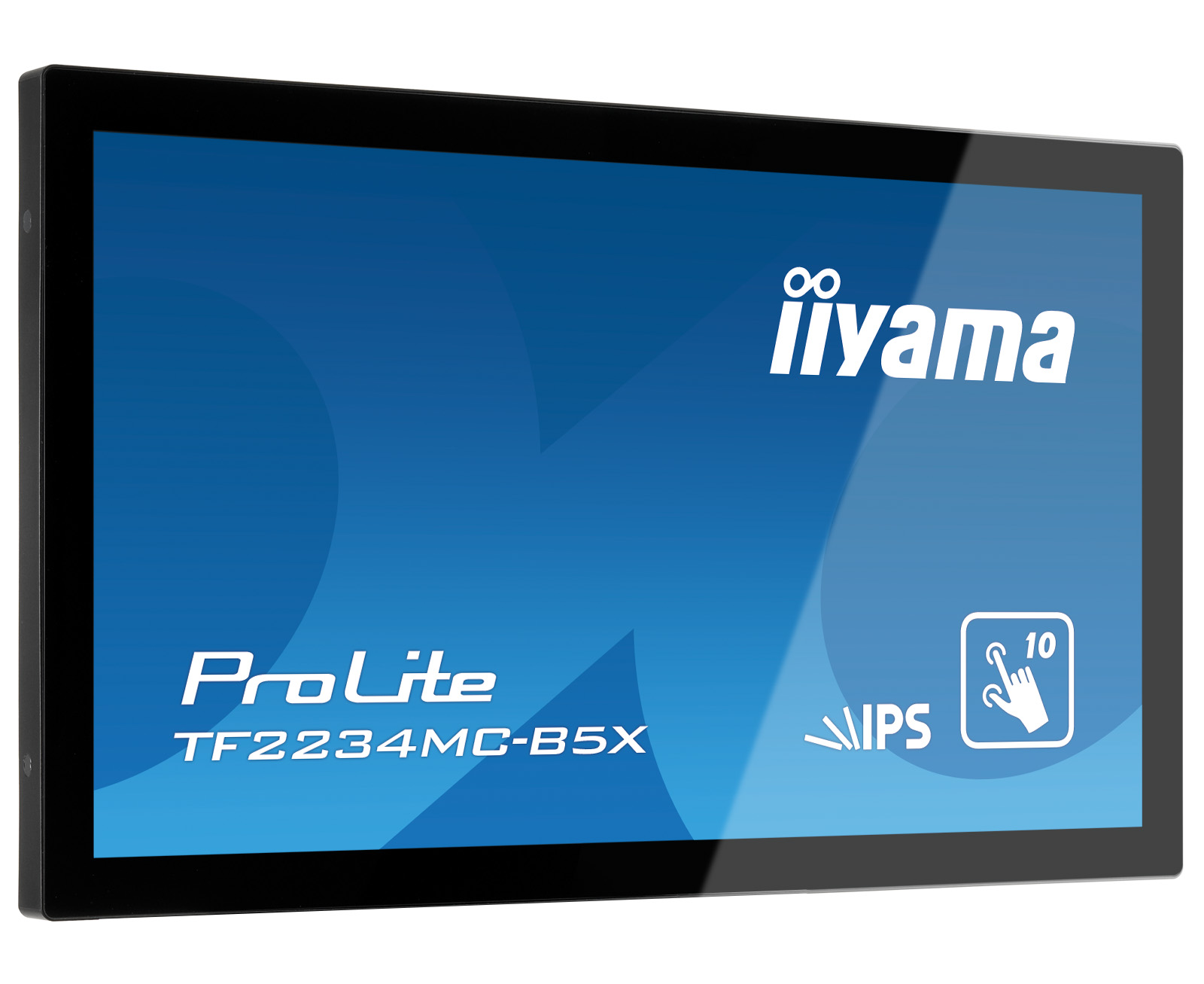

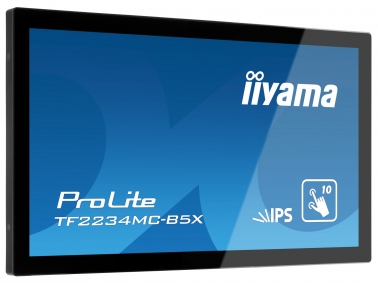

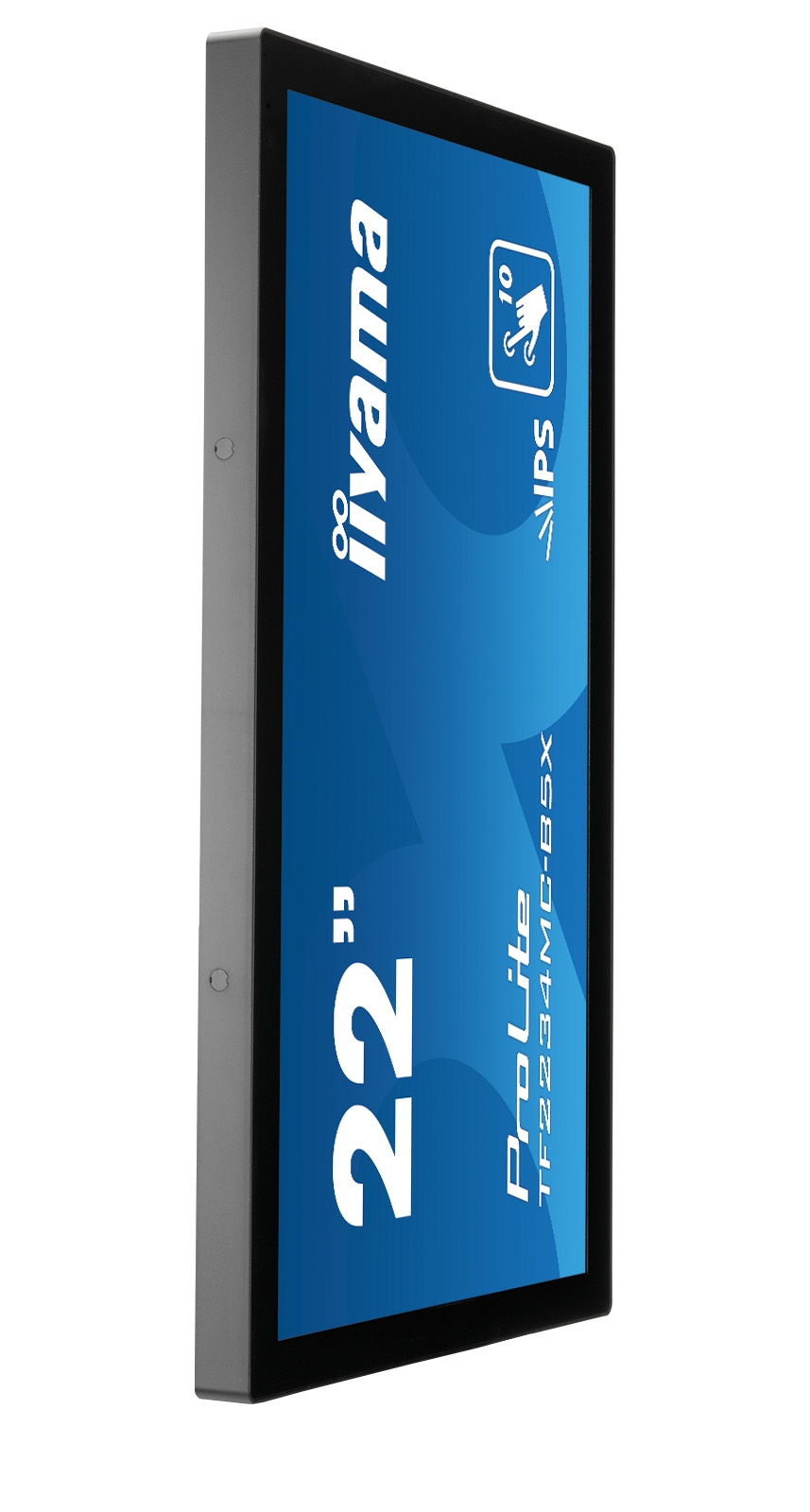

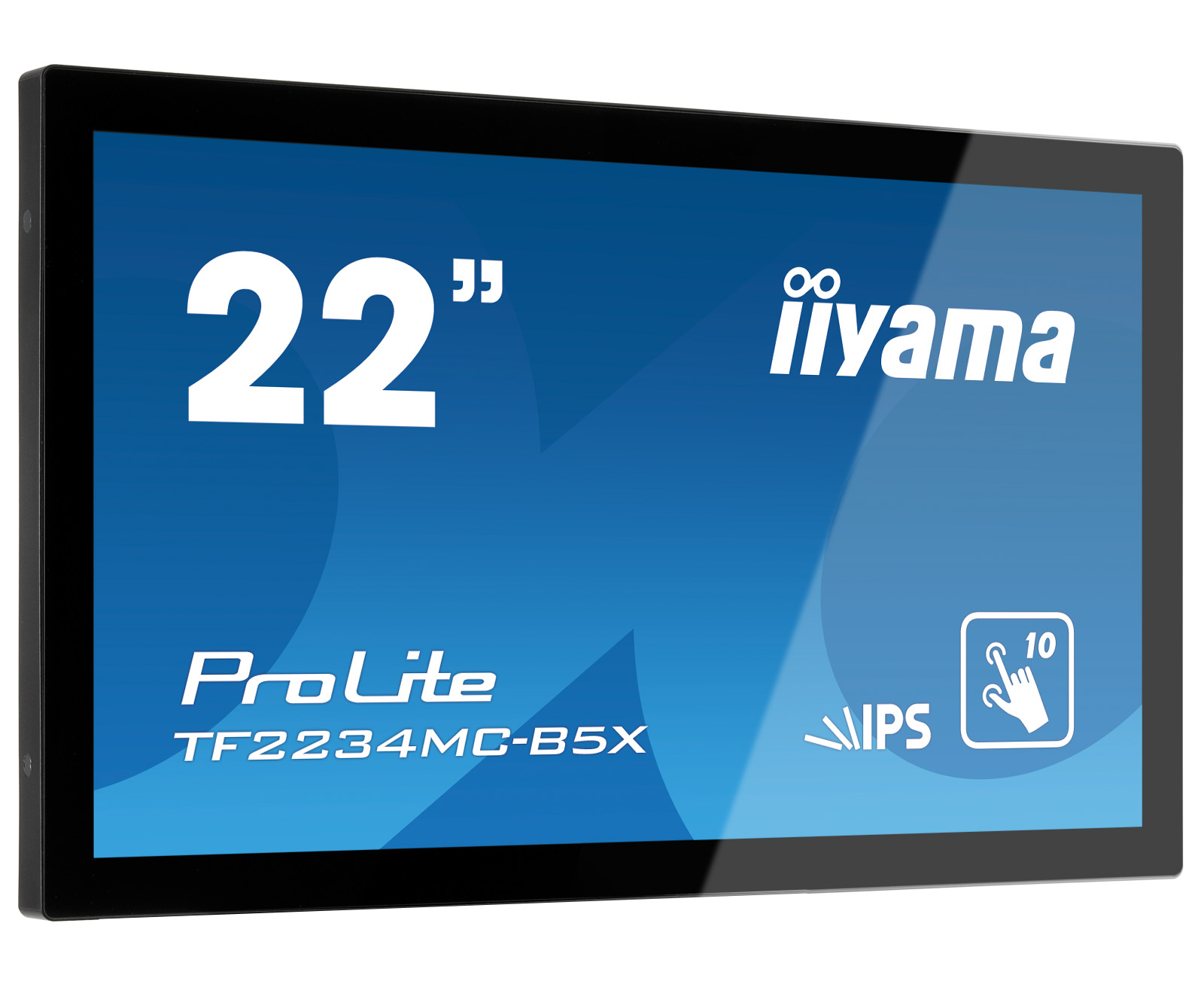

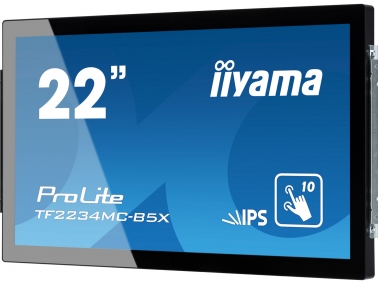

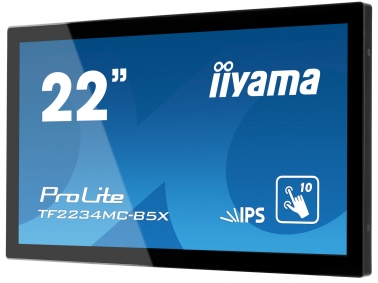

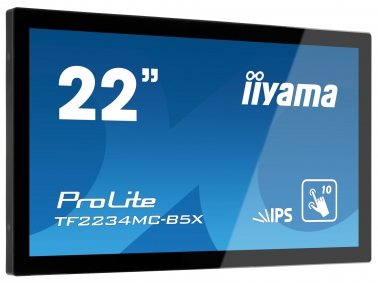

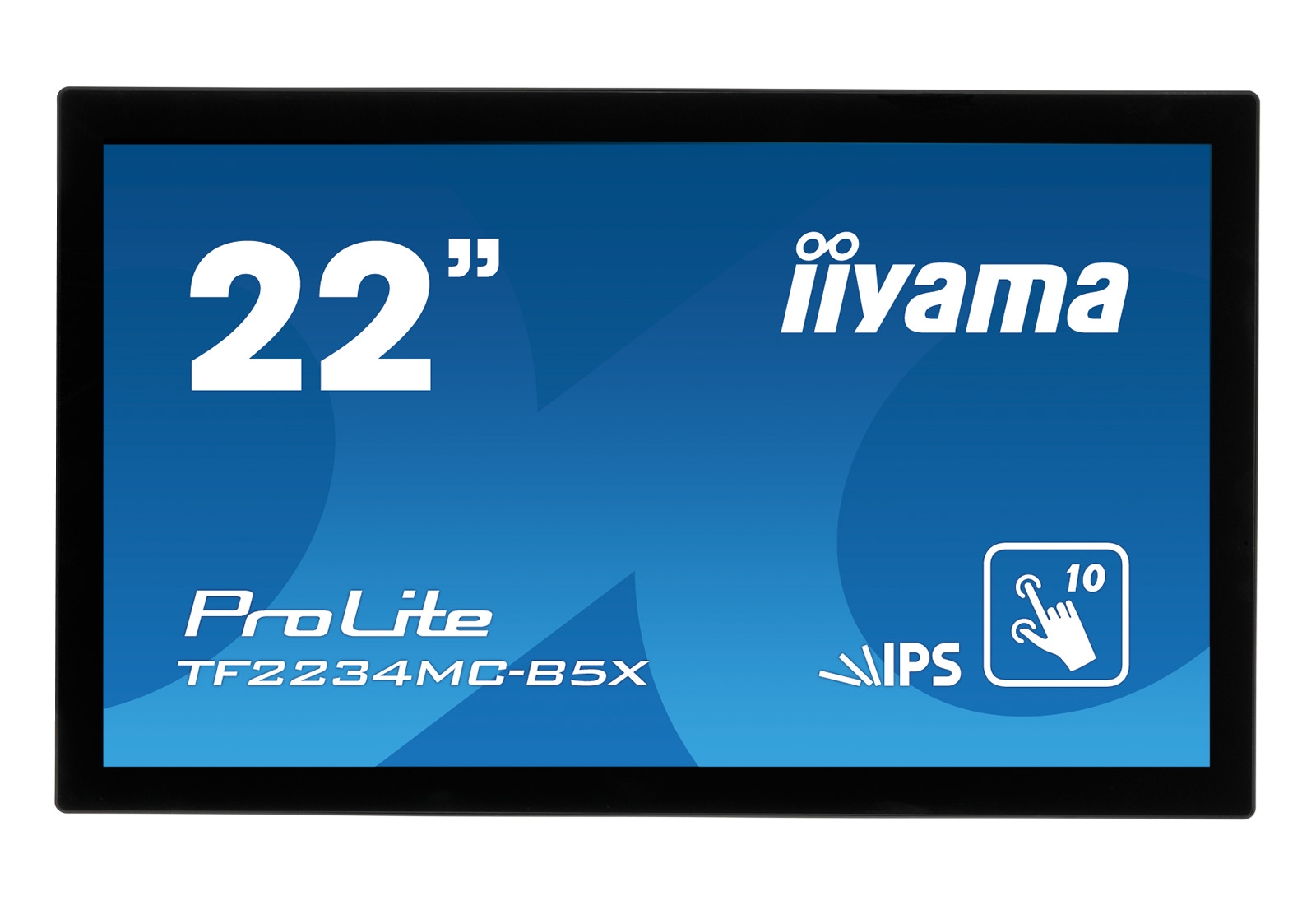

iiyama ProLite TF2234MC-B5X

10pt touch Open Frame monitor with IPS panel

ProLite TF2234MC-B5X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF2234MC is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.

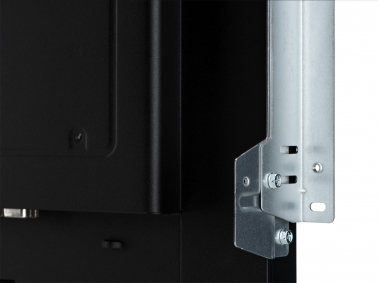

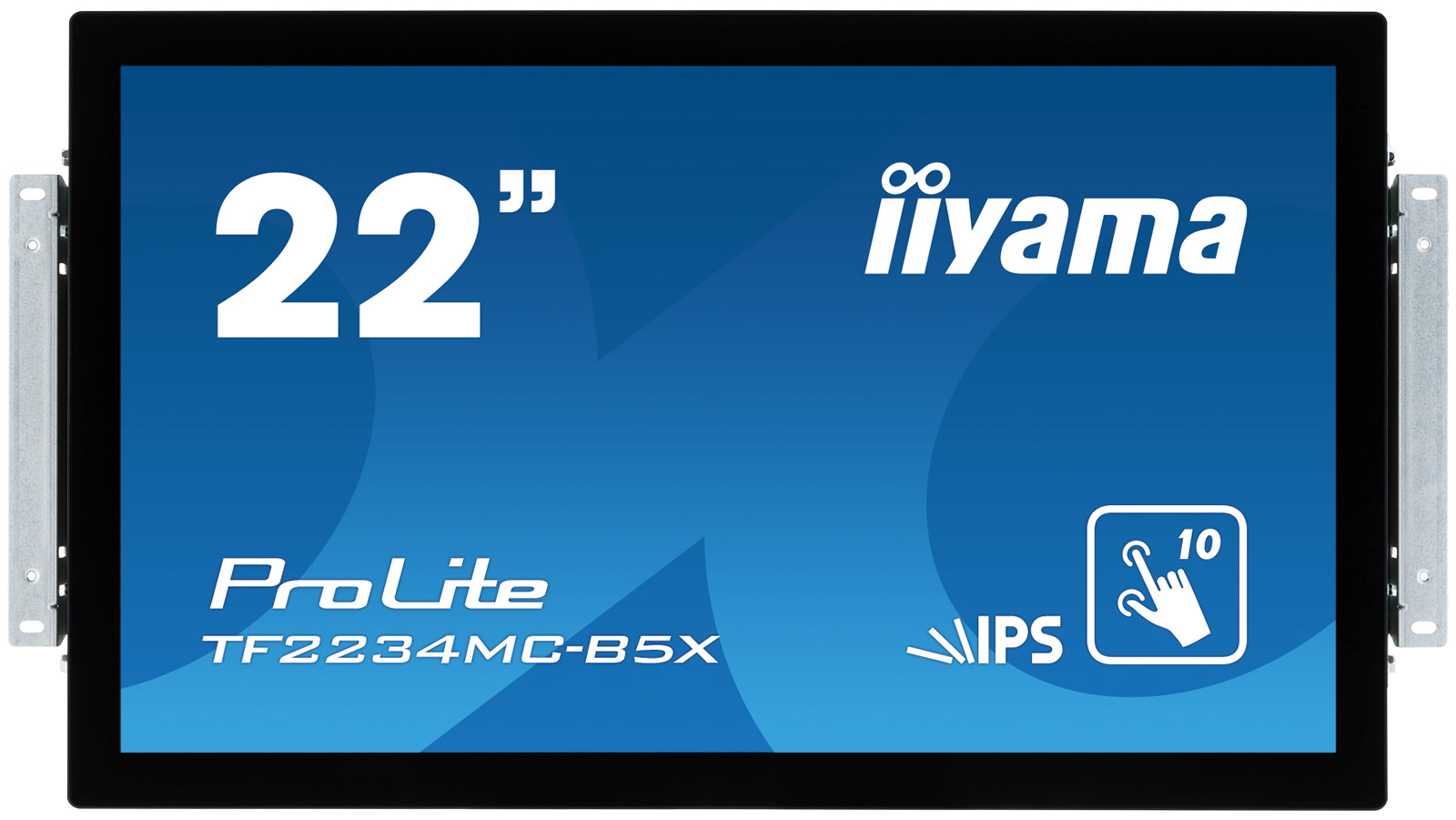

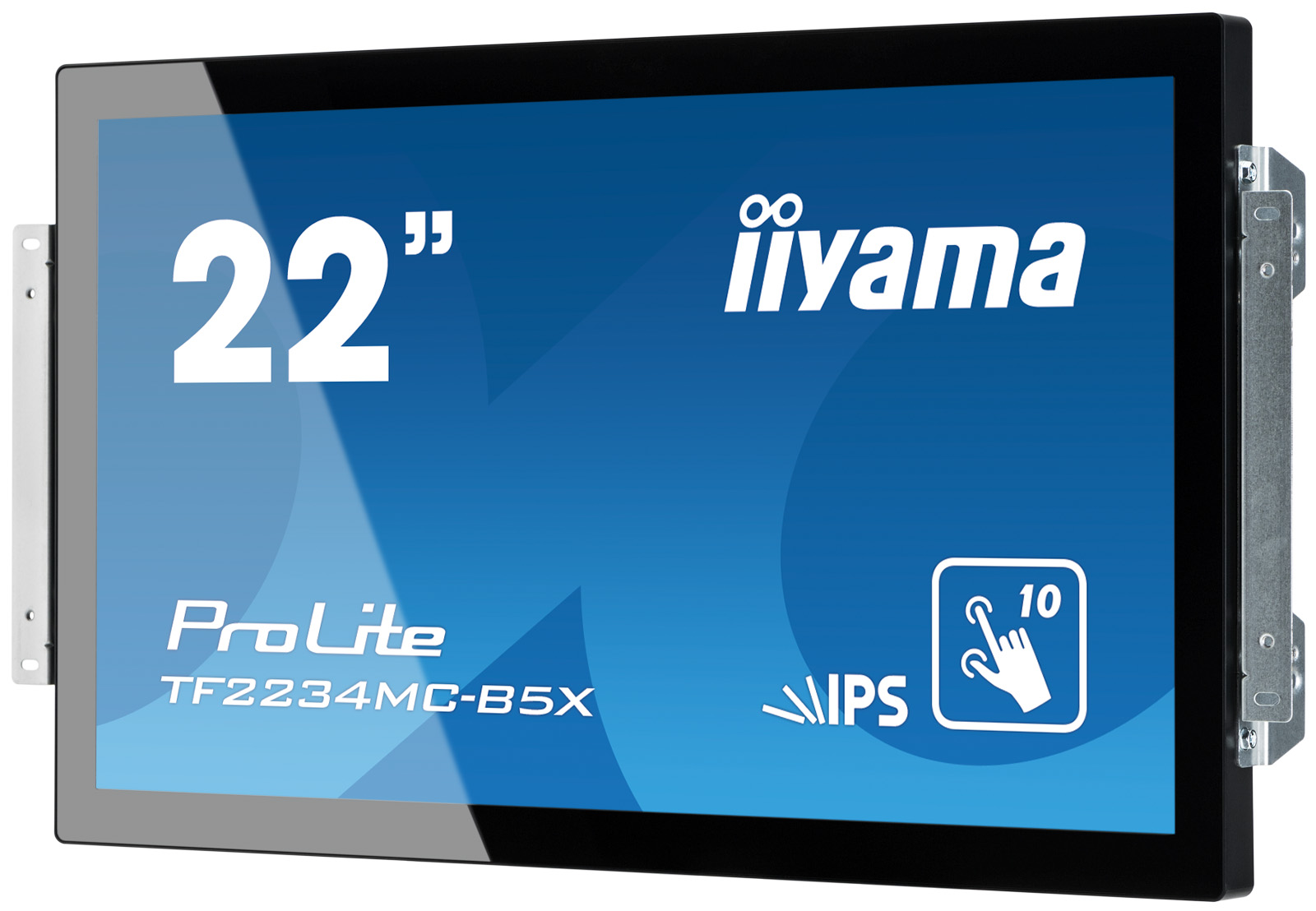

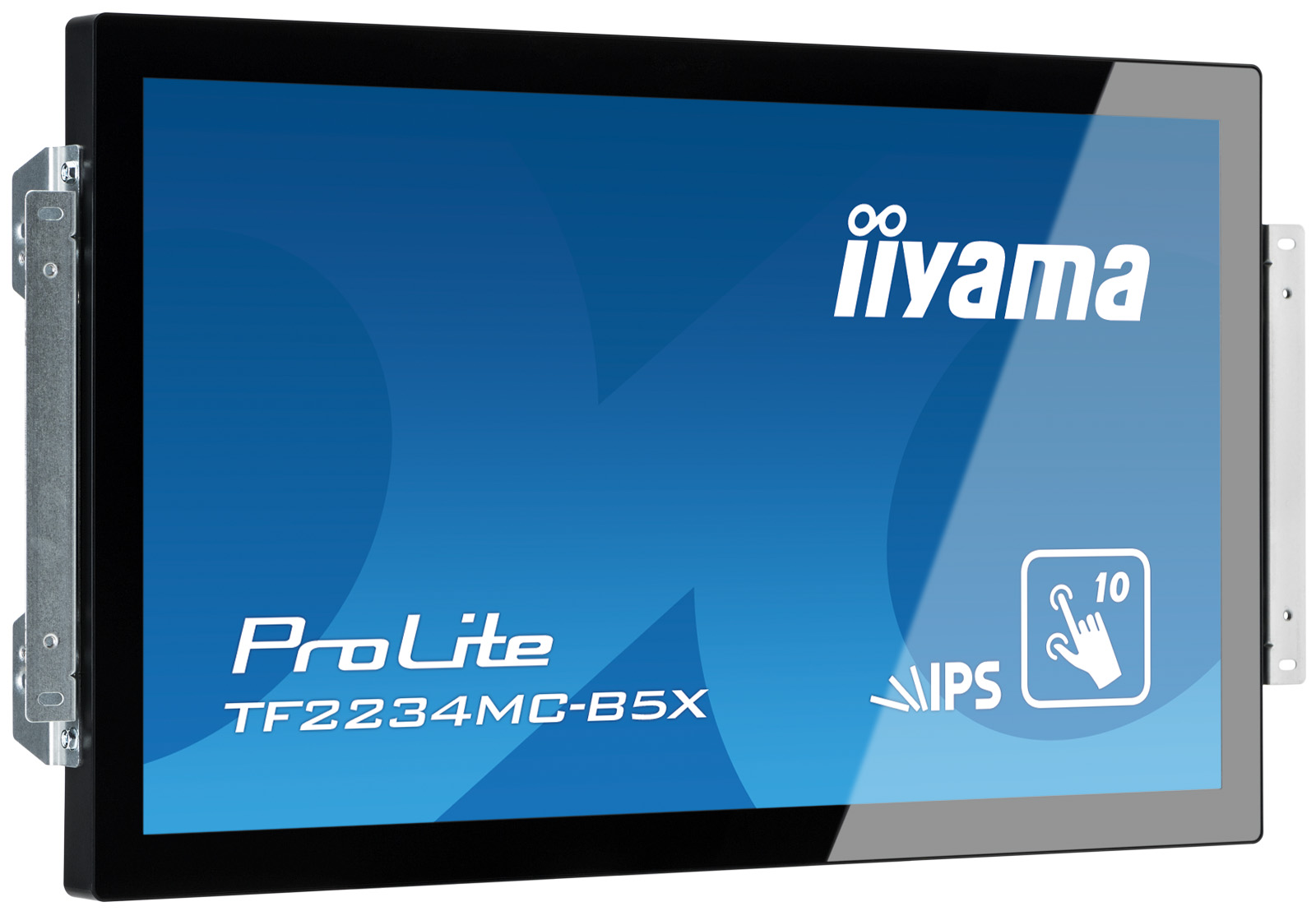

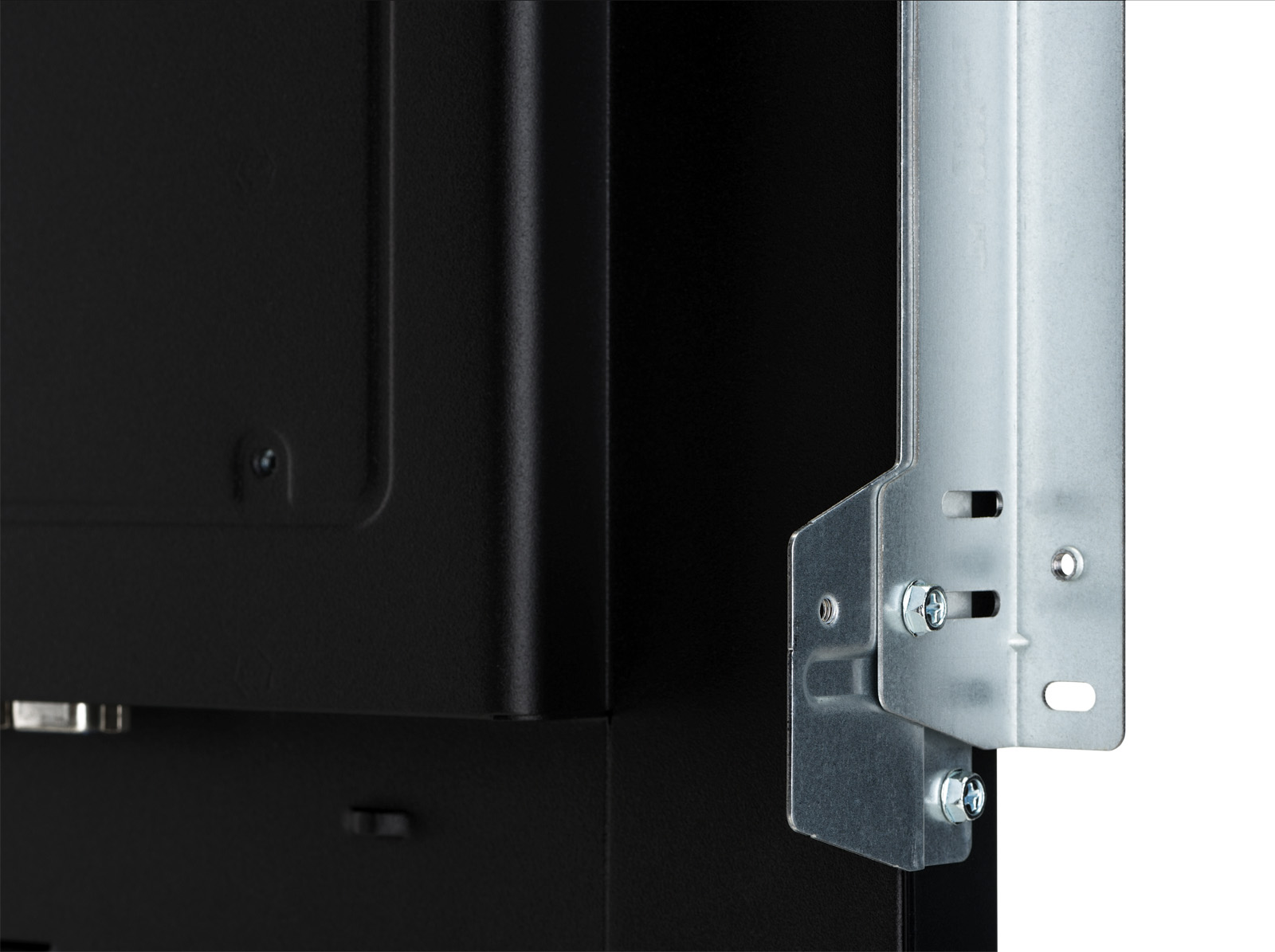

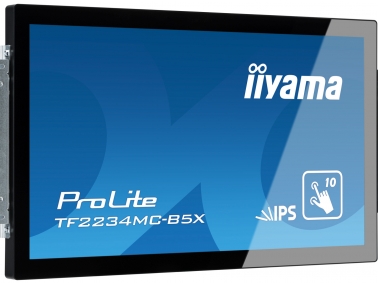

For ease of integration, the TF2234MC-B5X can be equipped with optional external mounting brackets OMK1-1 (offered separately).


Colour option
iiyama ProLite TF2234MC-B5X
Device type
Open frame touchscreen monitor
iiyama ProLite TF2234MC-B5X
Touch technologies
Projected Capacitive
Diagonal size
Aspect ratio
Active area (mm)
476.6 x 268.1
Width (mm)
Height (mm)
Depth (mm)
Net weight
4.4 kg
1920 x 1080
Brightness (sole LCD panel)
250 cd/m²
Brightness (Pro. Cap)
225 cd/m²
Response time
8 ms
Viewing angle
horizontal: 89°, vertical: 89°
Contrast ratio
Video input - connector
VGA, HDMI, DisplayPort
Touchscreen interface
Power consumption (typical)
Power supply - type
Power supply - voltage

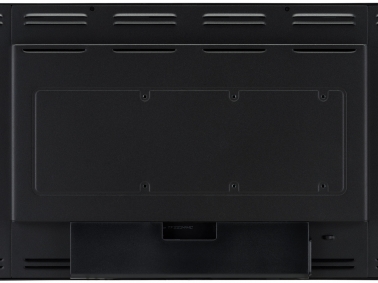

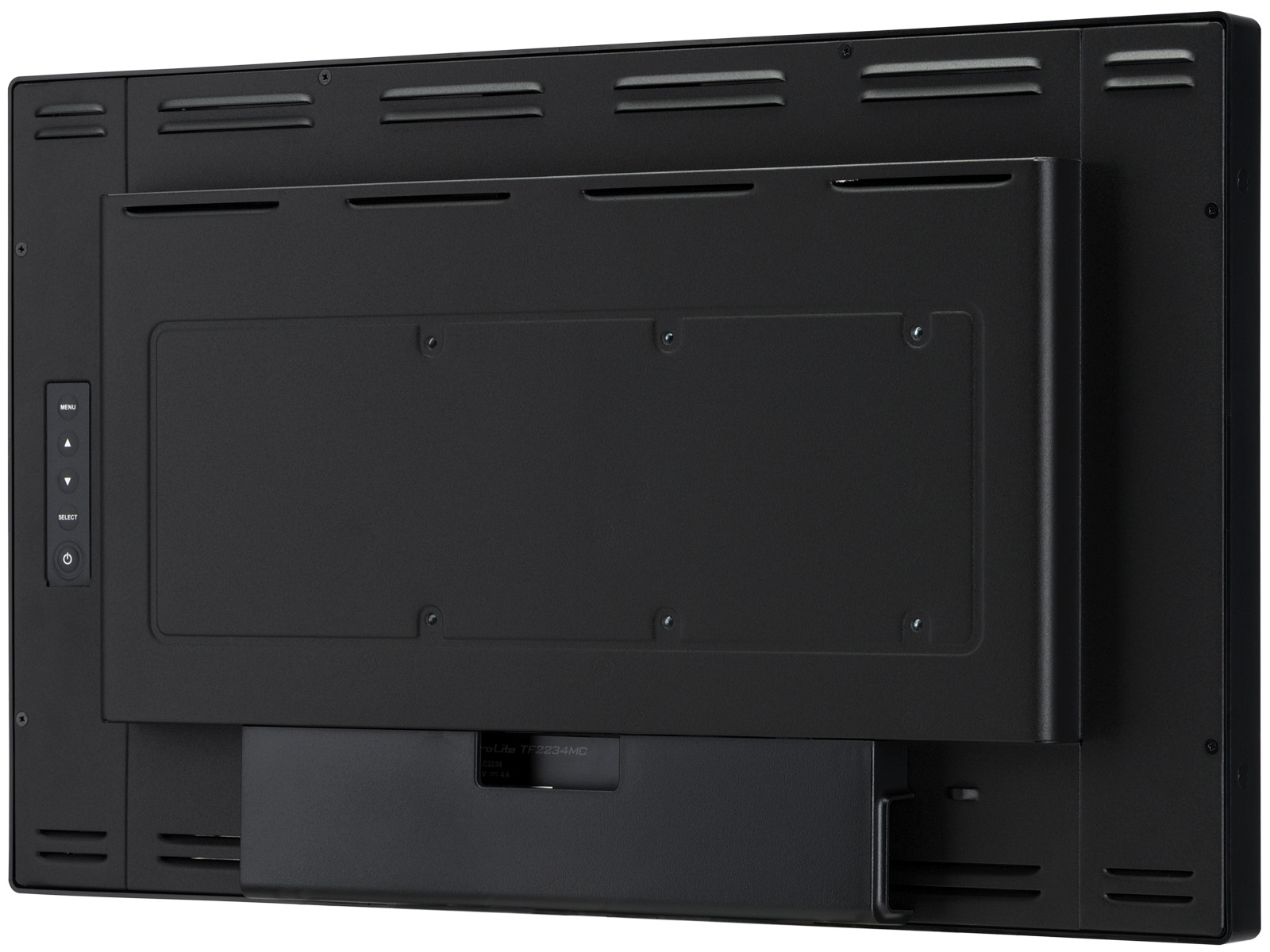

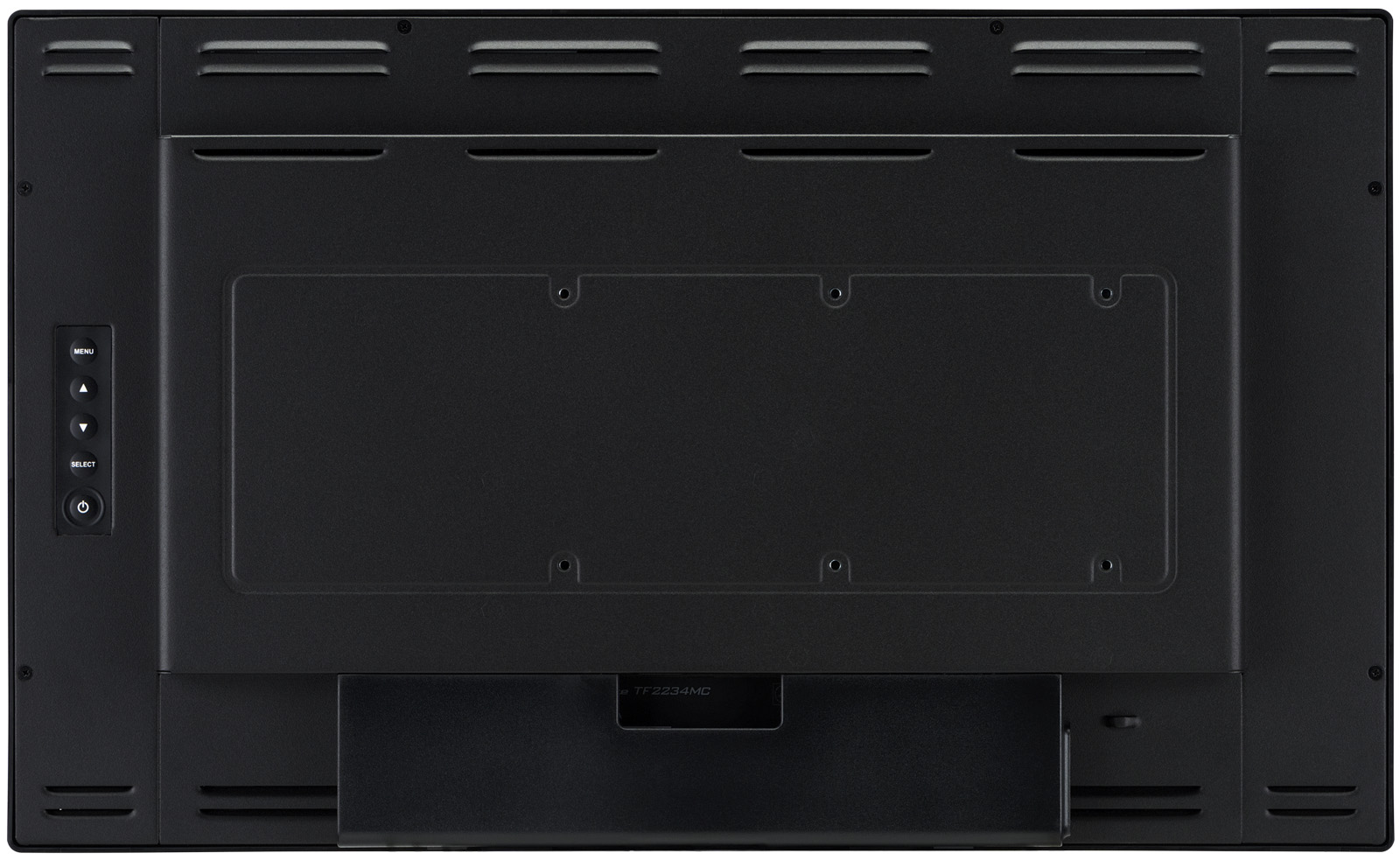

Assembly options - Assembly without the base
VESA 100 mm
Assembly options - available accessories
Mounting brackets (not included)
36 months
