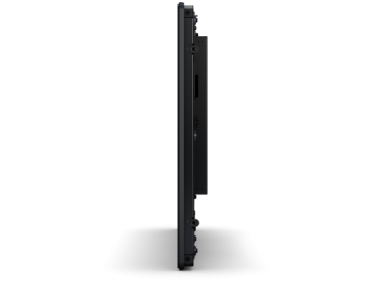

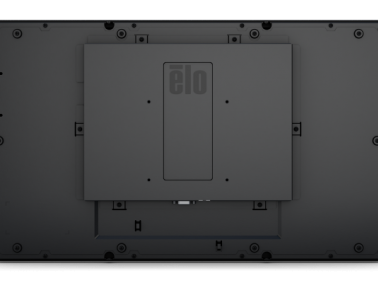

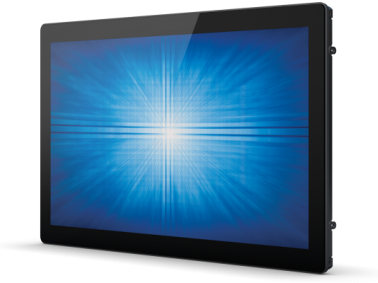

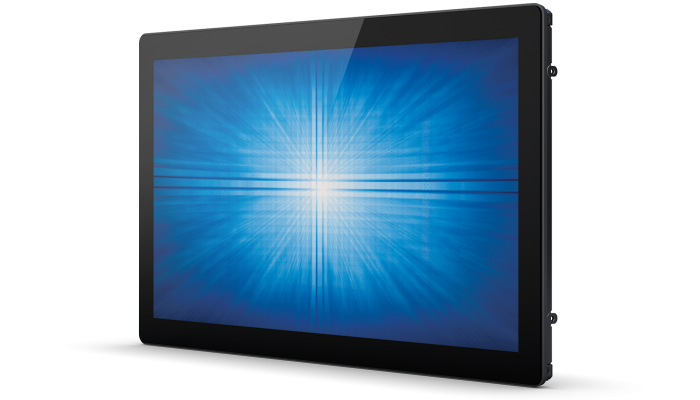

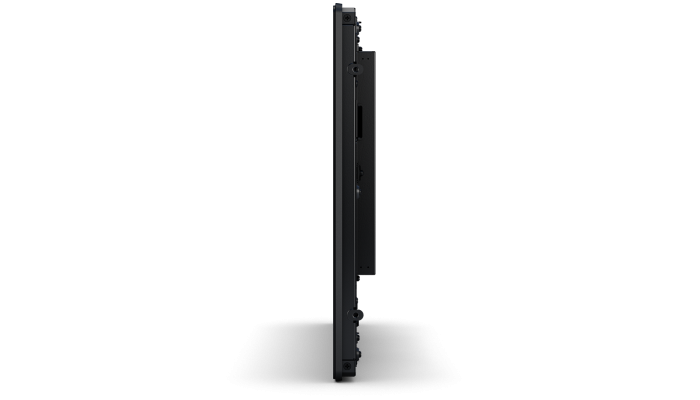

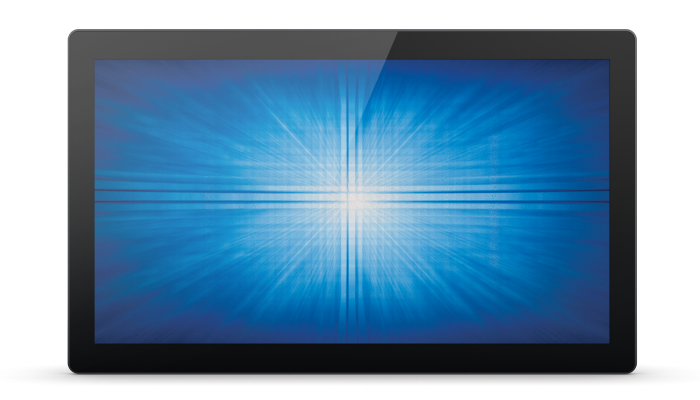

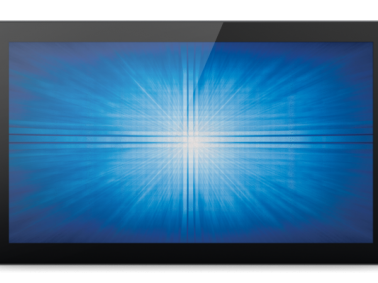

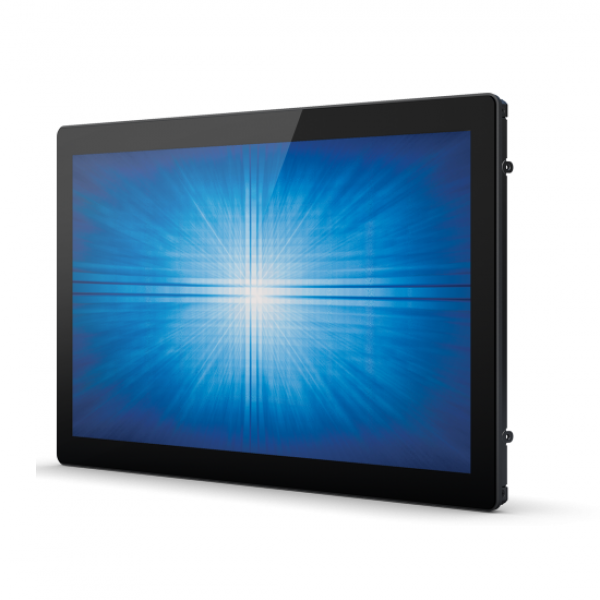

Elo 2295L

21.5" open frame touchscreen monitor from Elo 90-series with widescreen aspect ratio (1093L/1593L/2094L/2293L/2294L/2494L/2794L).
90-series devices are intended for continuous work and meet the requirements of the industrial environment (light industry class).

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link

Device type

Open frame touchscreen monitor

Model

Elo Touch Solutions 2295L

Colours

Black

Touch technologies

Projected Capacitive

Diagonal size

21.5"

Aspect ratio

16:9

Active area (mm)

476.06 x 267.79

Width (mm)

516

Height (mm)

311

Depth (mm)

46.9

Net weight

5.41 kg

Gross weight

8.6 kg

Resolution

1920 x 1080

Brightness (sole LCD panel)

400 cd/m2

Brightness (Pro. Cap)

360 cd/m2

Response time

14 ms

Viewing angle

horizontal: 89°, vertical: ±89°

Contrast ratio

1000:1

Video input - connector

HDMI
VGA
DisplayPort

Touchscreen interface

USB

Power consumption (typical)

25W

Power supply - type

External (offered separately)

Power supply - voltage

12V

MTBF

50 000 hours (demonstrated)

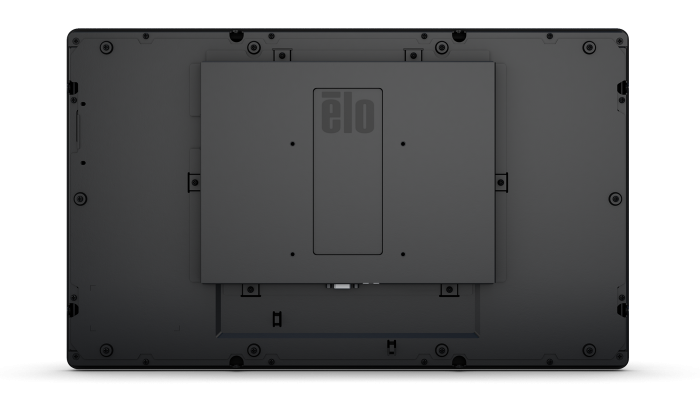

Assembly options - Assembly without the base

VESA 100 mm

Assembly options - available accessories

Mounting brackets (included)

Warranty

36 months

Regulatory approvals and declarations
