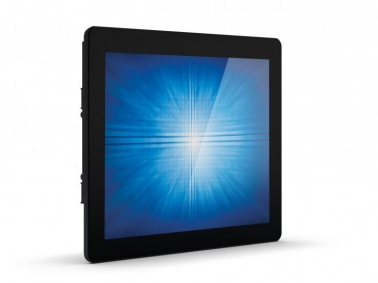

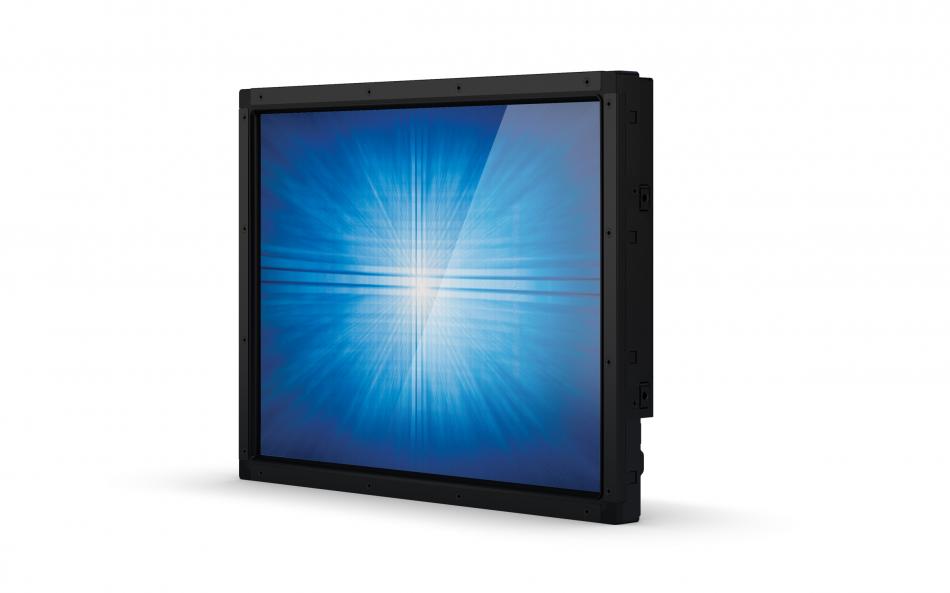

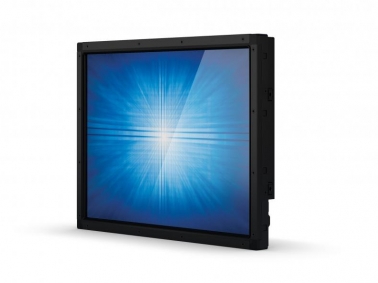

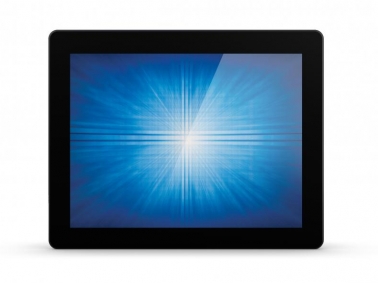

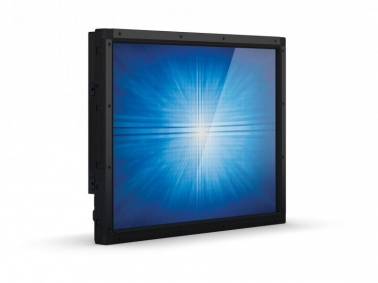

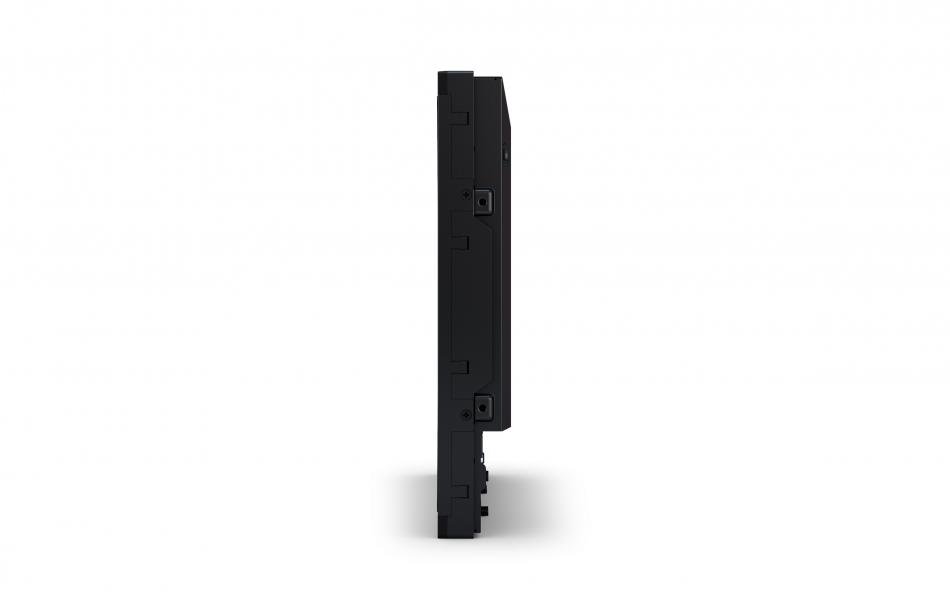

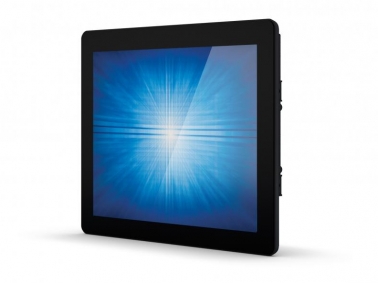

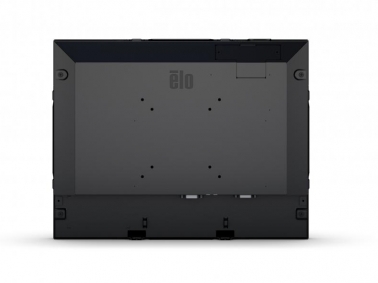

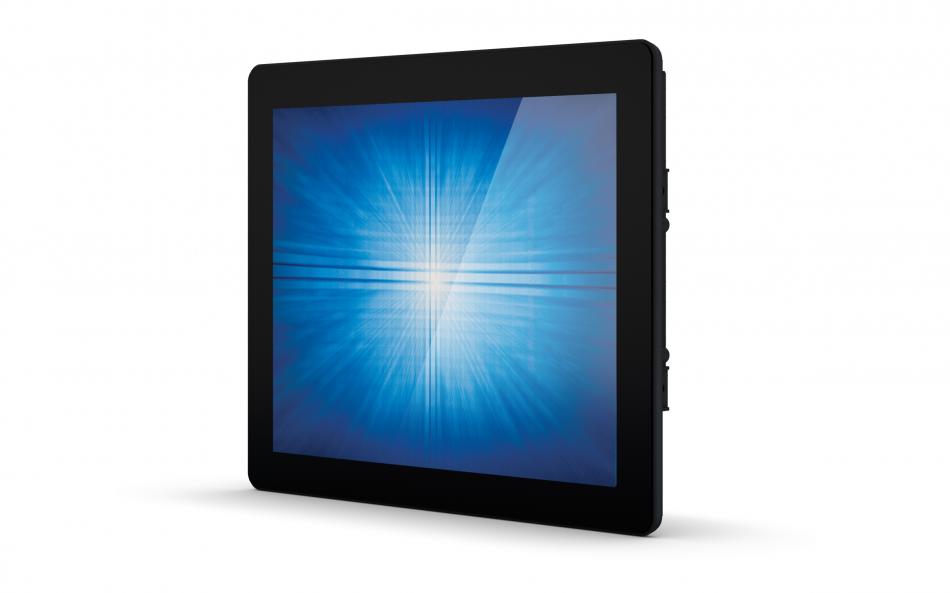

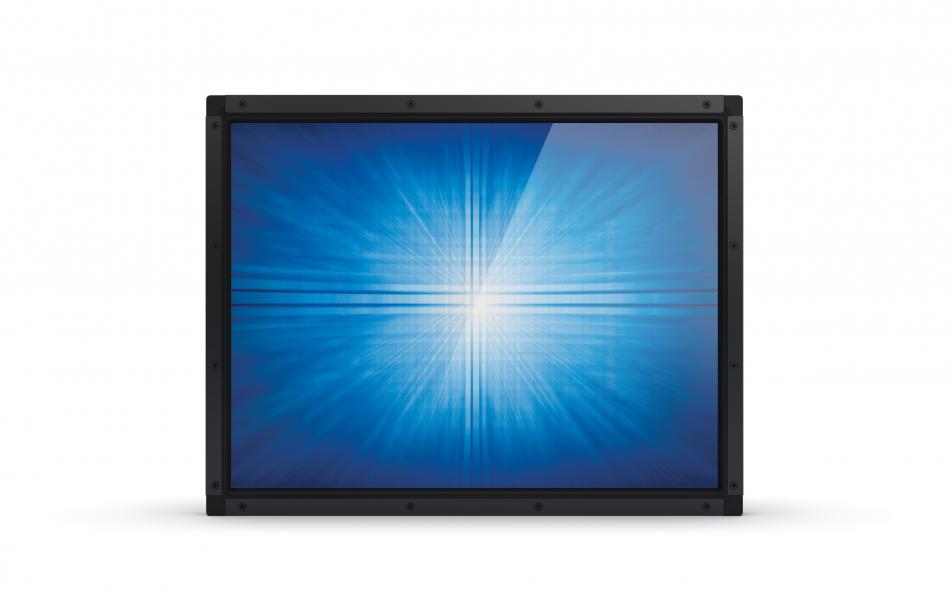

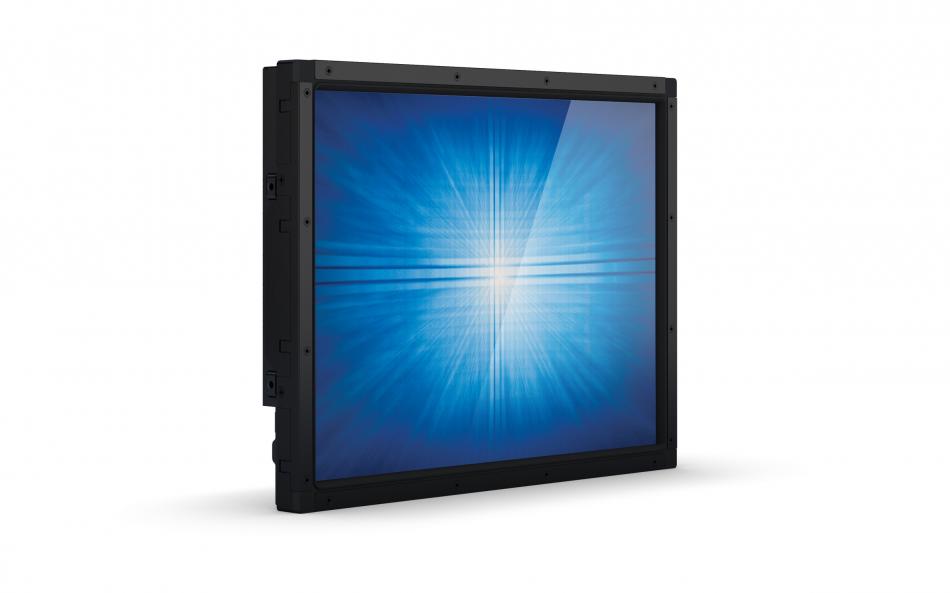

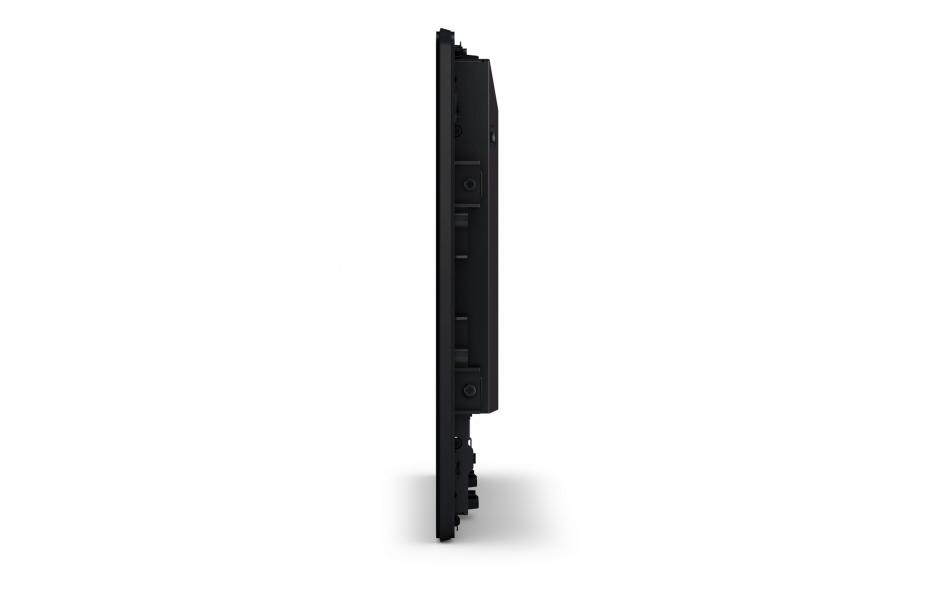

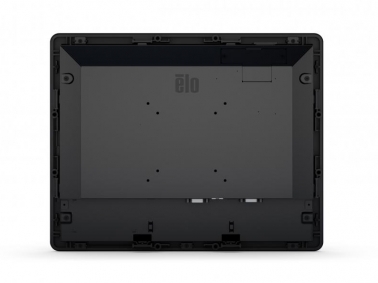

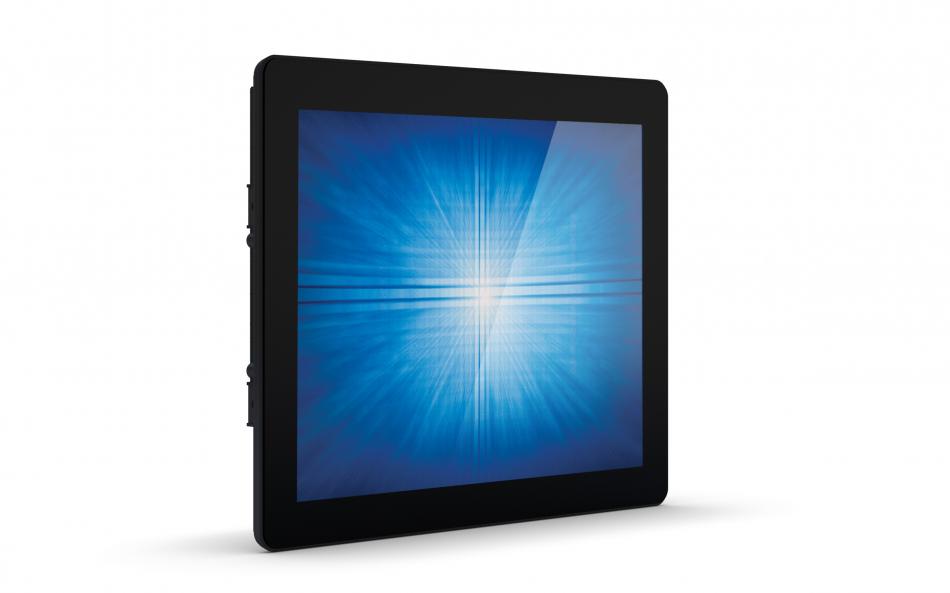

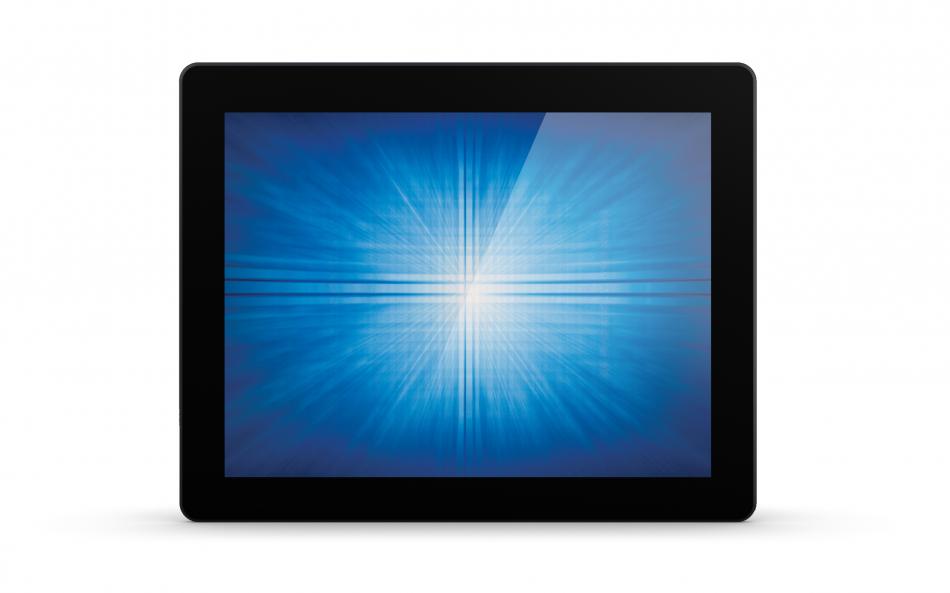

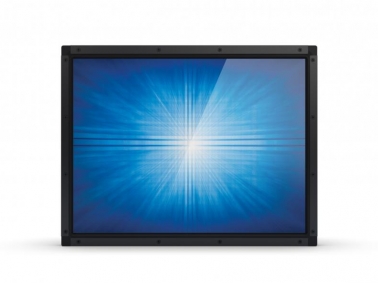

ELO 1590L

15" open frame touchscreen monitor from Elo 90-series with standard aspect ratio (1291L/1590L/1598L/1790L/1990L/1991L)).
90-series devices are intended for continuous work and meet the requirements of the industrial environment (light industry class).

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link



Colour option
ELO 1590L
Device type
Open frame touchscreen monitor
Model
Elo Touch Solutions 1590L
Colours
Black
Touch technologies
  • IntelliTouch
  • AccuTouch
  • SecureTouch
  • Projected Capacitive
Diagonal size
15
Aspect ratio
4:3
Active area (mm)
304.1 x 228.1
Width (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 336.4
  • Projected Capacitive: 358
Height (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 264.4
  • Projected Capacitive: 284.9

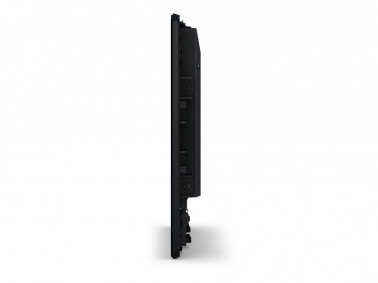

Depth (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 41.9
  • Projected Capacitive: 35.6
Net weight
2.9 kg
Gross weight
4.7 kg
Resolution
1024 x 768
Other supported resolutions
640 x 480, 720 x 400, 800 x 500, 800 x 600, 1024 x 768
Brightness (sole LCD panel)
300 cd/m2
Brightness (IntelliTouch / iTouch)
270 cd/m2
Brightness (AccuTouch)
240 cd/m2
Brightness (SecureTouch)
264 cd/m2
Brightness (Pro. Cap)
270 cd/m2
Response time
23 ms
Viewing angle
horizontal: 80°, vertical: ±70/80°
Contrast ratio
800:1
Input video format
  • Analog
  • Digital
Video input - connector
Mini D-Sub 15-Pin VGA, DisplayPort V1.1a, HDMI 1.3
Touchscreen interface
USB
Power consumption (typical)
12.5W
Power supply - type
External (offered separately)
Power supply - voltage
12V
MTBF
50 000 hours (demonstrated)
OSD - OSD control type
Digital
OSD - buttons
Menu, Up, Down, Select, Power
OSD - functions
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
OSD - OSD public functions
Lockouts: OSD, Power

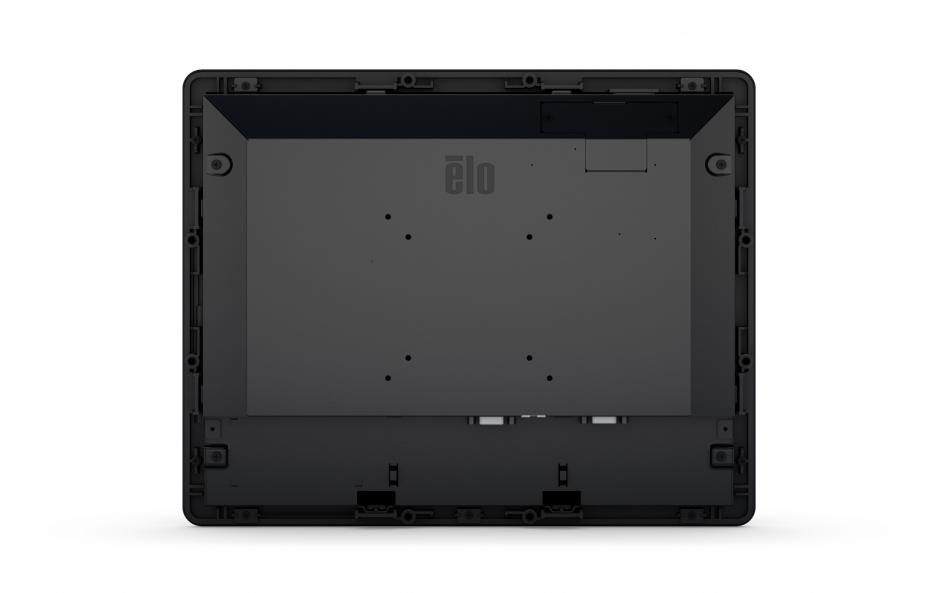

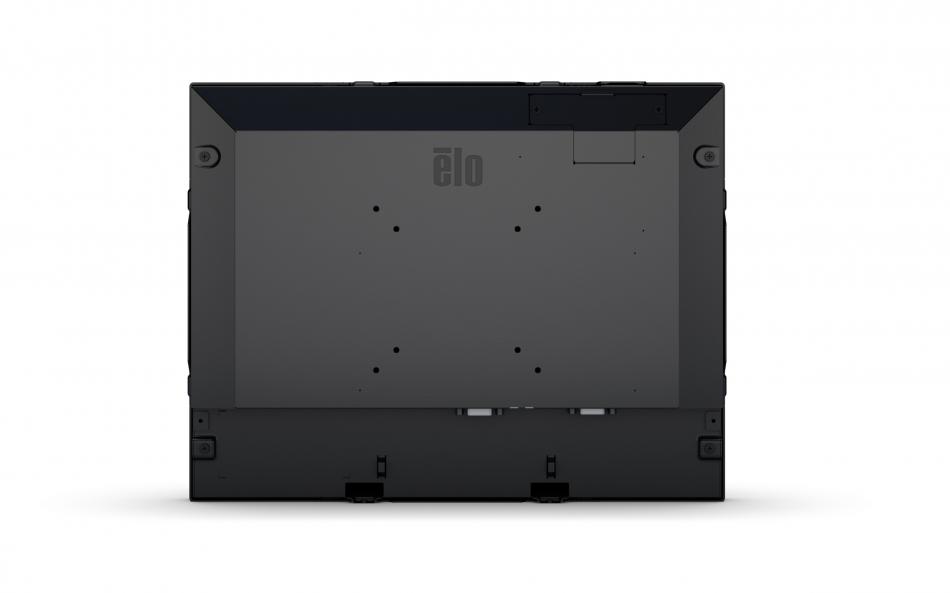

Assembly options - Assembly without the base
  • IntelliTouch, AccuTouch, SecureTouch: VESA 75 mm lub 100 mm
  • Projected Capacitive: VESA 75 mm
Assembly options - available accessories
Mounting brackets (included)
Warranty
36 months
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
Sealability
  • Touchscreen sealed to bezel
  • Touchscreen sealed to LCD
