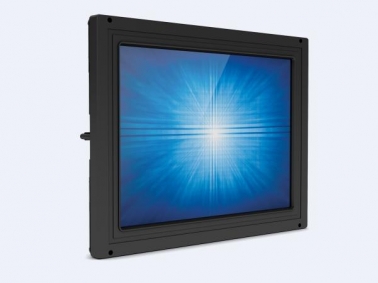

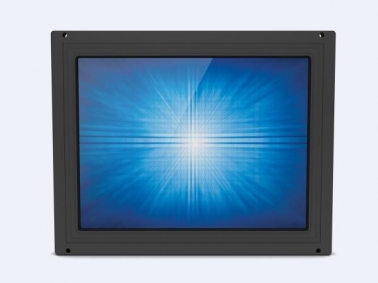

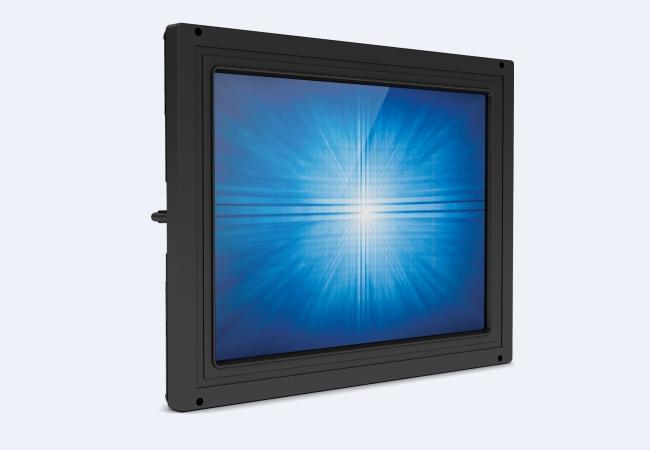

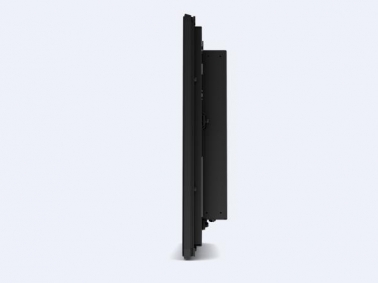

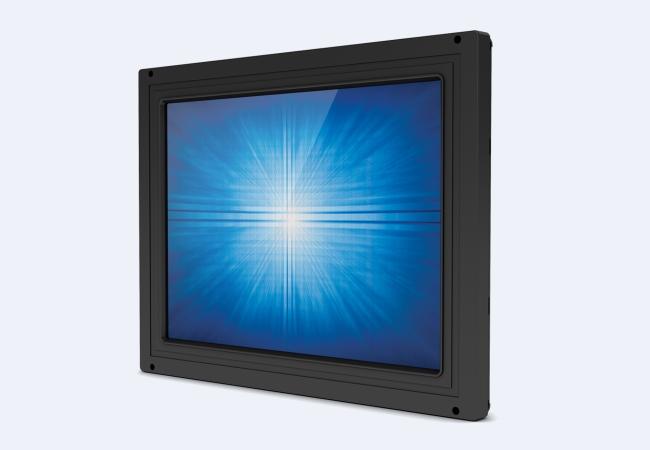

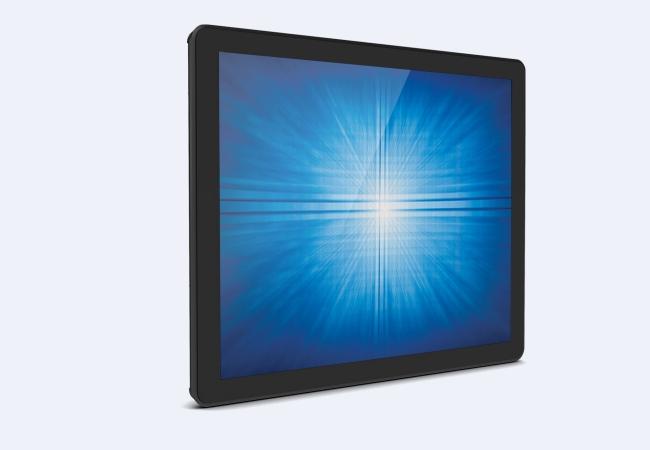

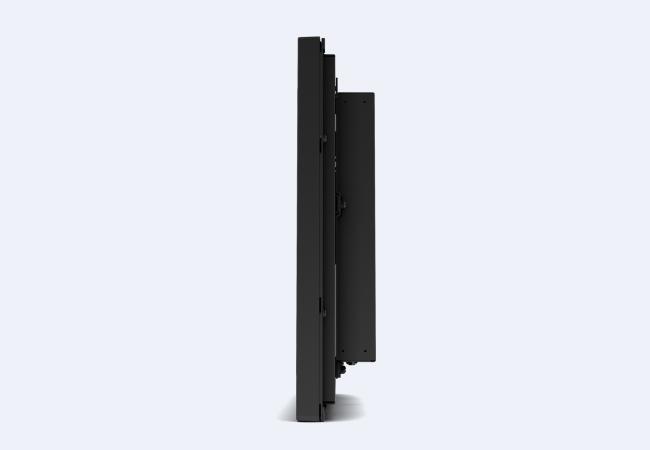

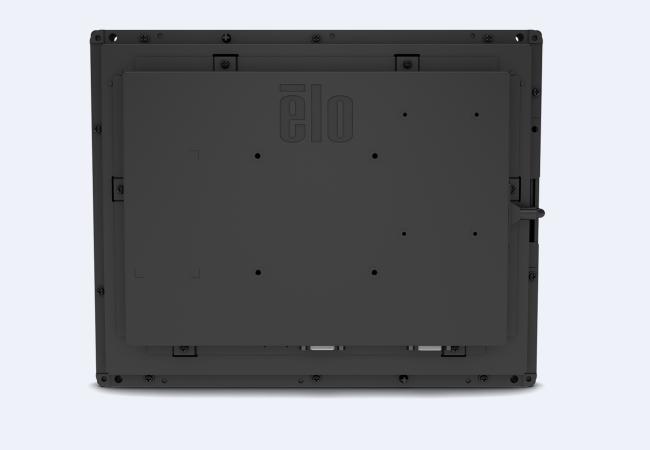

ELO 1291L

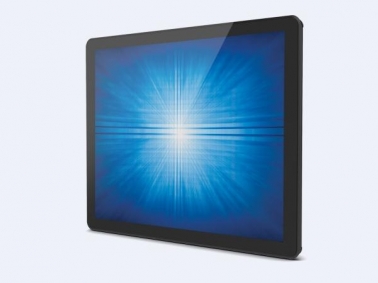

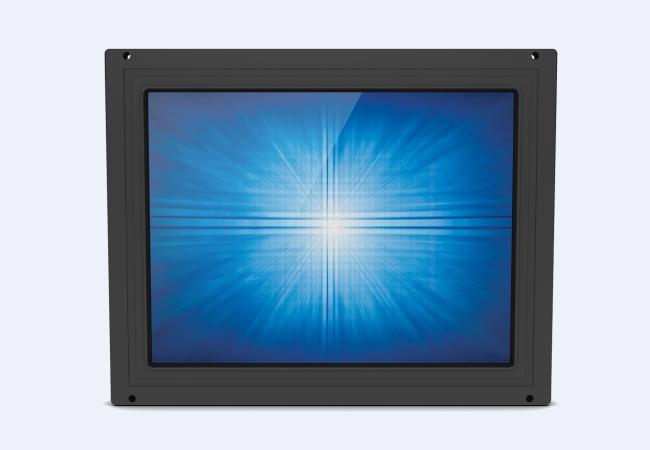

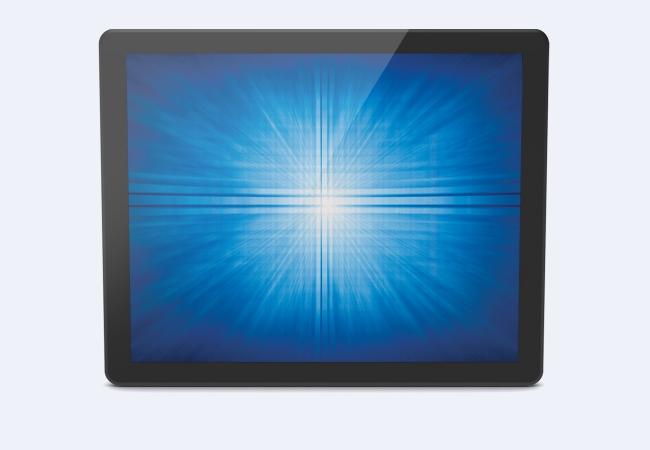

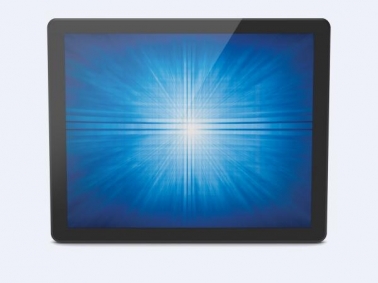

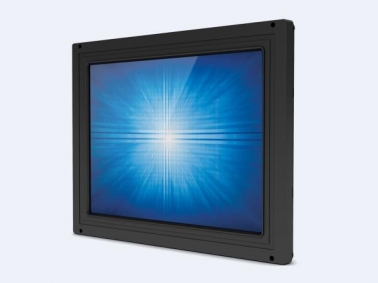

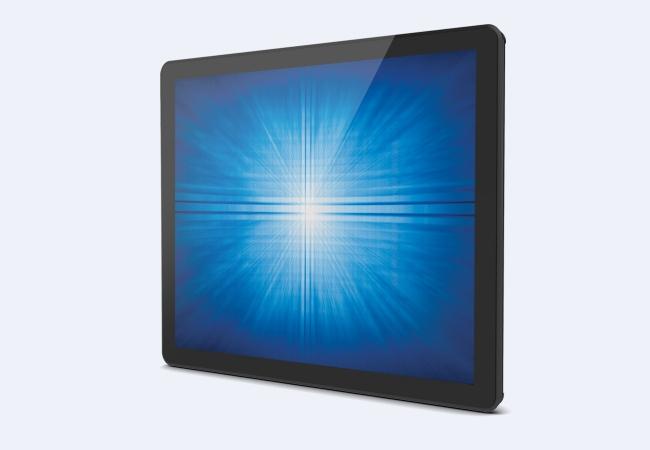

12.1" open frame touchscreen monitor from Elo 90-series with standard aspect ratio (1291L/1590L/1598L/1790L/1990L/1991L).
E-series devices are intended for continuous work and meet the requirements of the industrial environment (light industry class).

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link



Colour option
Device type
Open frame touchscreen monitor
Model
Elo Touch Solutions 1291L
Colours
Black
Touch technologies
  • IntelliTouch
  • Projected Capacitive
Diagonal size
12.1
Aspect ratio
4:3
Active area (mm)
246 x 184.5
Width (mm)
  • IntelliTouch: 302.5
  • Projected Capacitive: 302.5
Height (mm)
  • IntelliTouch: 242.2
  • Projected Capacitive: 242
Depth (mm)
  • IntelliTouch: 49.8
  • Projected Capacitive: 44.9
Net weight
2.65 kg
Gross weight
4.75 kg
Resolution
800 x 600
Other supported resolutions
640 x 480, 800 x 500, 800 x 600
Brightness (sole LCD panel)
450 cd/m2
Brightness (IntelliTouch / iTouch)
405 cd/m2
Brightness (Pro. Cap)
405 cd/m2
Response time
25 ms
Viewing angle
horizontal: 89°, vertical: ±89°
Contrast ratio
1500:1
Input video format
  • Analog
  • Digital
Video input - connector
Mini D-Sub 15-Pin VGA, DisplayPort V1.1a, HDMI 1.3
Touchscreen interface
USB
Power consumption (typical)
12.2W
Power supply - type
External (offered separately)
Power supply - voltage
12V
MTBF
50 000 hours (demonstrated)
OSD - OSD control type
Digital
OSD - buttons
Menu, Up, Down, Select, Power
OSD - functions
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
OSD - OSD public functions
Lockouts: OSD, Power

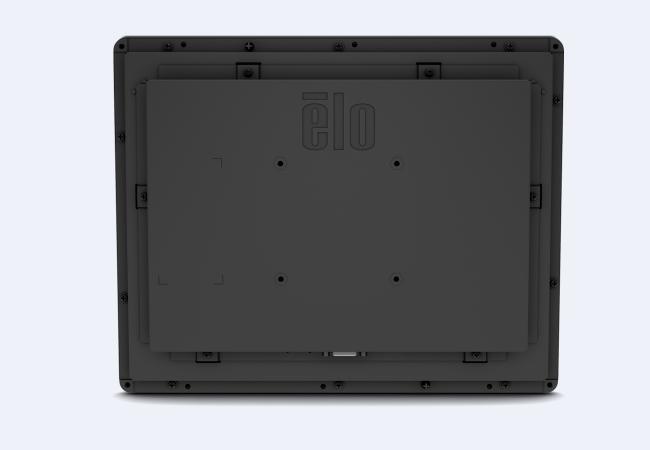

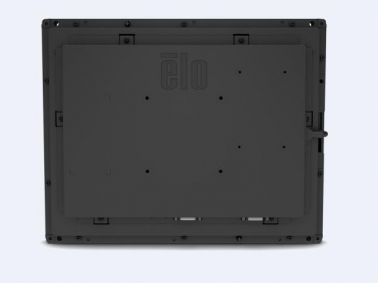

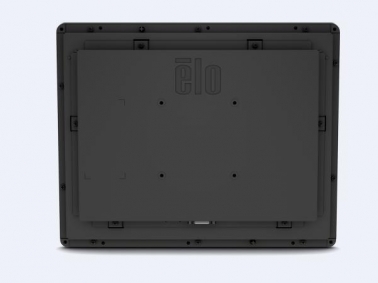

Assembly options - Assembly without the base
VESA 75mm
Assembly options - available accessories
Mounting brackets (included)
Warranty
36 months
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
Sealability
  • Touchscreen sealed to bezel
  • Touchscreen sealed to LCD
