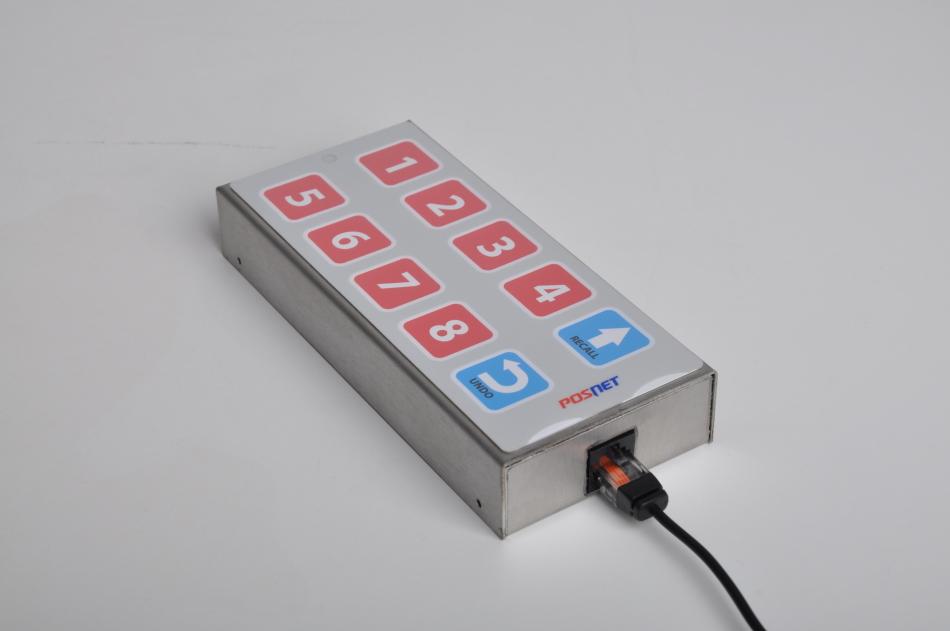

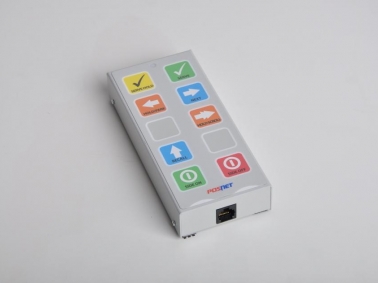

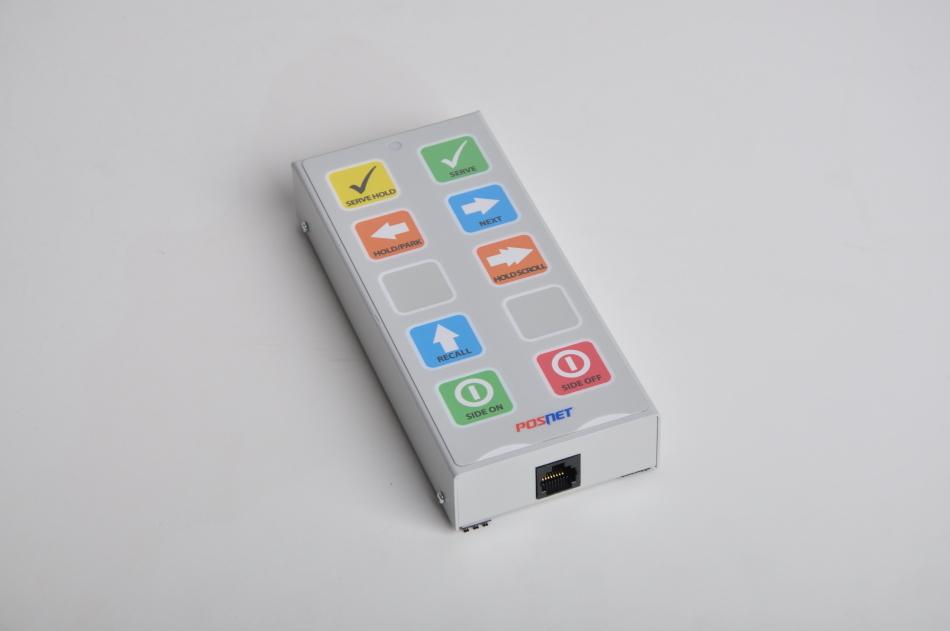

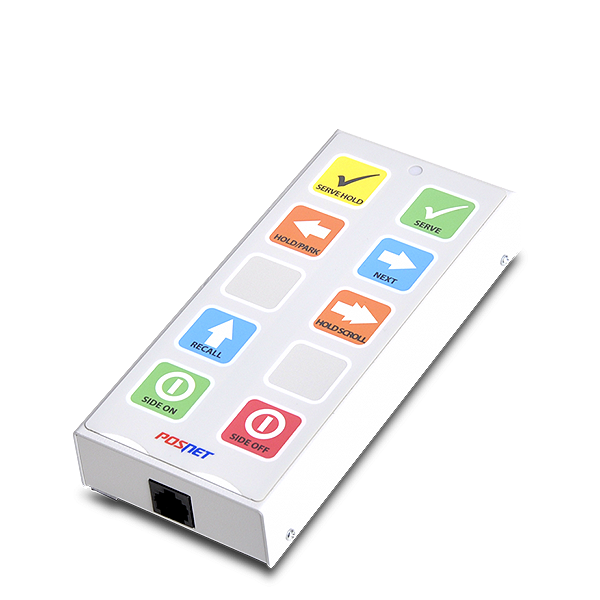

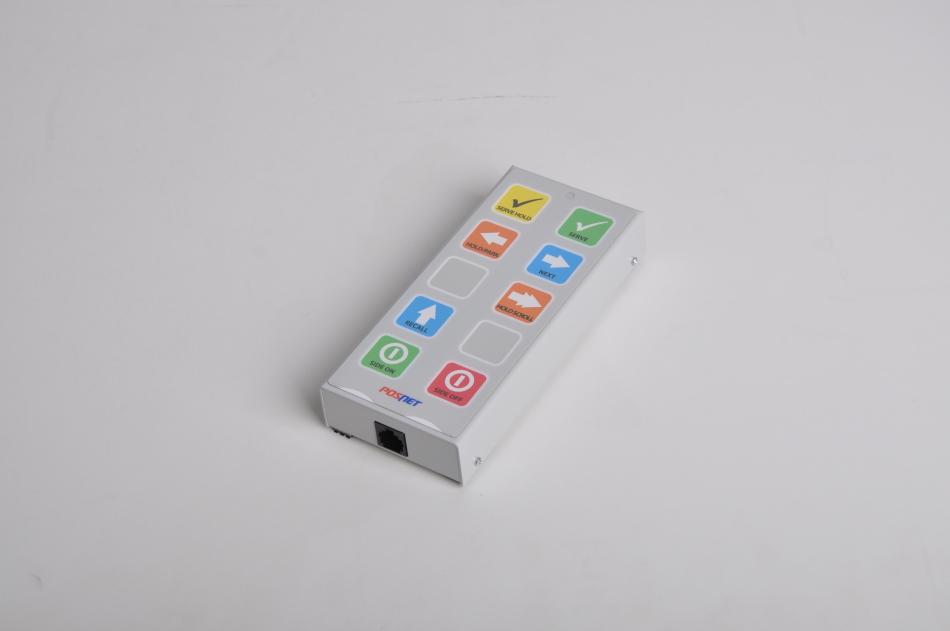

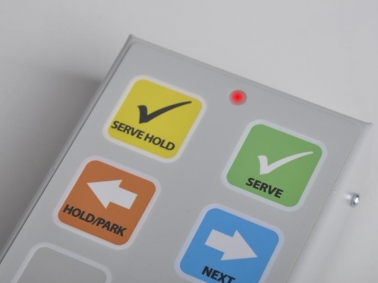

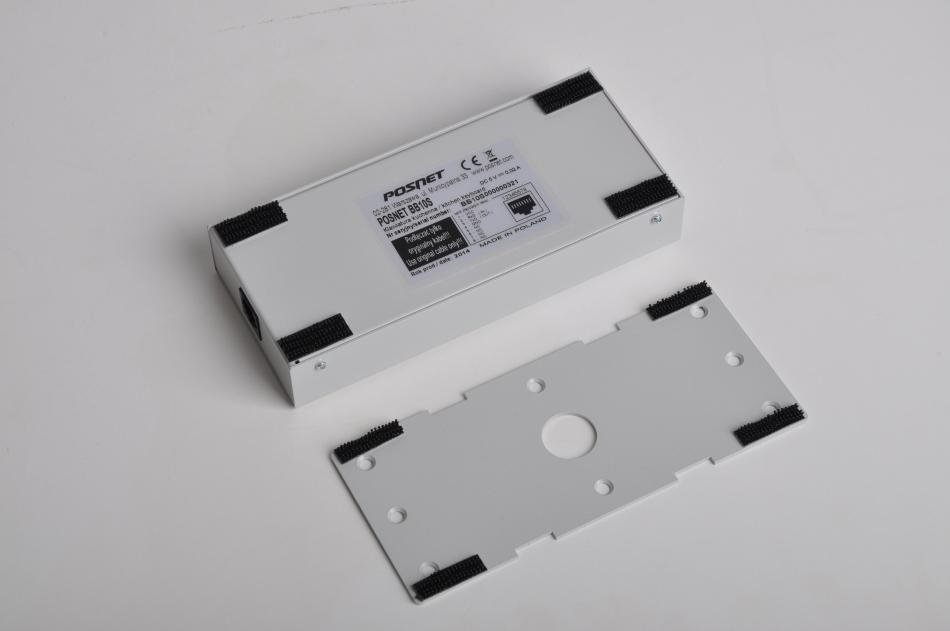

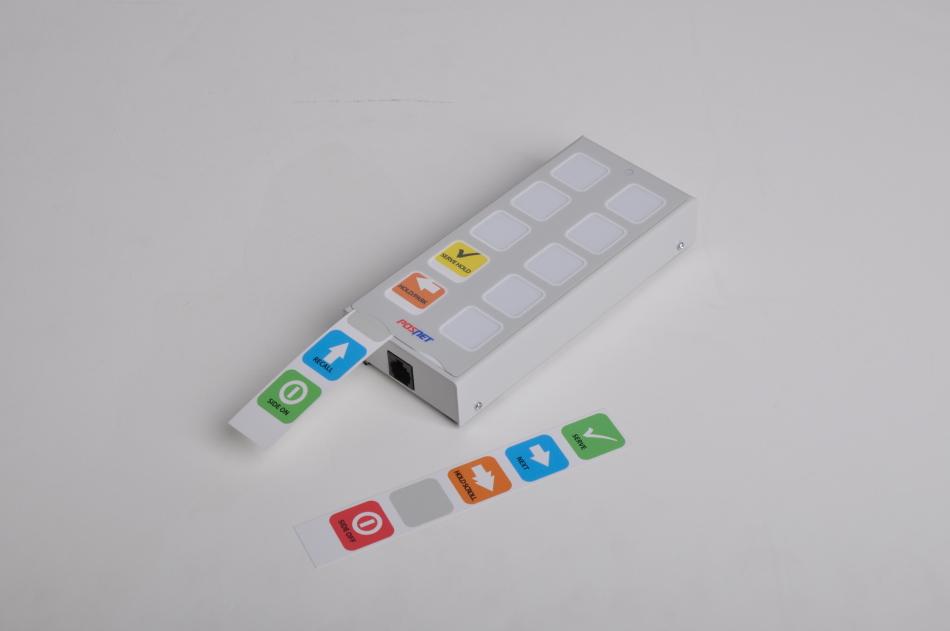

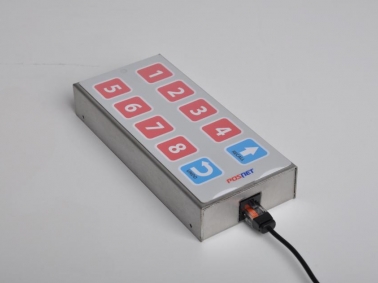

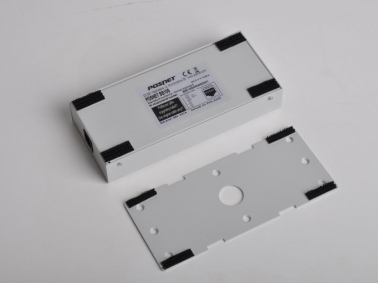

Kitchen keypad BB10S

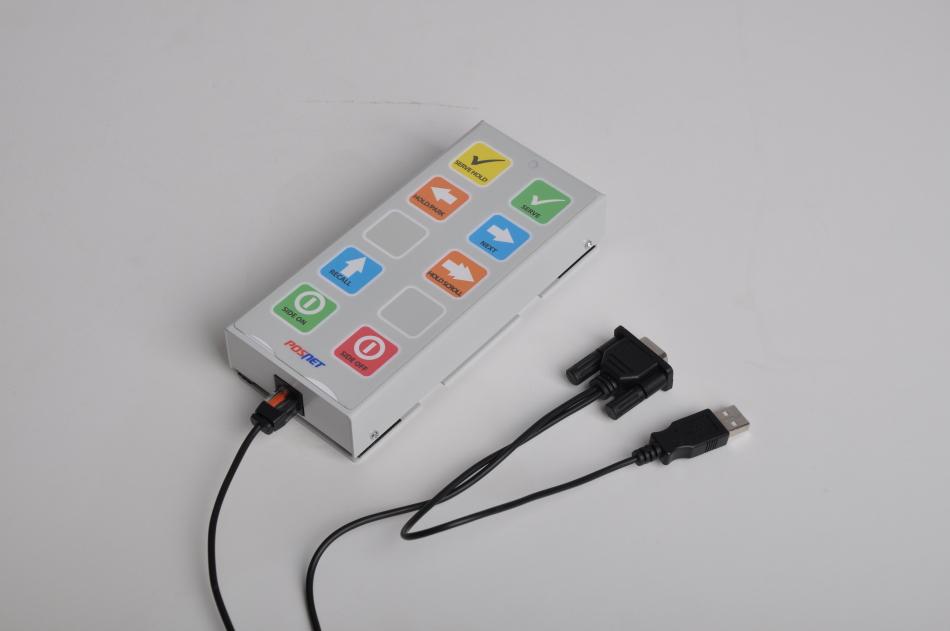

10-key, RS232, USB feeding. Specialist keypad dedicated for kitchen displays operation (eng. Kitchen Display Systems).

Colour option
Kitchen keypad BB10S

These types of solutions even more often replace traditional receipt printers used to print kitchen orders. BB10S keypad is used to manage the content of kitchen displays (accepting, queuing, and deleting orders).

High mechanical resistance, resistance to difficult environmental conditions, and ability to operate on cables up to 100 metres-long, making the BB10S keypad, often also can be applied in industrial conditions.

MOST CRUCIAL PRODUCT FEATURES

Before purchasing the keypad one should make sure that it cooperates with the KDS software held.

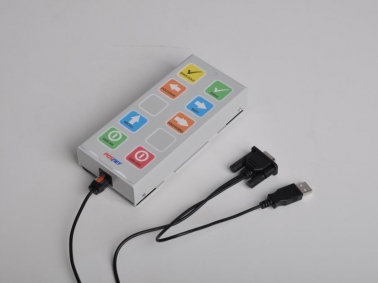

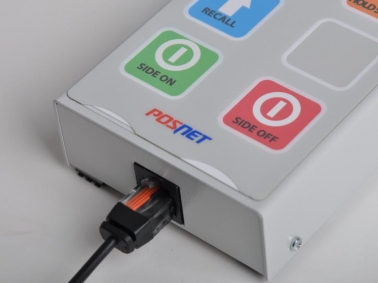

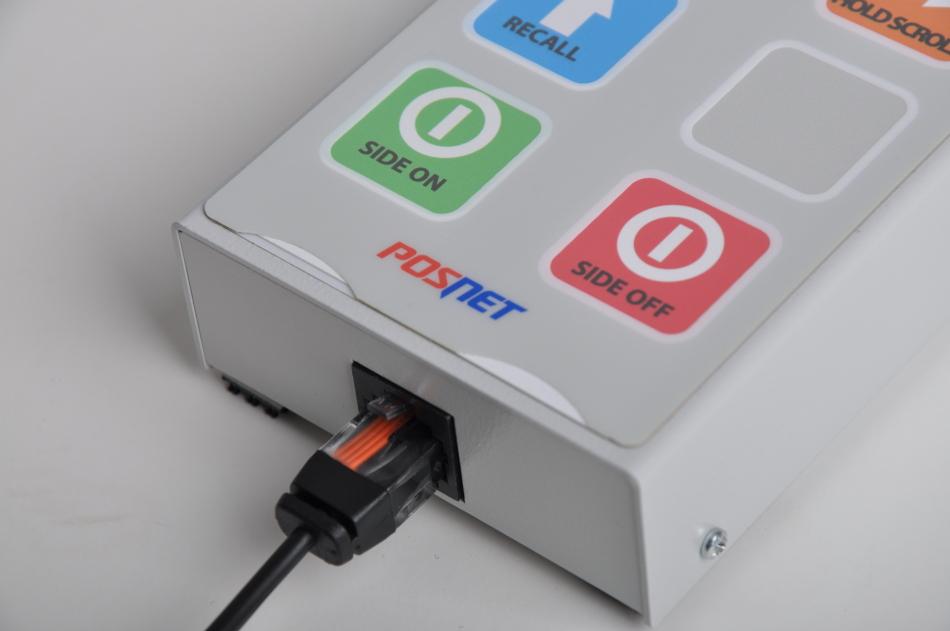

The keypad is connected to a computer using the RS232 port and communicates with the software using the serial interface. Upon pressing a key, a hexadecimal-expressed value is send which is later interpreted by a software installed on the computer. In case of attempts to connect the BB10S keypad to the software which will not communicate through a serial transmission or will not be able to interpret information send by BB10S, this solution shall not operate.

Applying virtual serial ports based on the USB system.

The BB10S keypad when communicating does not use advanced functions of the RS232 port allowing to apply RS232-USB converters. Due to high variety of this type of products on the market, Posnet does not guarantee compatibility of each of them.

Currently, the following converters have been testes and their accuracy of operation has been confirmed.

  • Manufacturer  Model Operating system
  • Unitek Y-105 Windows 7 PRO x64, Windows 8.1 PRO x64
  • ATEN UC-232A Windows 7 PRO x64, Windows 8.1 PRO x64
  • The MTTTY software, 4.11 version, has been used for testing.

Converter controllers have been collected independently by Windows Update.

Compatible software:

  • X2System (manufacturer: Adith technologies)
  • FoodSoft.KDS (manufacturer: FoodSoft.PL)
  • Simple Gastronomy (manufacturer: Koncept Systemy Informatyczne)
Przeznaczenie
Kitchen keypad dedicated for KDS service
Model
BB10S
Colour available
Light-grey (powder coating), inox (option)
Communication interface
Serial transmission in the RS232 standard
Transmission parameters
Port's speed: 1200 baud, data bits: 8, parity: none, stop bits: 1 or 2
Power supply

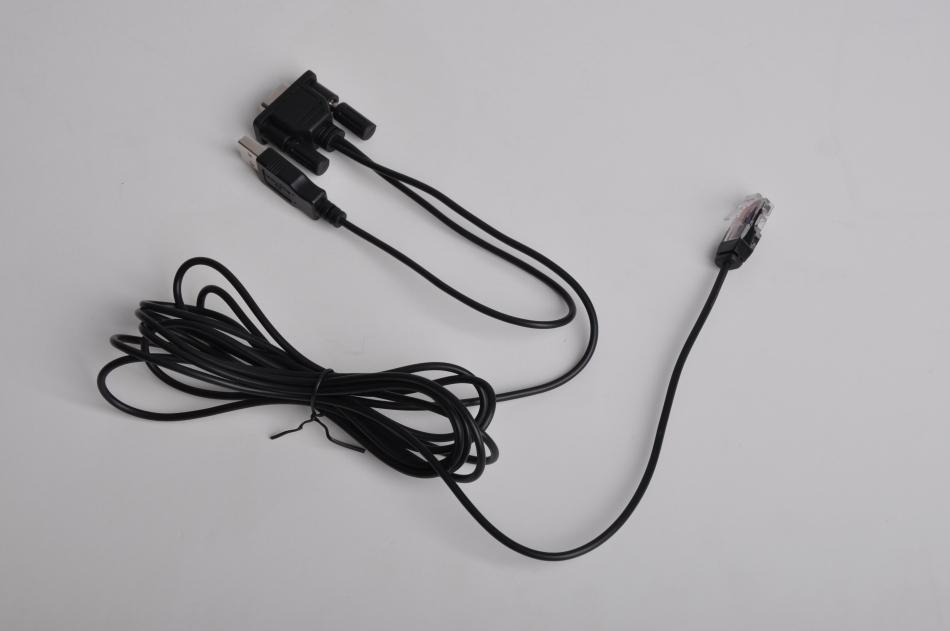

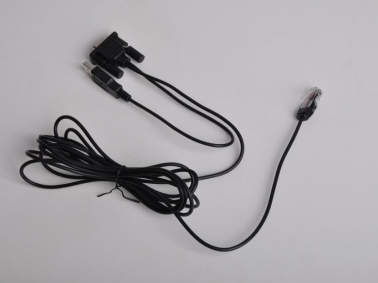

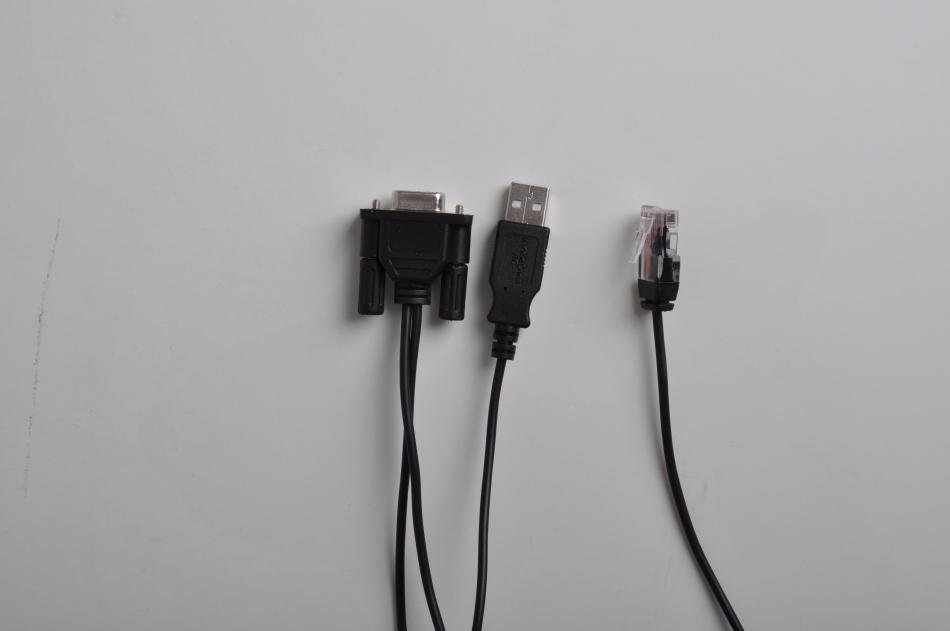

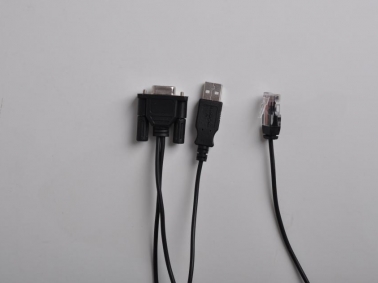

Length of signal-power supply cable
3m
Maximum dimensions (WxHxD)
164.5mm x 35mm x 77mm
Weight
350g (without a cable)
Guarantee
12 months
