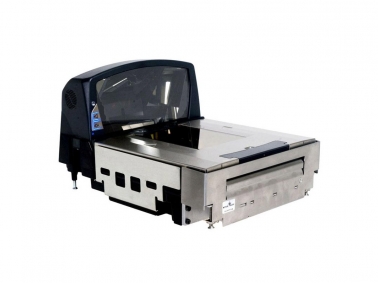

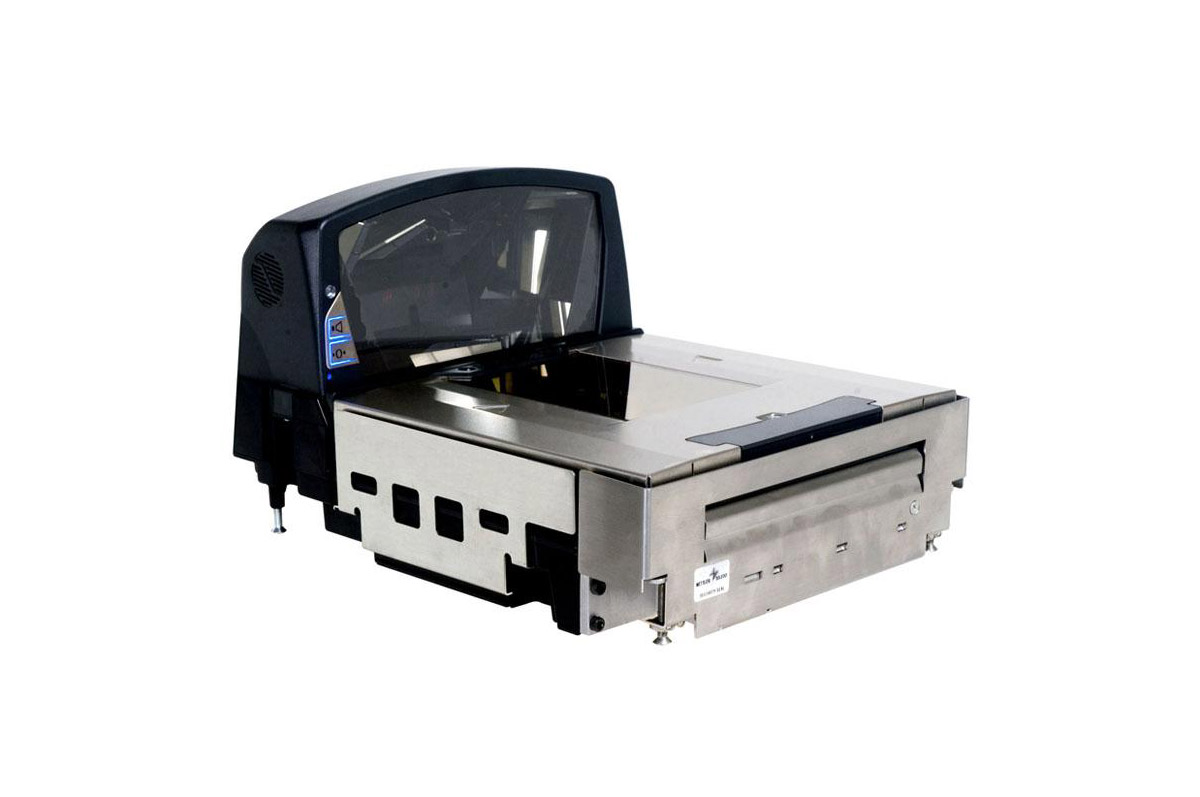

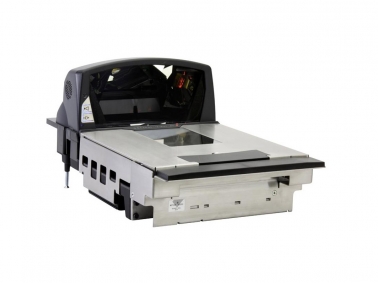

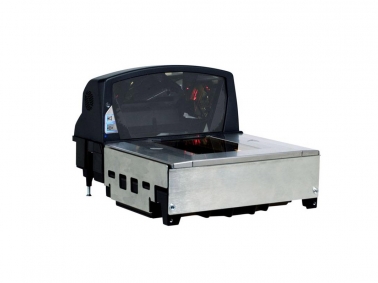

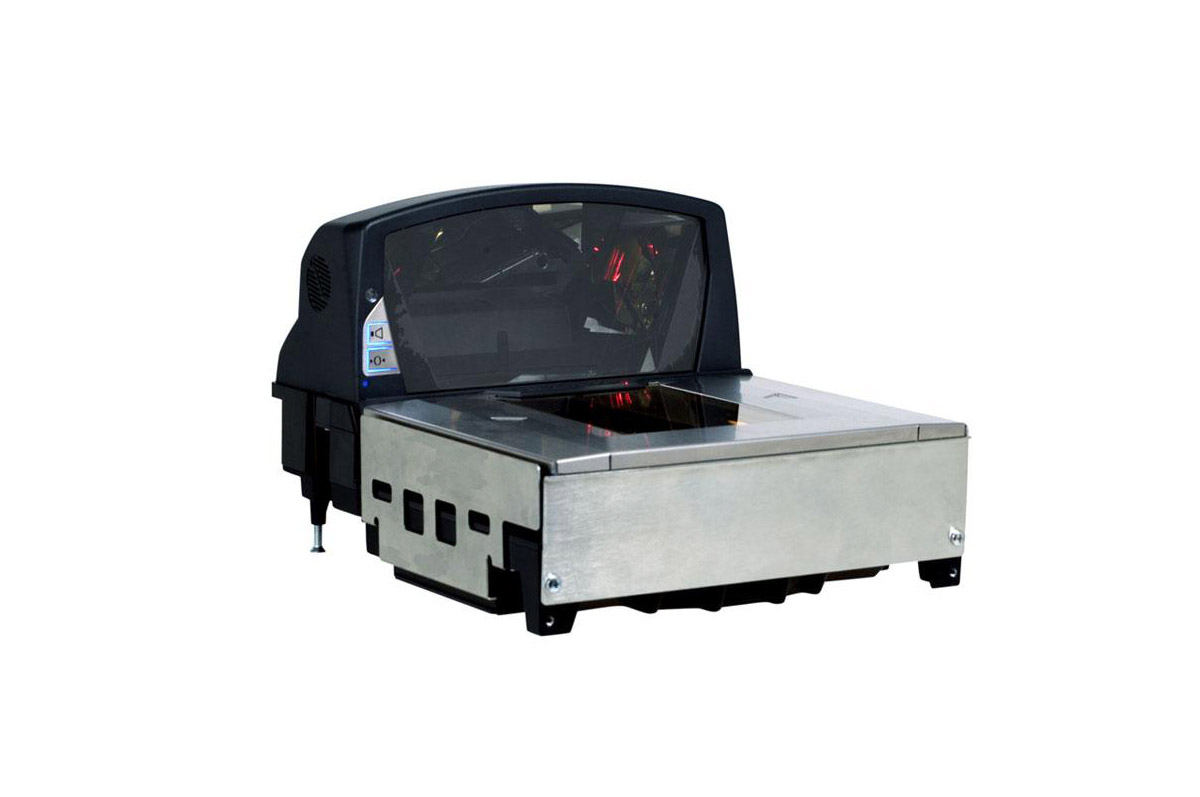

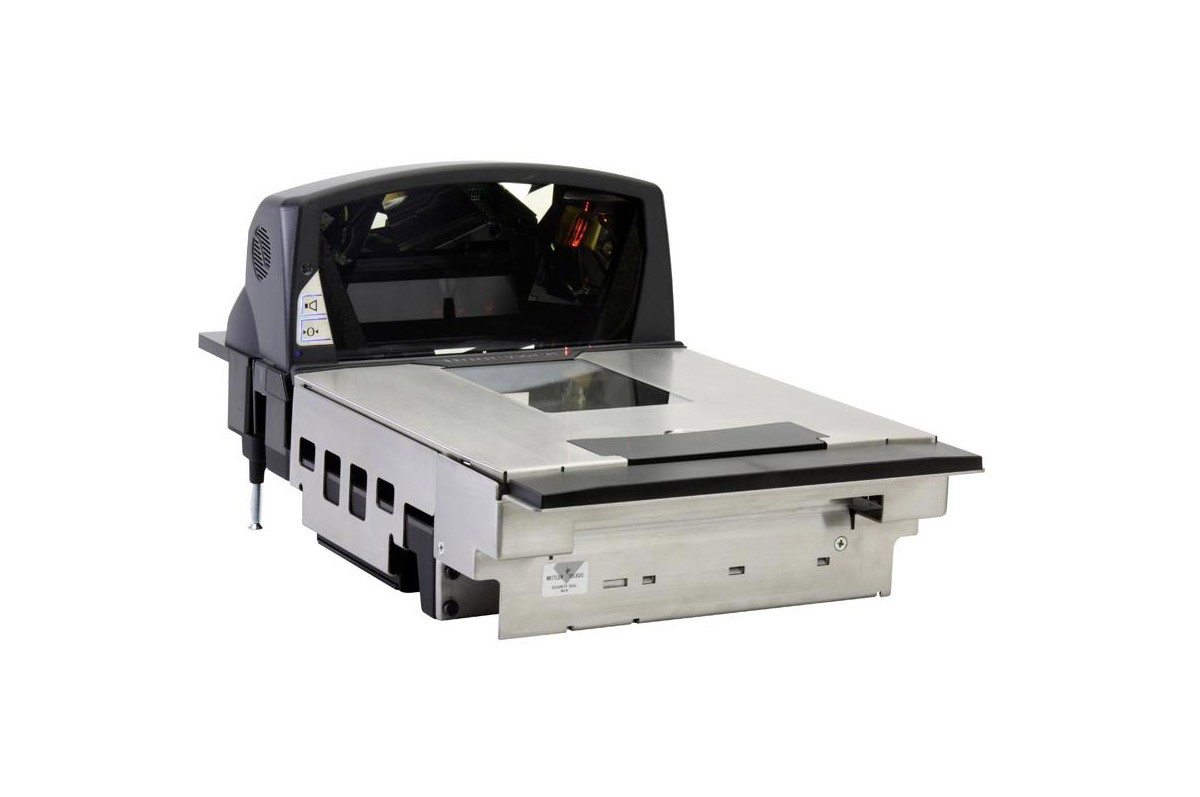

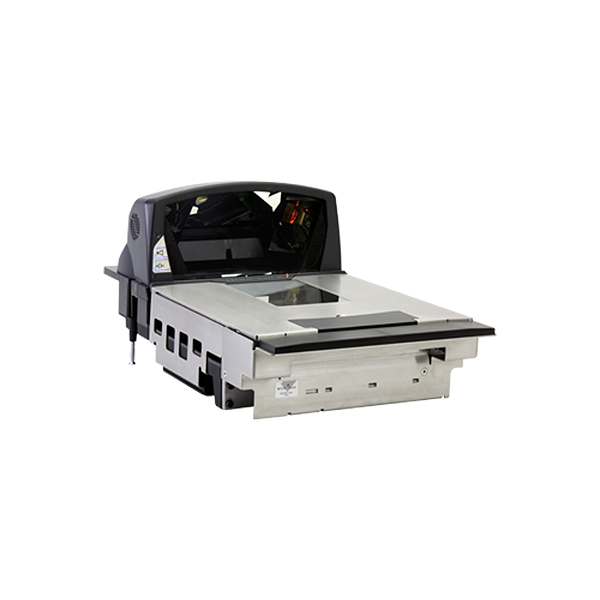

Honeywell Stratos 2400

Honeywell’s Stratos® 2400 5-sided, 360°-bioptic scanner/scale increases productivity in demanding, high-volume seated environments where shorter vertical towers are required, and poor quality and highdensity bar codes are prevalent. Independent scanning planes and a modular design lower maintenance costs and ensure continuous operation.

Colour option
Honeywell Stratos 2400

Even better reading performance has been achieved by changing the layout of the scanning lines of the vertical module and the 32-bit processor. StratosSPHERE decoding software minimizes the necessity of correct code orientation. It has an unprecedented ability to read codes of poor quality, high density and damaged or even torn codes.

It's also equipped with a numeric StratosSCOPE indicator, informing you about the current status of the reader, and an antenna that deactivates EAS security.

The most important product features

  • 5-sided, 360°-Scanning
  • StratosSYNCTM Independent Scanning Planes
  • reconstruction of damaged and torn codes
  • scanning speed: 6 000 scans/s.
  • label deactivation (EAS system)
  • reading optimization by changing the layout of the scanning lines in the vertical module
  • 6-pin socket for connecting the power supply to prevent inverse connection 5/12 V (3 pins in 2200)
  • additional serial port
  • possible integration with the scale
  • multi-interface
  • scale sockets located on one side of the scanner
  • gapless connection between the cover with glass and the tower

Options avaiable

  • stainless steel housing with Diamonex hardened glass
  • RS or USB interface
  • optional with AWG scale
Producer
Honeywell
Reader type
  • built-int
  • laser / bioptic
Scanning template / number of scanning lines or area
54 (horizontal: 38, vertical: 16)
Multi-direction code reader
yes
Reading speed (number of scans / per second)
5400 scans/s.
Minimum code's contrast
35%
Reading
Code read / other options
1D
Reading range for typical 13 mil UPC (0.33 mm) codes
  • horizontal: 0 cm – 10 cm
  • vertical: 0 cm – 21,6 cm
Triggering readout
automatic
Signalling readout
  • sound
  • light
Use (motion increase)
high
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
trade (customer service), shops, showrooms (+++)
Physical features
Operational temperature (℃)
0℃ to +40℃
Dimensions (mm)
  • 2420 (scanner + scale): 399 x 292 x 100 x130 mm
  • 2421 (scanner only): 399 x 292 x 100 x 130 mm
  • 2422 (scanner only): 353 x 292 x 100 x130 mm
  • 2430 (scanner + scale): 508 x 292 x 100 x 130 mm
  • 2431 (scanner only): 508 x 292 x 100 x 130 mm
Weight (g)
  • 2421: 7200 g
  • 2422: 6800 g
  • 2431: 8200 g
Interfaces
USB, RS232
Multi-interface
yes
EAS cooperation
yes
Options available
Colour options
dark
Essential / unique features
AUX port (RS232) for connecting a handheld scanner or other peripherals
