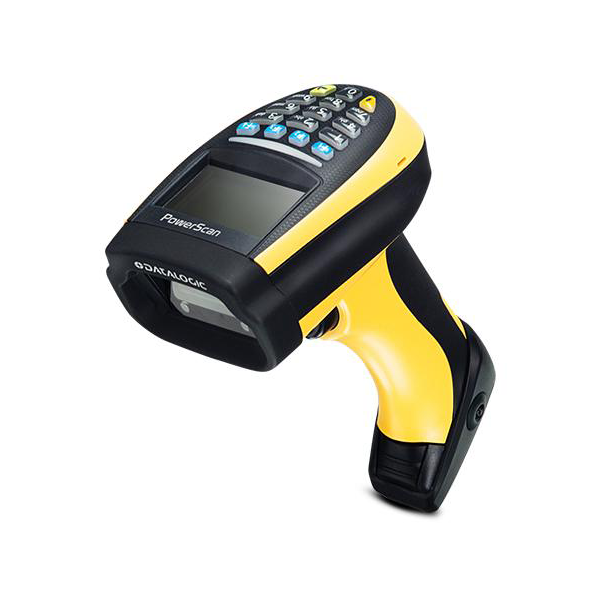

Datalogic PowerScan PM9500

Wireless version of the PowerScan PM9500 scanner by Datalogic, distinguished by high reading efficiency of 1D and 2D codes. Thanks to the Datalogic's patented technology, Star 2.0, PowerScan PM9500 provides wireless communication within a range of up to 30 m from the base, increasing the user's work comfort and eliminating the restrictions associated with the use of cables.

Colour option
Datalogic PowerScan PM9500

The durability and comfort of the PowerScan PM9500 reader is ensured by a sealed housing (IP65) and a ergonomically-contoured pistol grip. Thanks to the strong structure, the scanner is resistant to severe weather conditions (working temperature: from -20℃ to +50℃), shocks and multiple falls on a concrete surface from a height of 2 m.

An important advantage of the PowerScan PM9500 is the way of activating the scanner to work and the way of signaling about the correct reading of the code. By using the Motionix technology, the device automatically switches between the manual and automatic operating mode of the reader, depending on the user's activity, and the Datalogic 3GL (Three Green Light) technology ensures - through a green dot on the code and LED signaling on the top and in the scanner handle - the user about correct code reading. These functionalities are ideal for rooms with high noise levels and where the speed of the scanner is a necessity.

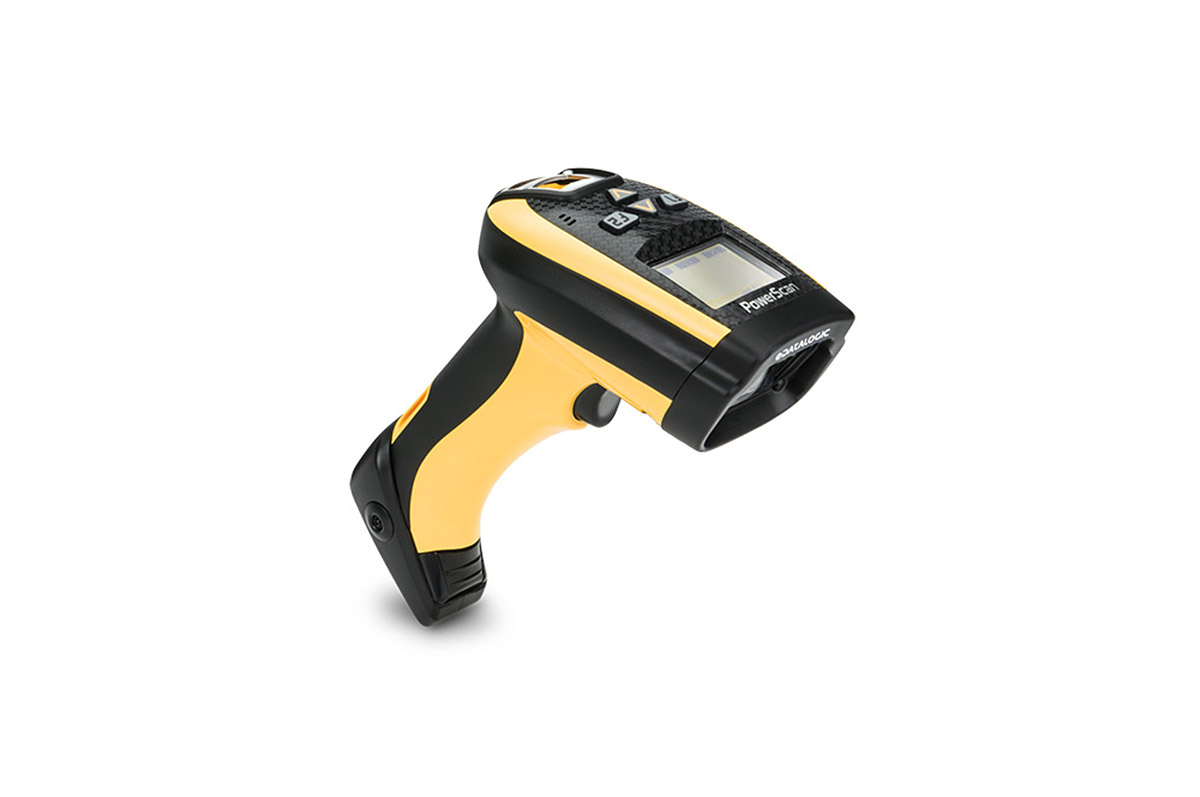

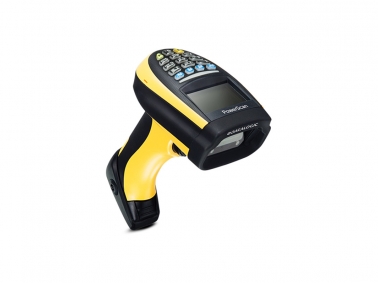

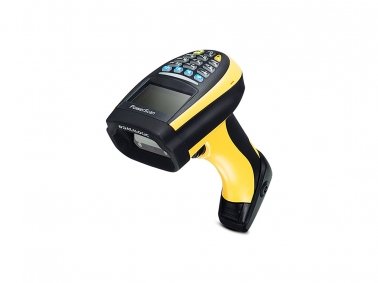

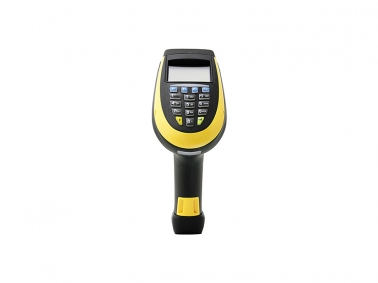

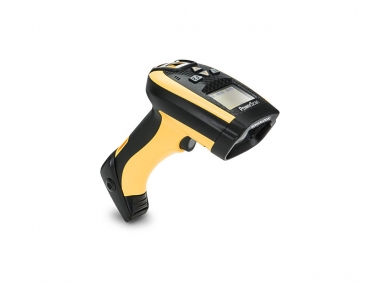

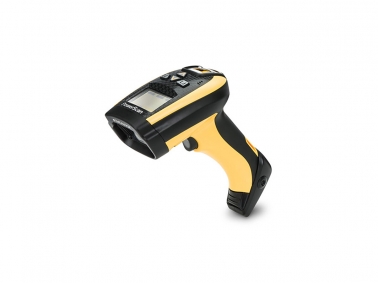

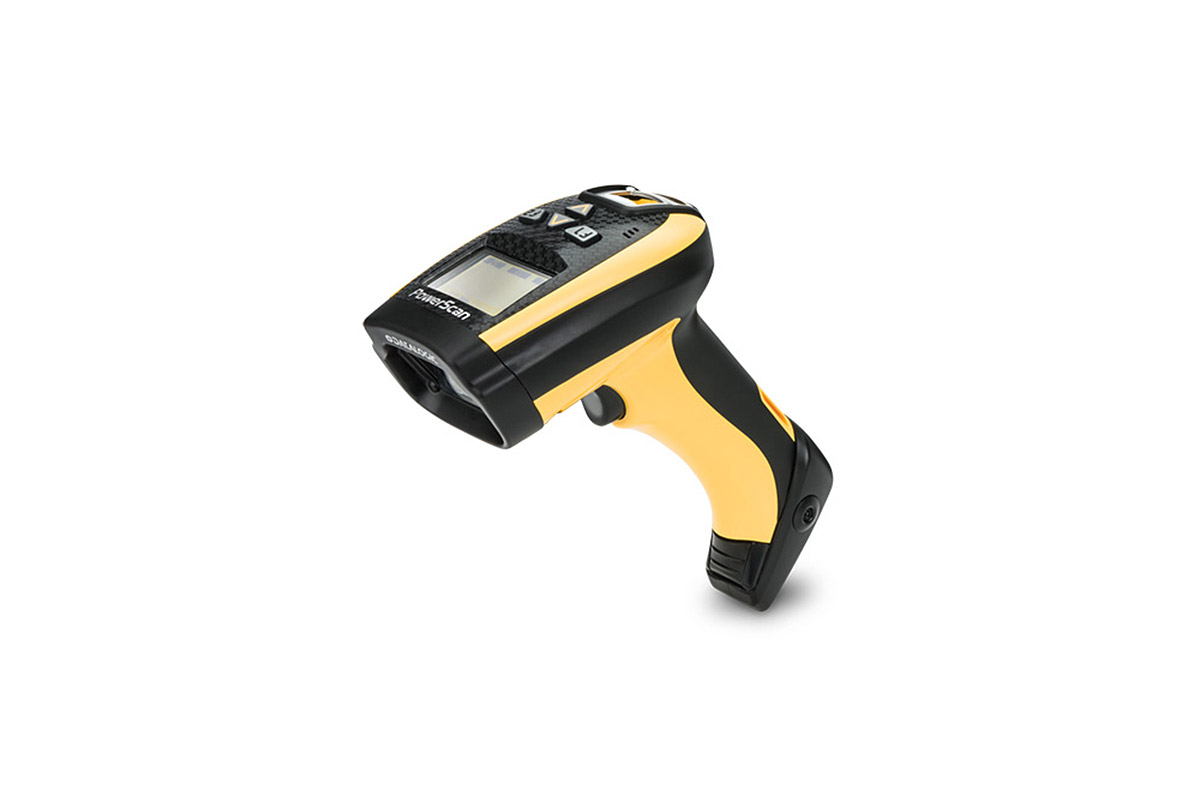

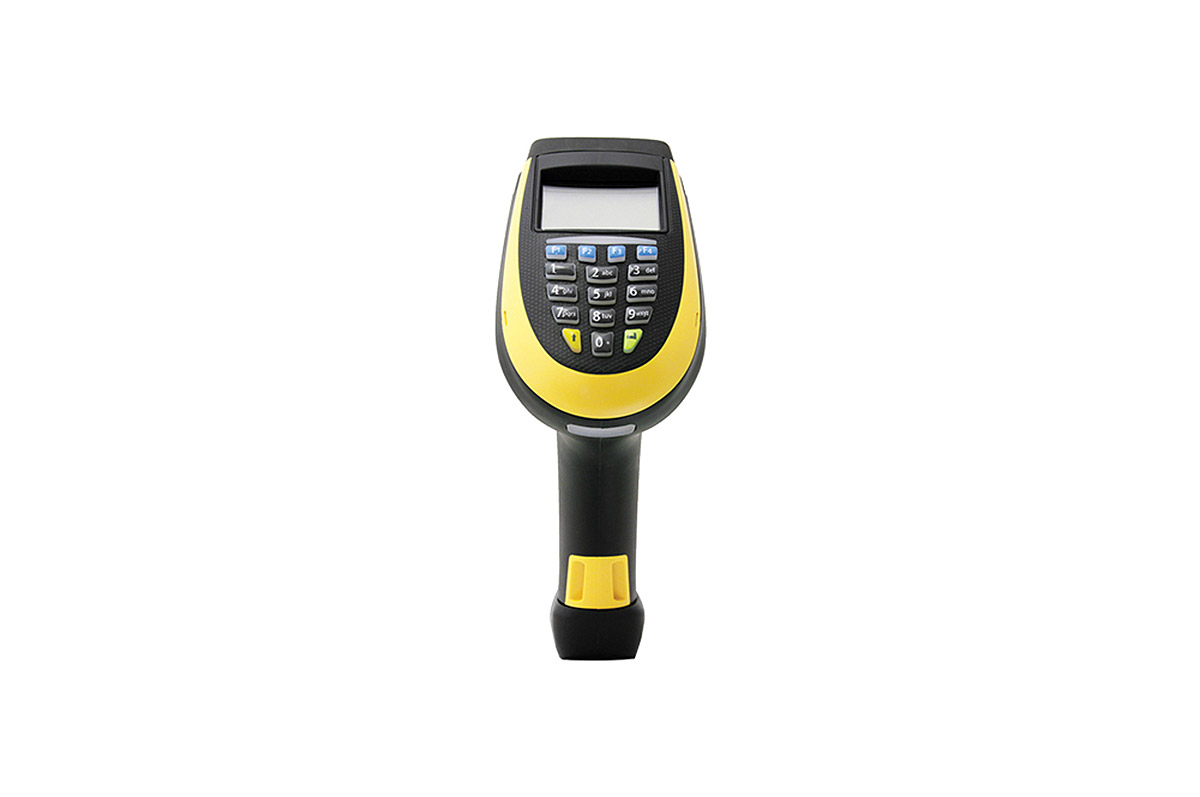

The device is available in a version with 4 buttons and a 16-key keyboard.

The most important product features

  • reading every type of 1d and 2d code
  • intuitive 4-point sight with a central button for scanning single codes
  • illumination of the reading field with white, warm light
  • Datalogic Motionix and Datalogic 3GL technologies
  • wireless radio communication with an operating range of up to 100 m
  • network operation based on RS485 or Ethernet: up to 255 readers simultaneously in the "on-line" mode with the use of 16 communication bases
  • 32 operators working on the same base station
  • PM9500 scanners can work in a compatibility with the bases of earlier PowerScan series models (BC8XX0; BC9XX0)
  • PM9500 series scanners have a replaceable reading window protective glass
Producer
Datalogic
Reader type
  • cordless
  • area imager
Scanning template / number of scanning lines or area
  • area: PM9500 - (864 x 544)
  • area: PM9500-HP/PD9530-HPE - (1280 x 1024)
Multi-direction code reader
yes
Minimum code's contrast
15%
Reading
Code read / other options
  • 1D
  • PDF417
  • 2D
  • DPM
  • taking picteres
  • codes from LCD monitors, mobile device displays, etc.
  • high-density codes / "very small format" codes (HD version)
  • vehicle registration certificate codes (Aztec)
Reading range for typical 13 mil UPC (0.33 mm) codes
  • 4 - 45 cm (PM950013)
  • 3 - 60 cm (PM9500-HP)
Triggering readout
  • manual
  • automatic
Signalling readout
  • sound
  • light (3GL)
Aimer, green spot, frame aimer
Green Spot, frame aimer
Use (motion increase)
high
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • production (+++)
  • logistics (warehouses, sorting plants, etc.) (+++)
  • industry (+++)
Physical features
Tightness class / industrial standard
IP65
Resistance / falls on concrete
  • 50 x 2 m (scanner)
  • 50 x 1,2 m (base)
Operational temperature (℃)
-20℃ to +50℃
Dimensions (mm)
  • 212 x 110 x 74 mm (scanner)
  • 240 x 108 x 95 mm (base)
Weight (g)
  • 380 g (scanner PM9500)
  • 400 g (scanner PM9500-D)
  • 414 g (scannerPM9500-DK)
Interfaces
USB, KBW/PS2, RS232, Ethernet
Multi-interface
yes
Wireless connection
Wireless range
Radio Star: 100 m (low speed) or 50m (high speed)
Battery operation at full charge
10 h
Number of scans at full charge
30 000
Memory - number of data stored
yes
Automatic Batch Mode option
yes
Inventory Batch Mode option
yes
Options available
Colour options
black-yellow

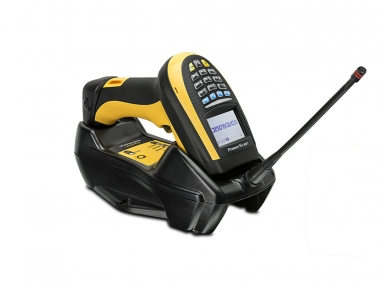

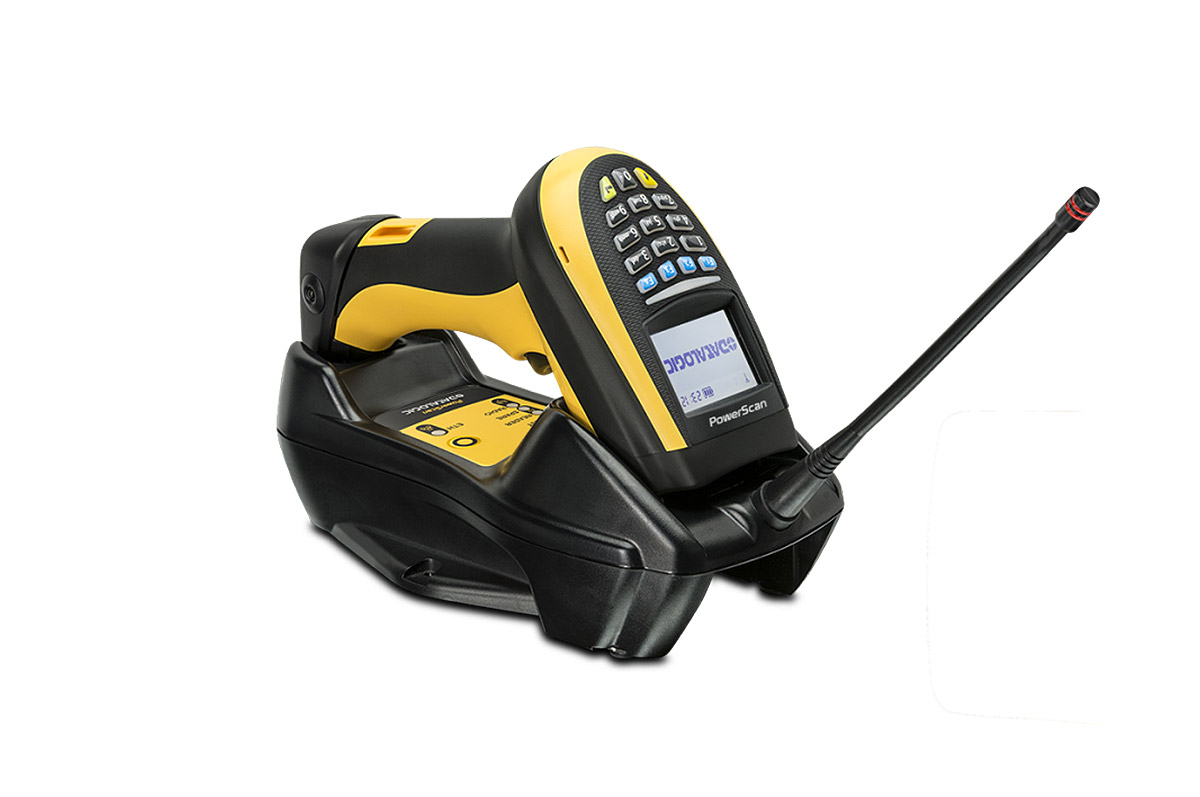

Possible base / base option
base
Essential / unique features
  • possibility of connecting up to 32 scanners to one base
  • possibility of connection via Ethernet

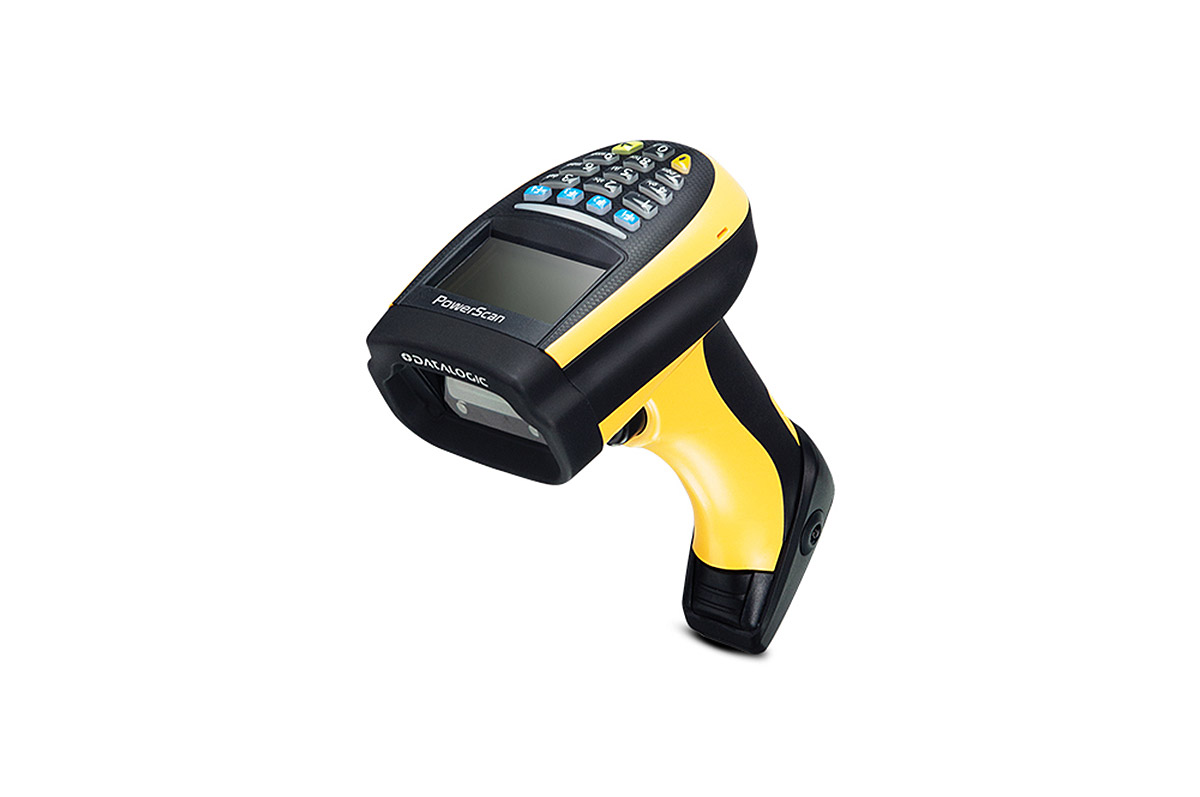

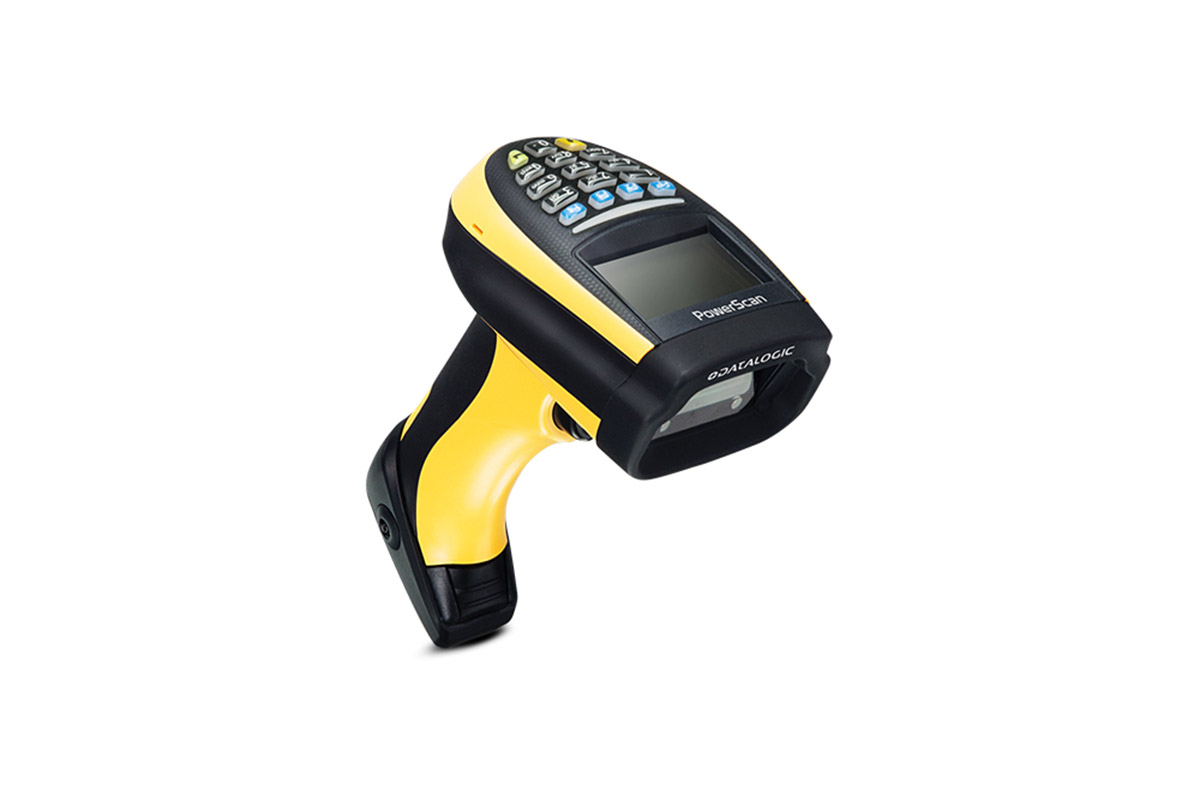

  • available version with display (32x96 pixels) and 4-key or 16-key alphanumeric keyboard
  • point-to-point and multi-point communication
  • vivid-colored housing
  • Motionix technology
