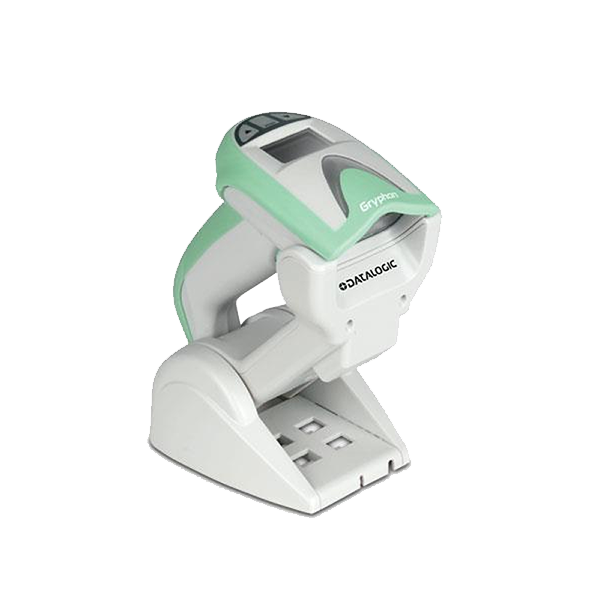

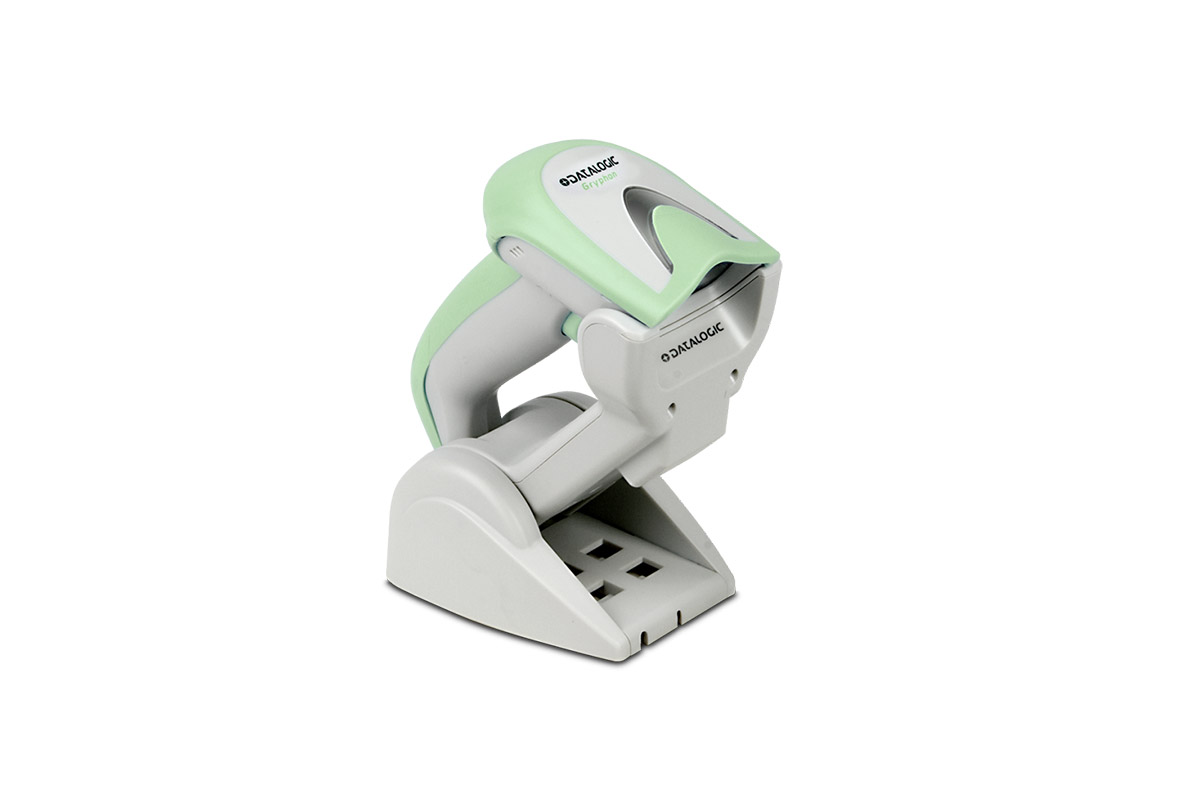

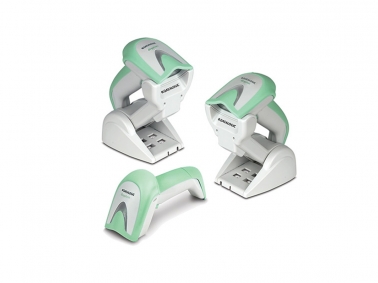

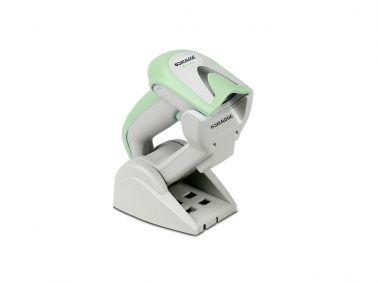

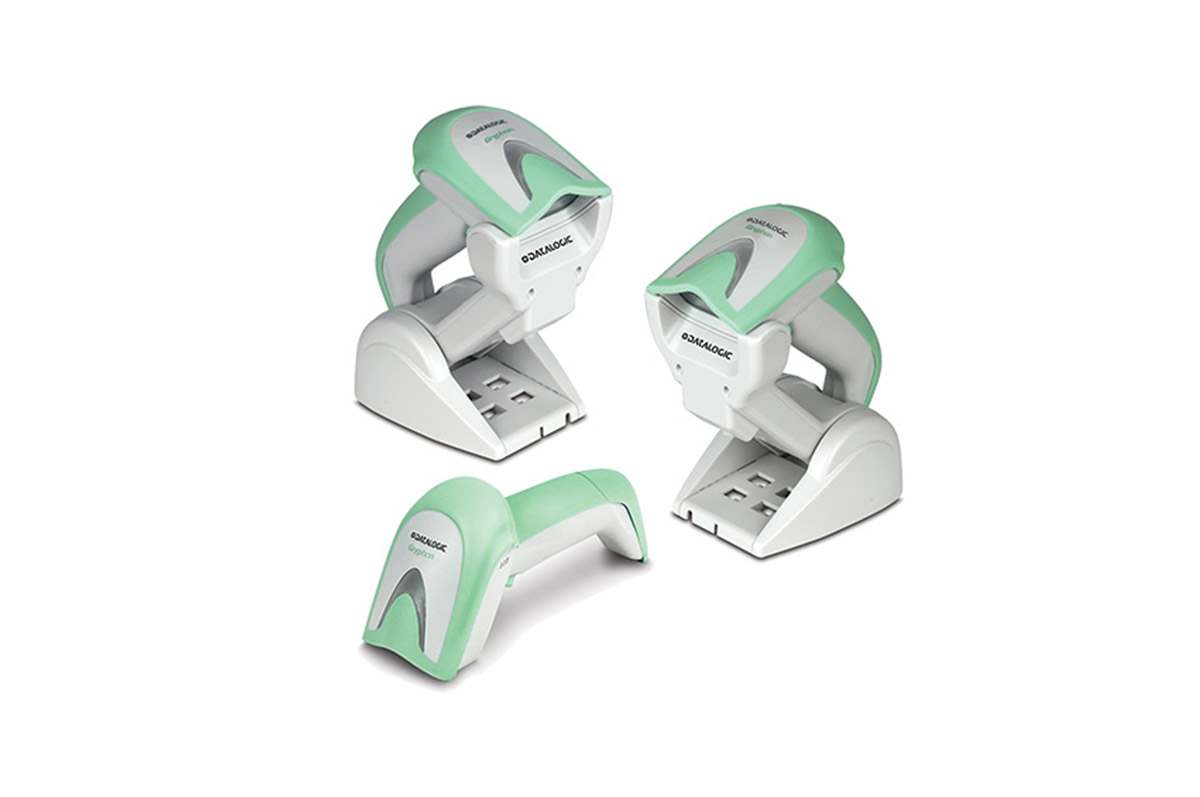

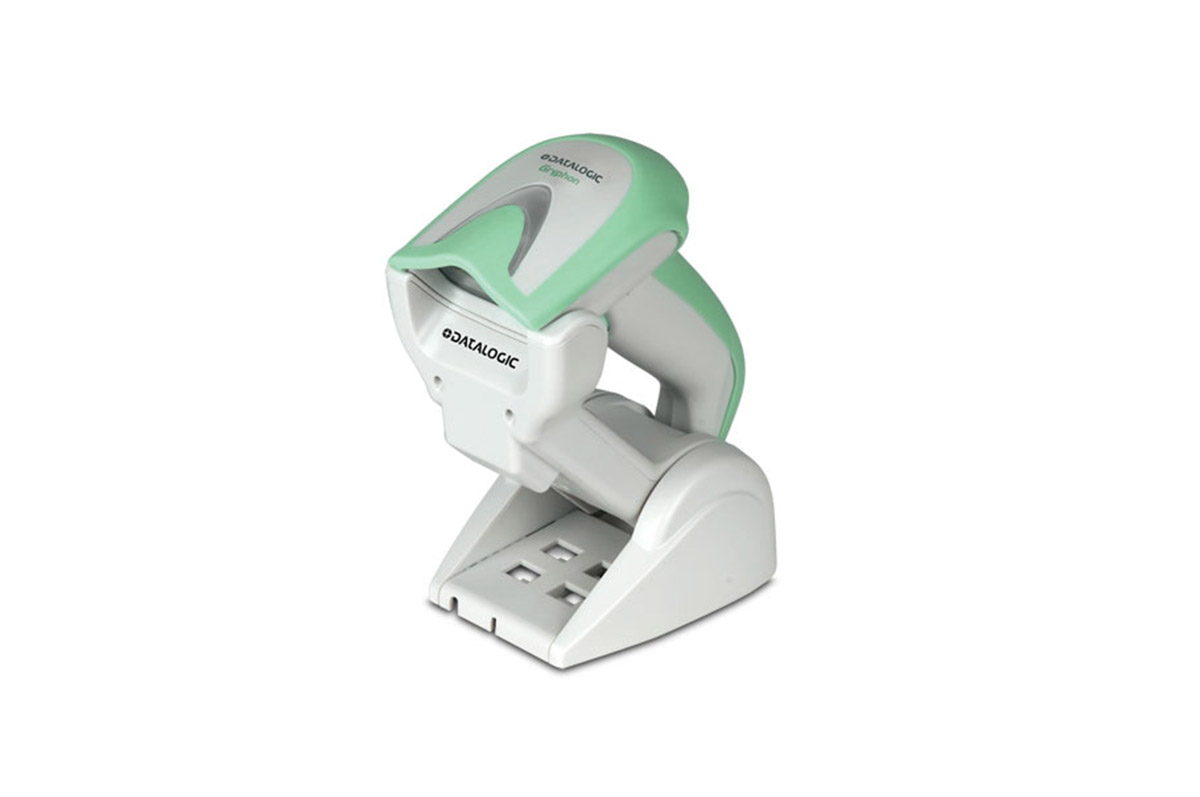

Datalogic Gryphon GM4400-HC

Datalogic Gryphon GM4100-HC is a handheld, 1D and 2D linear imager code scanner for the healthcare industry. It has a special plastic-rubber casing prepared for disinfection and resistant to aggressive cleaning agents, and the antibacterial surface used contains compounds that inhibit the growth of microorganisms.

Colour option
Datalogic Gryphon GM4400-HC

The Gryphon GM4400-HC scanner has a wide scanning angle that allows you to read wider codes. An important advantage is also the way of notifying about the correct reading of the code. Through the green reading indicator (Green Spot technology), the user receives information about the correctly read code. This functionality is especially important in an environment where we cannot use sound signals.

The scanner also allows you to read codes from LCD screens and displays of mobile devices. In addition, it has the function of scanning images ("taking pictures") and saving them as an image file. Thanks to the Datalogic's patented technology, Radio Star, Gryphon provides wireless communication within a range of up to 30 m from the base, increasing the user's work comfort and eliminating the restrictions associated with the use of cables. The Batch Mode function allows you to save about 1200 codes in the RAM memory. The long-lasting lithium-ion battery allows for 66 000 scans when fully charged.

Gryphon GM4400-HC is the perfect solution for work in medical facilities, laboratories and pharmacy.

The most important product features

  • plastic-rubber housing for easy disinfection
  • antimicrobial surface containing compounds that inhibit the growth of microorganisms rozwój drobnoustrojów
  • housing compliant with ISO22196 and JISZ 2801 standards
  • omni-directional reading of 1D, PDF417, 2D codes
  • Green Spot technology - informing the user about the correctly read code
  • Motionx technology
  • intuitive - 4-point aiming system
  • wireless radio communication - Star - with an operating range of up to 30m
  • point-to-point or point-to-multi point data transmission
  • Batch Mode function (storing approx. 1200 codes in the memory)
  • 60 000 scans when fully charged
  • multi-interface: (possibility of interchangeable use of USB, KBW, RS 232 interfaces by changing the cable)

Available options:

  • light grey-green housing
  • interfaces: KBW/PS2, RS232, USB

Additional info:

  • configurable via Aladdin
  • available drivers: OPOS, USB-COM Driver, JavaPOS Driver
Producer
Datalogic
Reader type
  • cordless
  • area imager
Scanning template / number of scanning lines or area
area (752 x 480)
Multi-direction code reader
yes
Minimum code's contrast
25%
Reading
Code read / other options
  • 1D
  • PDF417
  • 2D
  • taking pictures
  • codes from LCD monitors, mobile device displays, etc.
  • vehicle registration certificate codes (Aztec)
Reading range for typical 13 mil UPC (0.33 mm) codes
1,5 – 40 cm
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple option
Signalling readout
  • sound
  • light
Aimer, green spot, frame aimer
Green Spot, crosshair + 4 dots
Use (motion increase)
  • low
  • medium
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • pharmacies (+++)
  • health care (medical facilities, laboratories) (+++)
Physical features
Tightness class / industrial standard
IP52
Operational temperature (℃)
0℃ to +50℃
Dimensions (mm)
  • 181 x 71 x 100 mm (scanner)
  • 186 x 99 x 56 mm (base)
Weight (g)
  • 245 g (scanner)
  • 246 g (base)
Interfaces
USB, KBW/PS2, RS232
Multi-interface
yes
Wireless connection
Wireless range
Radio Star (30m)
Number of scans at full charge
60 000
Memory - number of data stored
1200
Inventory Batch Mode option
yes
Options available
Colour options
grey-green
Possible base / base option
base
Essential / unique features
  • housing that is antibacterial and suitable for cleaning with chemicals used in healthcare
  • possibility of connecting up to 16 scanners to one base
  • Motionix technology
